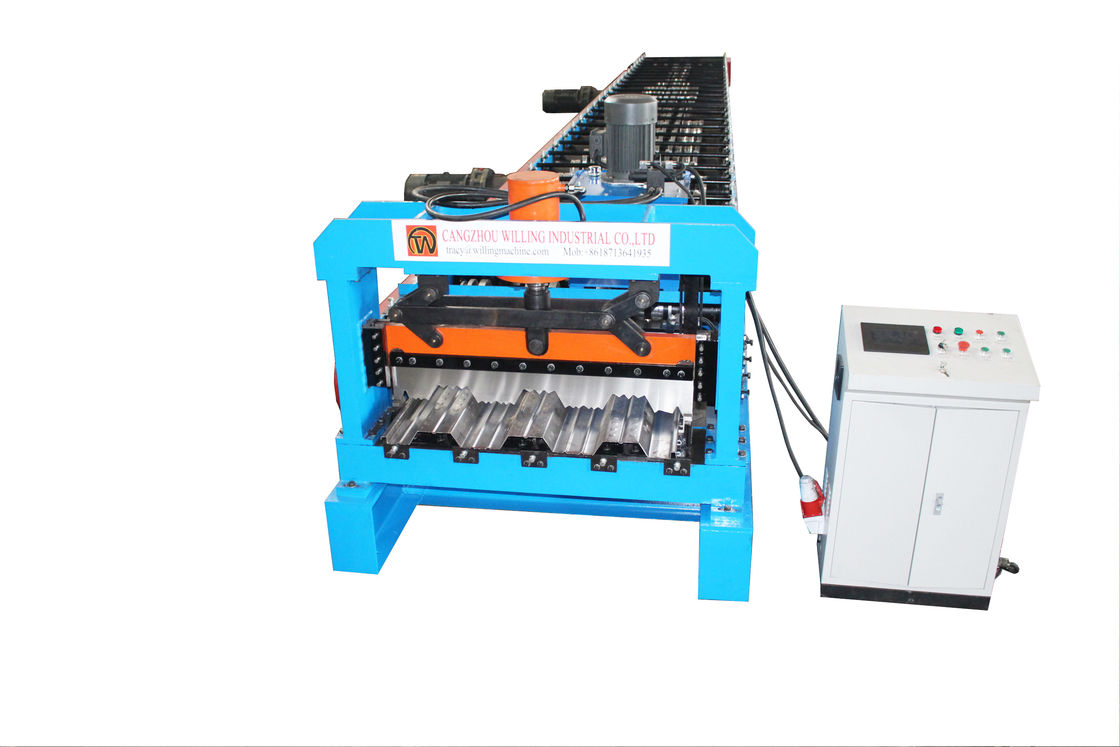

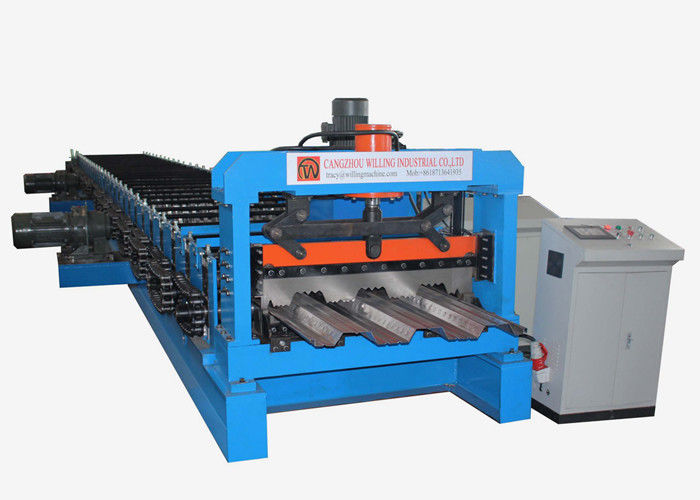

Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine

chain transport roll forming line

panasonic control roll forming line

roll forming line machine chain transport

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Chain Transport Roll Forming Line Metal Steel Sheet Decking Floor Production Machine

Szczegóły produktu

Nazwa produktu:

Linia do formowania podłóg z blachy stalowej

Stacje rolkowe:

45 # stal z twardą powłoką chromowaną

Gwarancja:

1 rok

Typ cięcia:

Cięcie hydrauliczne

Zdolność produkcyjna:

8-12m/min

uformowana szerokość:

700-1250mm

Typ marketingu:

Zwykły produkt

Podstawowe komponenty:

PLC

Podkreślić:

chain transport roll forming line

panasonic control roll forming line

roll forming line machine chain transport

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Metal Steel Sheet Decking Floor Production Roll Forming Line

It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.

Specification

Diameter of roller	Φ90mm
Middle plate	20mm
transport	chain
Voltage	380V 60HZ 3 PH or customized by your request
Motor power	11kw+11kw
Pump station power	3kw/(5.5kw hydraulic motor)
Transducer power	11.5kw
Cutting system	Hydraulic cutting by pillar type
Material of cutting	Cr12
Control system	PLC brand :Delta / Panasonic
Control system	Length error : ±1mm
work speed	8-12m/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
