Name: Automatic Steel Floor Deck Roll Forming Machine High Precision
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pokład podłogi
Price: 26,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki podłogowej >

Automatic Steel Floor Deck Roll Forming Machine High Precision

automatic steel floor deck roll forming machine

0.8mm steel floor deck roll forming machine

high precision metal deck roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

pokład podłogi

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Automatyczna linia produkcyjna maszyn do formowania rolek stalowych o wysokiej precyzji

Wymiar (L*W*H):

6500*1300*1100

Materiał wału:

CR12

Typ kontroli:

System PLC

Materiał rolkowy:

45# kuta stal

Waga:

5000 kg

Woltaż:

380 V 50 Hz 3 fazy

8-12m/min:

8-12m/min

Grubość rolki:

0,3-0,8 mm

Szerokość karmienia:

1000 mm

Podkreślić:

automatic steel floor deck roll forming machine

0.8mm steel floor deck roll forming machine

high precision metal deck roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

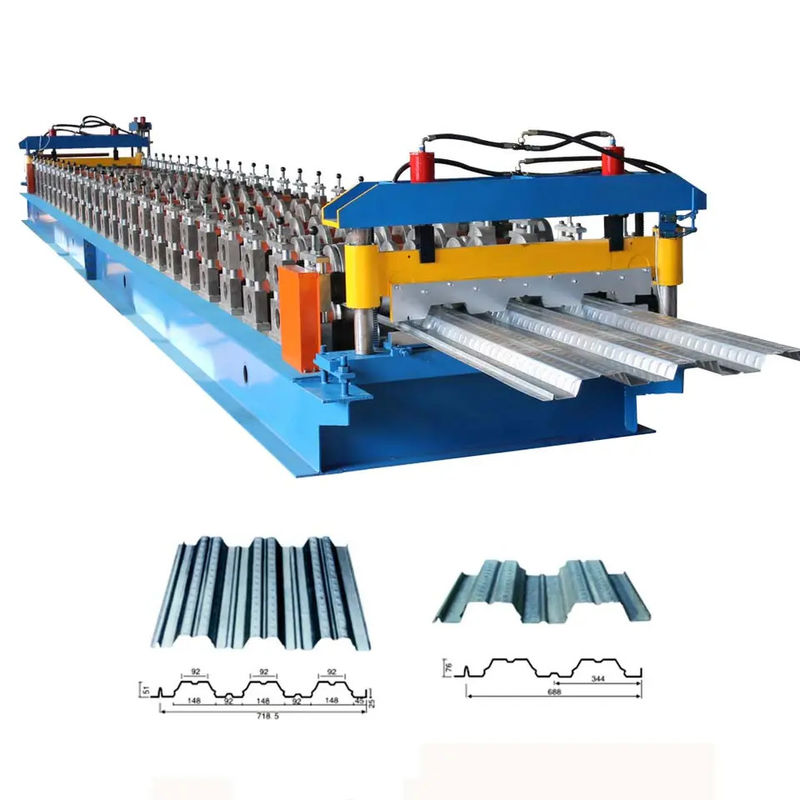

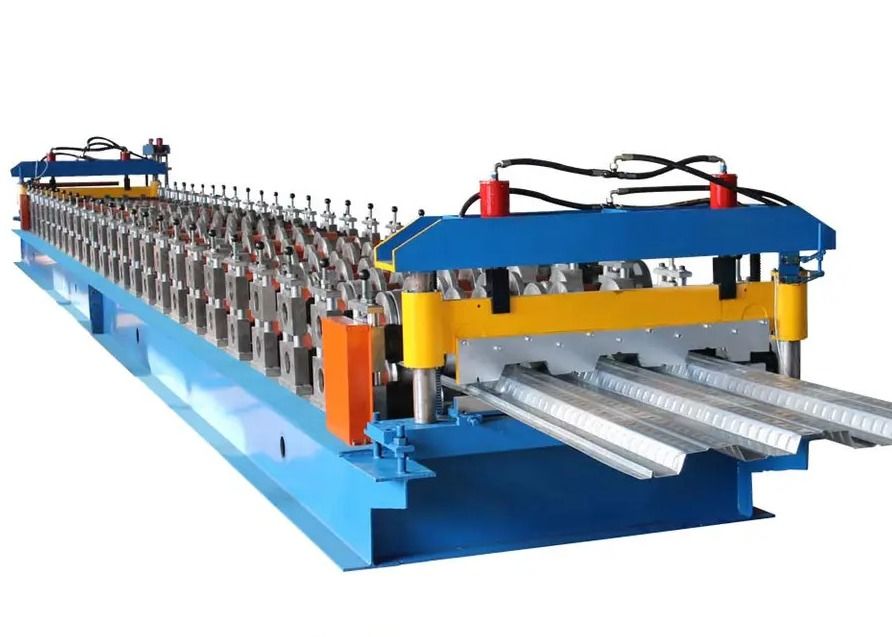

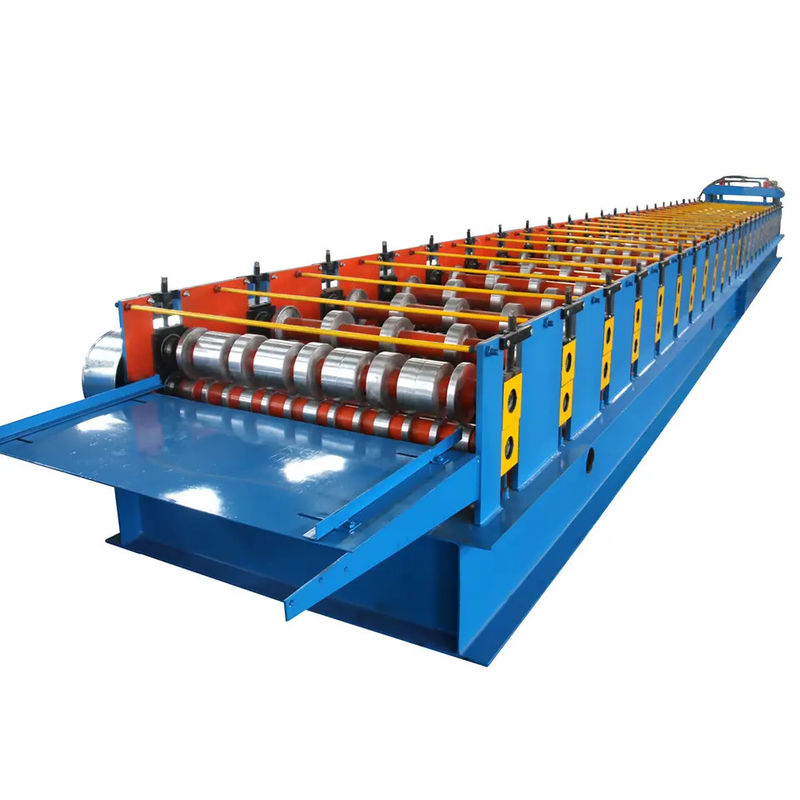

Automatic High Precision Steel Floor Deck Roll Forming Machine Production Line

Automatic High Precision Steel Floor Deck Roll Forming Machine Production Line

Usage:

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature:

Ensure stability , precision and lifetime.

Our company's products are available inall price ranges. Different functions andconfigurations have different product pricesIt depends on your needs and budget. Inthis way,l can recommend the most suitableproducts to you.

Specification

Main Forming machine	Forming steps	22 steps
	Shaft diameter	80mm
	Machine stand	Individual Arch Plate
	Machine frame	steel plate welded
	roller material	45#steel
	shaft material	45# steel with quenching and tempering
	Work speed	0-15m/min
	Transport	By chains
	Power of main machine	22kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	131.51.2m
	Machine weight	About 6.5T
	Machine color	Yellow and blue(as required)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
