Name: Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Mega żebro
Price: 16,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachówek >

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

highway guardrail making machine

guard rail roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Mega żebro

Skontaktuj się z nami

Poproś o wycenę

Metal Roofing Wall Roof Roll Forming Machine Mega Rib Horizontally Install

Szczegóły produktu

Nazwa produktu:

USA Mega Rib Panel Metalowe pokrycia dachowe Ściany i panele dachowe Maszyna do formowania rolek dac

Surowiec:

Galvalume, ocynkowane, PPGI, aluminium

Stan:

Nowy

Tworzenie prędkości:

20 - 30 m/min

System sterowania:

PLC

Gwarancja:

1 rok

Podkreślić:

highway guardrail making machine

guard rail roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

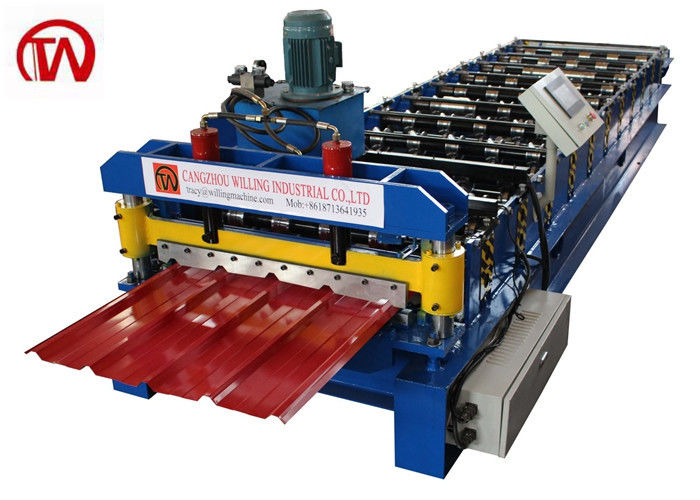

USA Mega Rib Panel Metal Roofing Wall And Roof Panels Roof Roll Forming Machine

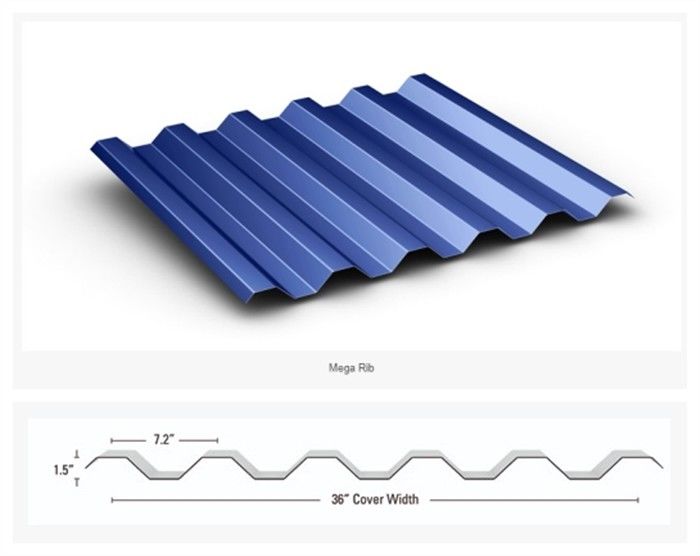

Mega-Rib is a 7.2 exposed fastener panel that provides optimum strength and spanning capabilities. Mega-Rib is a metal roof and wall panel that is equally well suited for industrial and commercial applications. Installed horizontally, Mega-Rib's bold ribs provide a hard to beat architectural statement.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	20-30 GA
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	19 Raws
5	Dimension (LWH)	6500 mm1500 mm1500 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
