Name: High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Multi - Cor/Tektura falista
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

High Strength Roof Roll Forming Machine Multi - Cor Metal Roof Making Machine

metal roof panel machine

roofing sheet roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Multi - Cor/Tektura falista

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Mini panel żebrowy Metalowy profil z niskim żebrem do maszyny do formowania rolek dachowych paneli ś

Surowiec:

Galvalume, ocynkowane, PPGI, aluminium

System sterowania:

PLC

Używać:

Dach i ściana

Wymiar (L*W*H):

7000 mm*1500 mm* 1500

Moc (w):

4 kW

Podkreślić:

metal roof panel machine

roofing sheet roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

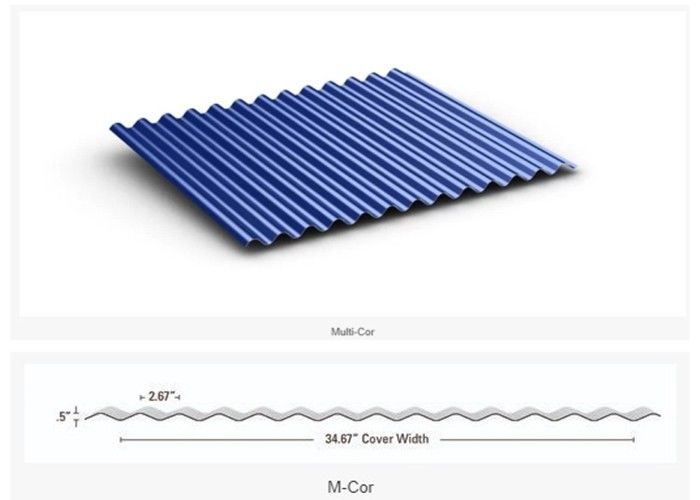

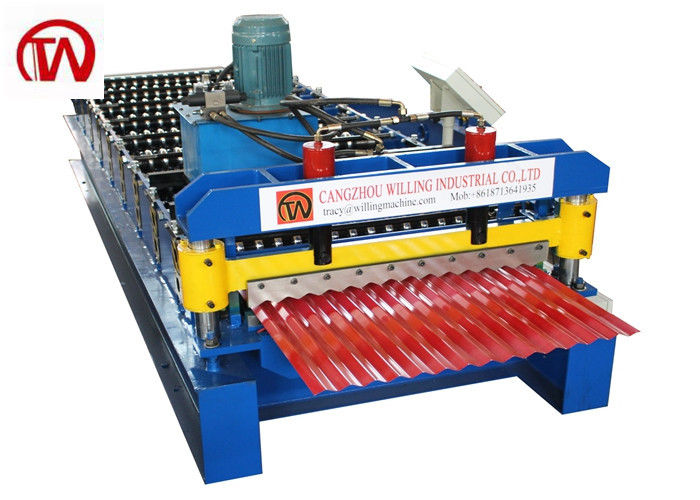

Multi - Cor Panel Metal Wall Profile Corrugated Panel Roof Roll Forming Machine

While quickly communicating their high-strength performance attributes, corrugated metal panels are reminiscent of yesteryear and simpler times. Consistent, rounded corrugations make Multi-Cor ideal panels to achieve nostalgic appeal whether installed as a wall, roof or interior accent panel.

For added aesthetic appeal, horizontal installations showcase corrugated design capabilities. Multi-Cor is similar in design, with M-Cor offering a more subtle rib height and configuration. We can design and produce different rib height, different width for the corrugated profiles roll forming machine.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	18-32 GA
3	Working Speed	20-30 m/min ( not including the cutting time)
4	Roller Station	13 Raws
5	Dimension (LWH)	6500 mm1500 mm1500 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5KW
9	Hydraulic Station Power	4 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
