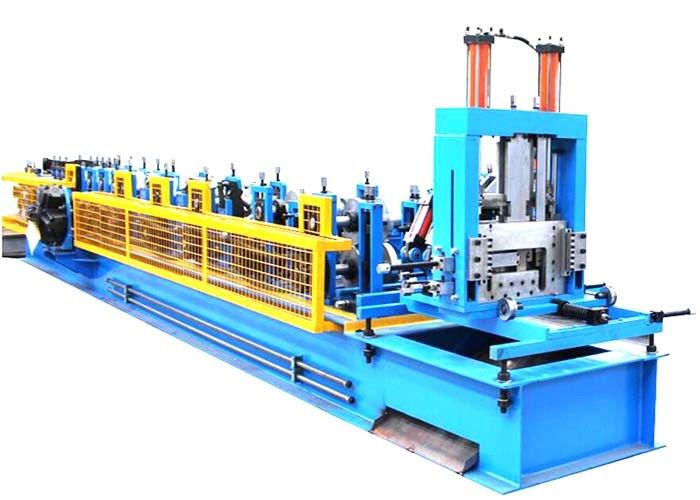

Name: Manual Exchangeable CZ Purlin Roll Forming Machine High Cutting Accuracy
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Ręczna maszyna do płatwi Z
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Manual Exchangeable CZ Purlin Roll Forming Machine High Cutting Accuracy

z purlin roll forming machine

purlin roll former

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Ręczna maszyna do płatwi Z

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Ręczna wymienna metalowa płatew dachowa Z płatwiowa maszyna do formowania rolek

Grubość materiału:

1 mm - 3 mm

Typ:

Stalowa rama i maszyna do płatwi Z

Zapewniona obsługa posprzedażna:

Inżynierowie dostępni do obsługi maszyn za granicą, wsparcie online, wsparcie techniczne wideo, bezp

Zdolność produkcyjna:

10-25 m/min

Typ płytek:

ocynkowana, lekka maszyna do formowania rolek płatwi cz

Podkreślić:

z purlin roll forming machine

purlin roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Manual exchangeable Metal Roofing Purlin Z Purlin Roll Forming Machine

This model is manual adjusted the different sizes. There are many scales and spacers on the shaft .According the scale and change the counterpart spacer, then can produce the different sizes. Compare with the full automatic c purlin roll forming machine, need more time , more familiar operation.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	20- 25 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	6000 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	11 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	360V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Z Purlin Size

Manual Exchangeable CZ Purlin Roll Forming Machine High Cutting Accuracy 0

Manual Exchangeable CZ Purlin Roll Forming Machine High Cutting Accuracy 1

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Manual Exchangeable CZ Purlin Roll Forming Machine High Cutting Accuracy 2
