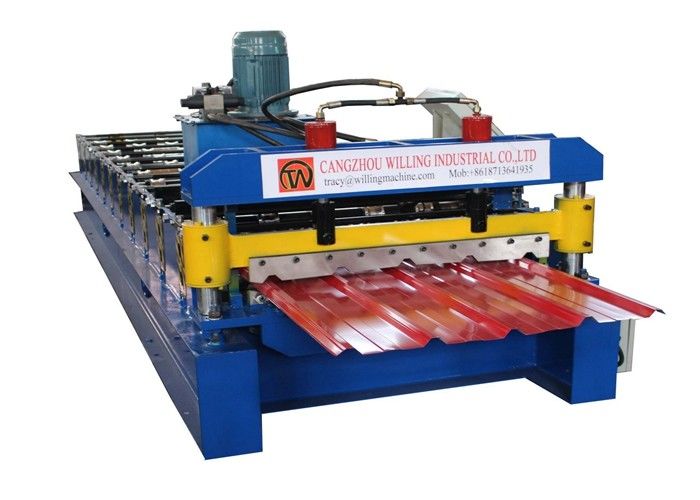

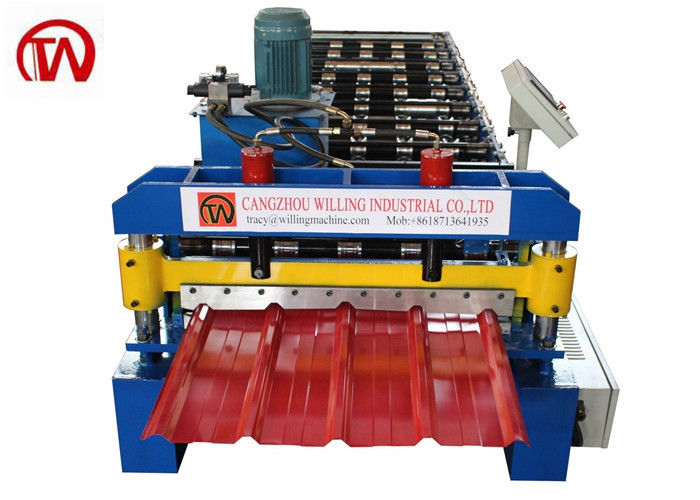

5 Ribs Roof Roll Forming Machine 11 Rows Trapezoidal Sheet Roll Forming Machine

roofing sheet roll forming machine

roofing sheet manufacturing machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou willing

Orzecznictwo:

CE,ISO

Numer modelu:

840

Skontaktuj się z nami

Poproś o wycenę

5 Ribs Roof Roll Forming Machine 11 Rows Trapezoidal Sheet Roll Forming Machine

Szczegóły produktu

Grubość:

0,3-0,6 mm

Wymiar (L*W*H):

5500 mm * 1250 mm * 1200 mm

Nazwa produktu:

Maszyna do formowania rolek dachowych z 5 żebrami z blachy trapezowej 11 rzędów

Tworzenie prędkości:

8-15 m/min

szerokość materiału:

1000 mm

Typ płytek:

Dach

Podkreślić:

roofing sheet roll forming machine

roofing sheet manufacturing machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

5 Ribs Trapezoidal Sheet Wall Roof Roll Forming Machine 11 Rows

Application

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance

Equipment Detailed Parameters:

No.	Item	Description
1	Coil	Width:1000mm
2	Forming speed	8-10 m/min (not including cutting time)
3	Roller Stations	11stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Material of Main Shaft	45# steel finishing machining and then slack quench processed
6	Material of Shaft	70 mm 45#steel forged
7	Driven Motor Power	3KW
8	Hydraulic Station Power	3 KW
9	Hydraulic Station Pressure	12.0 Mpa
10	Electrical Control System	DELTA PLC
11	Dimension (LWH)	5500mm1250mm1200mm
12	Material of Cutter	GCr12
13	Driving Mode	single chain 0.6 inch
14	Material Thickness	0.3-0.6mm
15	Power Supply	380V, 60HZ, 3 PHASES
16	Cutting accuracy	±2 mm

1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all willing people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
