Name: Maxiframe External Panel Roll Forming Machine PLC Control Stable Performance
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Stój i śledź
Price: 40,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do tworzenia rolki z kołkami i ścieżkami >

Maxiframe External Panel Roll Forming Machine PLC Control Stable Performance

ridge cap roll forming machine

metal stud roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Stój i śledź

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania ścian zewnętrznych Maxiframe Maszyna do formowania kołków i gąsienic

Wymiar (L*W*H):

6500mm*1500mm*1500mm

Surowiec:

Galvalume, ocynkowane

Prędkość pracy:

30 m/min - 50 m/min

Kolor:

Customed

Dostawa:

30 dni roboczych

Podkreślić:

ridge cap roll forming machine

metal stud roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

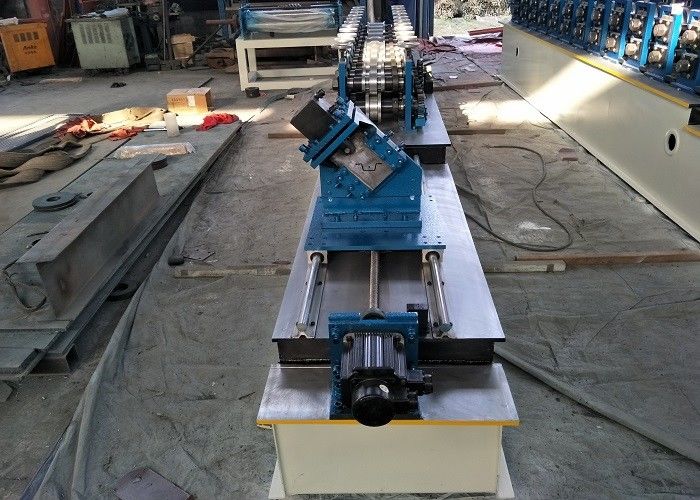

Maxiframe External Wall Framing Machine Stud and Track Roll Forming Machine

The MAXIframe External Wall Framing System is a lightweight steel framing system for external wall construction. The system has been expertly engineered to offer builders a more efficient, versatile and cost-effective design option than traditional external wall framing construction methods.

MAXIframe incorporates standard Rondo 92mm Steel Studs as the main framing and includes two major profiles; MAXIjamb, a Jamb Stud and MAXItrack, a Slotted Deflection Head Track as well as complementary cleats to provide a simple, yet solid structure.

Profile

Maxiframe External Panel Roll Forming Machine PLC Control Stable Performance 0

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	20-30 GA
3	Working Speed	30-50 m/min
4	Roller Station	14 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Maxiframe External Panel Roll Forming Machine PLC Control Stable Performance 1
