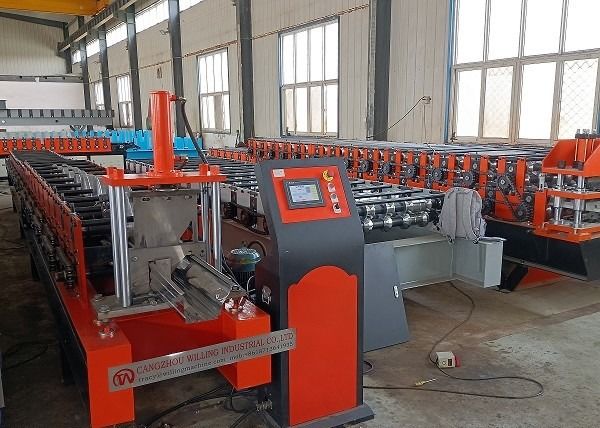

USA hot selling Downspout Roll Forming Machine
The gutter molding equipment is a gutter molding equipment developed and designed by our company according to the needs of the mainstream gutter market in the USA.
This equipment has high output efficiency. The gutter board produced by it has a flat surface, no scratches, easy installation, light volume, and low site requirements. It is one of the best-selling versions in the US market.
| No. |
Item |
Description |
| 1 |
Coil |
Galvalume, Galvanized |
| 2 |
Raw Material Thickness |
0.6 mm - 1.0 mm |
| 3 |
Working Speed |
8-10 m/min |
| 4 |
Roller Station |
18 Stations |
| 5 |
Dimension (L*W*H)
|
8500 mm*800 mm*1200 mm |
| 6 |
Machine Weight |
8000 KG |
| 7 |
Electrical Control System
|
PLC (can be customized)
|
| 8 |
Drive Motor Power
|
5.5 KW |
| 9 |
Hydraulic Station Power
|
4 KW |
| 10 |
Power Supply
|
380V, 60HZ, 3 PHASES
|
| 11 |
Cutting Accuracy
|
± 2 mm
|
| 12 |
Driving Mode
|
Single Chain 1 inch
|
| 13 |
Material of Shaft
|
50 mm 45#steel forged
|
| 14 |
Material of Roller |
45# Steel Finish Machining, Plated Hard
|
Application
This produc has the advantages of easy installation, short construction period, beautiful appearance, light weight but high strength.so it's widely used in roofs and walls of factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters, etc.
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms and delivery
40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
