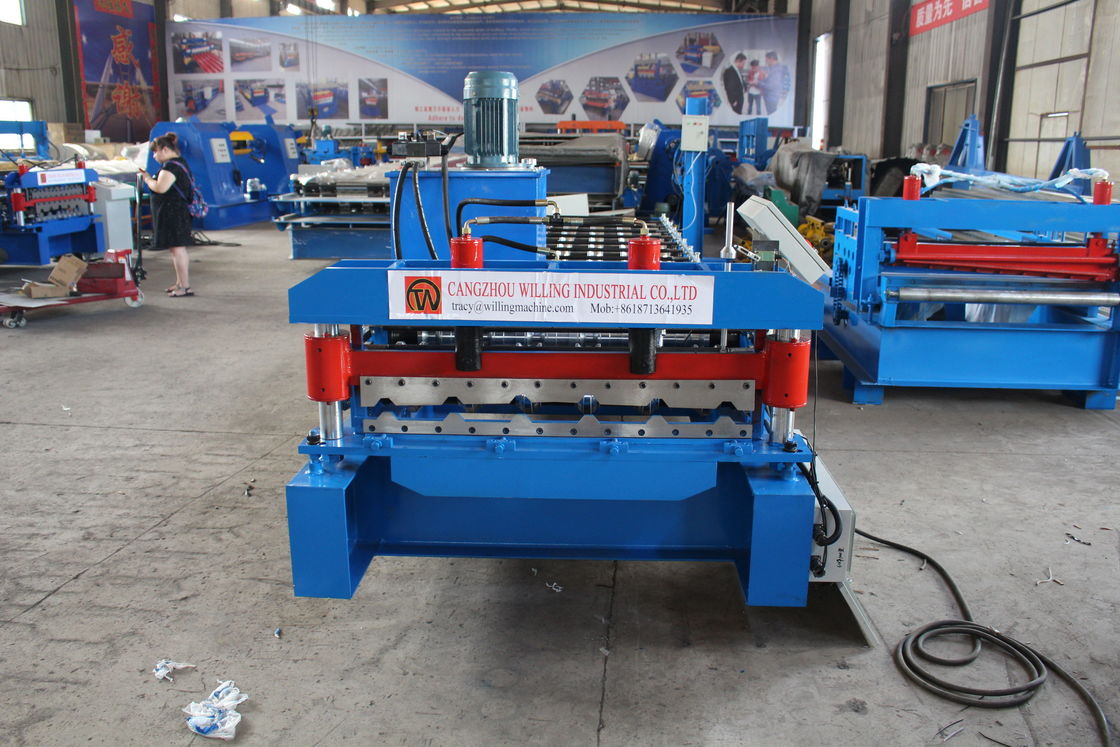

19.3-215-860 IBR Profile 0.3-0.8 Thick Color Coated Roof Tile Roll Forming Machine
19.3-215-860 IBR Profile 0.3-0.8 Thick Color Coated Roof Tile, sometimes referred to as single skin IBR profile sheets are often used for side cladding on buildings. The design of 19.3-125-860 gives a robust profile roofing sheet strength. Incorporating 5 profiles of 215mm pitch across the sheet width and 19.3mm profile height, these are superb roofing sheets for home or commercial use. Some users prefer the appearance of these galvanised IBR profile sheets as it has lower and fewer profiles. It’s made from a galvanised steel strip and gives 1000mm actual width cover when lapped.
Galvanised finishes are often favoured for traditional projects where no colour finish is required.
Profile
Specification
| No. |
Item |
Description |
| 1 |
Coil |
Galvalume, Galvanized, PPGI, Aluminum |
| 2 |
Raw Material Thickness |
0.3-0.8mm |
| 3 |
Working Speed |
20-30 m/min ( not including the cutting time) |
| 4 |
Roller Station |
12 Raws |
| 5 |
Dimension (L*W*H)
|
58000 mm*1200 mm*1100 mm |
| 6 |
Machine Weight |
4000 KG |
| 7 |
Electrical Control System
|
Delta PLC (can be customized)
|
| 8 |
Drive Motor Power
|
4KW |
| 9 |
Hydraulic Station Power
|
4 KW |
| 10 |
Power Supply
|
380V, 60HZ, 3 PHASES(can be customized)
|
| 11 |
Cutting Accuracy
|
±2 mm
|
| 12 |
Driving Mode
|
Single Chain 1 inch
|
| 13 |
Material of Shaft
|
70 mm 45#steel forged
|
| 14 |
Material of Roller |
45# Steel Finish Machining, Plated Hard
|
Components and Technical Specification
Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta
Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.
Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
