Name: Circular Arc Steel PPGI 0.3mm Roof Tile Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Łuk kołowy
Price: 16,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachówek >

Circular Arc Steel PPGI 0.3mm Roof Tile Roll Forming Machine

PPGI tile forming machine

PPGI roof tile roll forming machine

0.3mm roof tile roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Łuk kołowy

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek dachówek stalowych z okrągłym łukiem

Zapewniona obsługa posprzedażna:

Inżynierowie dostępni do serwisowych maszyn za granicą, obsługa techniczna wideo, wsparcie online, k

Surowiec:

PPGI/blacha ocynkowana

Woltaż:

380/50 Hz/3 fazy

System sterowania:

PLC

Waga:

2,2t

Zdolność produkcyjna:

10-15m/min

Grubość:

0,3 mm-0,8 mm

Moc:

5,5 kW

SZEROKOŚĆ SUROWCA:

1000 mm

Podkreślić:

PPGI tile forming machine

PPGI roof tile roll forming machine

0.3mm roof tile roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Circular Arc Steel Tile Roof Tile Roll Forming Machine

With more than 10 years work experience, our Circular Arc Steel Tile Roof Tile Roll Forming Machine has been exported to many countries.
Due to its durability, convenient operation, stable operation, good material, high hardness, and long operating life, the tile press is highly praised by a wide range of users.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	10-15m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension (LWH)	7500 mm1500 mm1500 mm
6	Machine Weight	5500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Arc steel plates are mainly used for roofs, walls, doors, large-span factories, warehouses, office buildings, villas, roof additions, air purification rooms, cold storage, shops, kiosks and temporary houses in industrial and commercial buildings.

Advantage

(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton.
(2) Feeding table
Receiving the raw material (steel sheet), it guarantees parallel and everything is uniformity.
(3) Machine material
welded steel frame structure of our machine, AC frequency conversion motor reducer drive, chain transmission, heat treatment works together In order to get high quality product
(4) Shearing system
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.
(5) Hydraulic system
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves works together to make sure the cuting is stability.

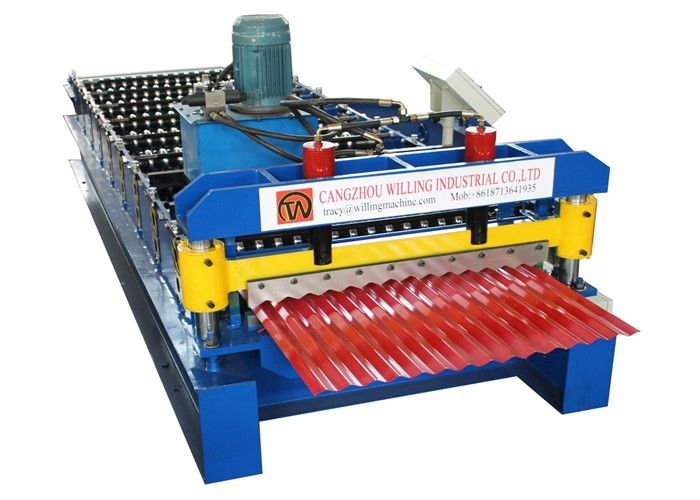

Circular Arc Steel PPGI 0.3mm Roof Tile Roll Forming Machine 0
