Name: Non Stop Cutting 0.5mm Rolling Shutter Door Slats Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Listwa migawki
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

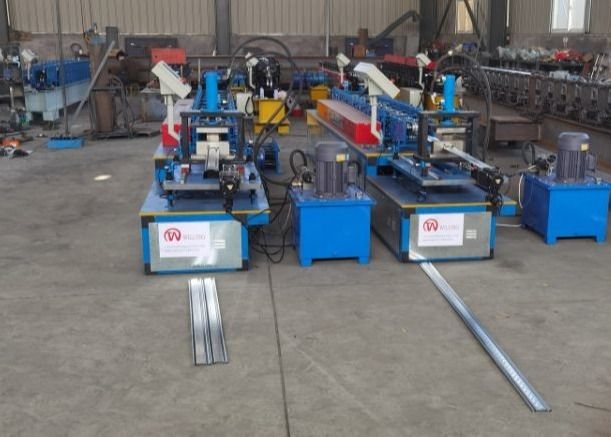

Non Stop Cutting 0.5mm Rolling Shutter Door Slats Roll Forming Machine

rolling shutter door slats roll forming machine

0.5mm rolling shutter door slats roll forming machine

gl shutter roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Listwa migawki

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek z nieprzerwanym cięciem listew drzwiowych

Surowiec:

Galvalume, ocynkowane, PPGI

Prędkość pracy:

20 m/min - 30 m/min

Grubość materiału:

0,5 mm - 1,0 mm

Woltaż:

380 V 50 Hz 3 fazy

Stan:

Nowy

Kolor:

zgodnie z żądaniem

Waga maszyny:

3,5 tony

Twardość surowca:

Q235

Moc:

3kW

Podkreślić:

rolling shutter door slats roll forming machine

0.5mm rolling shutter door slats roll forming machine

gl shutter roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

25 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Non stop cutting Shutter Door Slats Roll Forming Machine

Non stop cutting Shutter Door Slats Roll Forming Machine ,the service life of cutting blades exceeds 2 million times and The blade is fixed by bolts ,so it is easy to replace.

This machine Can make the roller shutter size 39mm, 42mm, 55mm, 77mm and 95mm . According to customer's required profile drawing or samples.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.5mm - 1.0 mm
3	Working Speed	15-30 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
6	Machine Weight	3.5 tons
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 1 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

the shutter door can improve the satisfaction of high-performance logistics and clean places, and save energy, improve the effect of air conditioning, high-speed automatic closing, improve efficiency, and create an ideal and comfortable working environment. Fast rolling doors are widely used in food, textiles, electronics, machinery, pharmaceuticals, printing, supermarkets, shopping malls, cold storage, warehousing, logistics, chemistry, packaging and other places. They are suitable for logistics channels, clean workshops, large-area openings, and windproof requirements. Higher-class indoor and outdoor doors.

Advantage

the shutter door can effectively isolate temperature, heat, insects, noise, and odor, and play a blocking role in the room, reduce energy consumption, and keep the indoor working environment clean.
