Heat Preservation Rock wool 4m/Min Sandwich Panel Roll Forming Machine

Heat Preservation Rock wool 4m/Min Sandwich Panel Roll Forming Machine

rockwool sandwich panel roll forming machine

heat preservation rockwool sandwich panel machine

4m/min sandwich panel roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Panel kanapki

Skontaktuj się z nami
Poproś o wycenę
Szczegóły produktu
Nazwa produktu:
Maszyna do formowania rolek płyt warstwowych z wełną mineralną 4 m / min
Prędkość pracy:
4m/min
Wymiar (L*W*H):
40000 mm* 2250 mm * 2500 mm
Tworzywo:
EPS lub wełna mineralna
Stan:
Nowy
Zapewniona obsługa posprzedażna:
Inżynierowie dostępni do obsługi maszyn za granicą, Wsparcie techniczne wideo, Konserwacja i naprawa
Podkreślić:

rockwool sandwich panel roll forming machine

,

heat preservation rockwool sandwich panel machine

,

4m/min sandwich panel roll forming machine

Warunki płatności i wysyłki
Minimalne zamówienie
1 zestaw
Cena
negotiable
Szczegóły pakowania
40' FLC
Czas dostawy
45 dni roboczych
Zasady płatności
L/C, T/T, D/A, D/P
Możliwość Supply
20 zestawów miesięcznie
Opis produktu

heat-preservation Rock wool Sandwich Panel Roll Forming Machine



heat-preservation Rock wool Sandwich Panel is made of asbestos and bonding materials. Suitable for heat preservation, heat insulation, sound insulation and electrical insulation. Thermal insulation board has unparalleled excellent performance of other similar boards. With its extremely low thermal conductivity, it has good heat preservation and heat insulation properties; with its extremely low water absorption, it has excellent waterproof and moisture-proof properties. ; With its high compressive strength, it has a large load-bearing performance; with its light material and simple construction, it is especially suitable for high-rise building strategies and large-scale modern construction of large-scale projects.





Specification



No. Item Description
1

Dimensions (L*W*H)

400000 mm*2250 mm*2500 m

2 Steel Thickness  0.25 mm- 0.8 mm
3 Sandwich Panel Thickenss 50 mm - 300 mm
4 Roller Station

Up layer: 13 rows.    Down layer: 14 rows

5

Working Speed

4 m /min

6

Power

Main motor power: 4kw . Flying saw power: 2*0.75kw

7

Total Power

                                   32 KW

8

Machine Weight

22 tons

9

Steel Coil Width

1000 mm   1200 mm  1250 mm

10

Hydraulic motor power

15 kw

11

Cutting Accuracy

±2 mm



Application

It can be widely used in various fields of engineering construction: in the external wall insulation of construction projects, inverted roof insulation and anti-seepage, floor radiation heating, etc., and can effectively reduce the load of high-rise buildings; water conservancy projects, such as reservoirs, channels, dams The heat preservation and heat insulation can prevent the foundation from thawing and cracking; the high-cold area roads, railways, and tunnels are insulated and anti-freeze treatment to prevent the foundation from thawing damage.





Advantage



Rock wool insulation board has the characteristics of fire prevention, heat insulation, sound absorption and noise reduction, non-corrosive, safety, and environmental protection.
Rock wool insulation board is made of natural volcanic rock, so it has the following characteristics: It has a high fire rating, will not stretch, shrink or deform in a fire, is resistant to high temperatures, and has a melting point higher than 1000°C. It is very stable in size. In a fire, no smoke or burning droplets/fragments are produced and no substances and gases harmful to the environment are released.

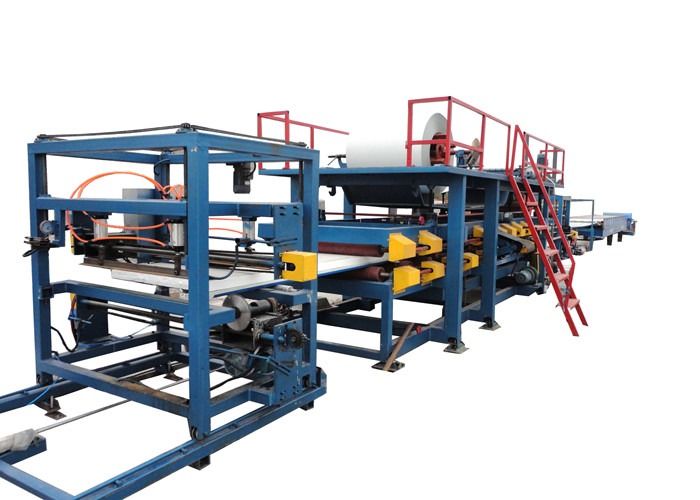

Heat Preservation Rock wool 4m/Min Sandwich Panel Roll Forming Machine 0
