Name: Three Layer 0.3mm Roof Sheet Forming Machine Plc
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Trzy warstwy
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

Three Layer 0.3mm Roof Sheet Forming Machine Plc

three layer roofing roll forming machine

0.3mm roof sheet forming machine

plc roof sheet forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou willing

Orzecznictwo:

CE,ISO

Numer modelu:

Trzy warstwy

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Opis produktu:

Trójwarstwowa maszyna do formowania rolek trapezowych i przeszklonych

Grubość:

0,3-0,8 mm

Materiał wału:

materiał to stal kuta 45 #

Wymiar (L*W*H):

2310*1750*1650mm

System sterowania:

PLC

Prędkość:

15-20 m/min

Woltaż:

380 V 50 Hz 3 fazy

Waga:

Moc silnika:

4KW

moc silnika pompy olejowej:

4KW

Podkreślić:

three layer roofing roll forming machine

0.3mm roof sheet forming machine

plc roof sheet forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Double Layer Trapezoid And Glazed Roof Roll Forming Machine

The components of the three-layer tile machine include: the color steel tile press machine, the PLC computer control system, the hydraulic pump station system, and the fully automatic post-shearing system. Equipment features: the color steel plate equipment adopts high-level automatic control software, color steel The tile press realizes production information management.
The entire unit automation control system adopts a highly integrated network to make the automation system perform better.
Automatic discharging, color steel tile press working procedure: mold installation and host test run are the same as above, and then turn on the air compressor, vacuum pump, extruder, tile cutter, feeder tile press, color steel tile press And wato conveyor, when parking, first stop the extruder, and then stop the rest of the equipment.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	231017501650mm
5	Main servo	4kw
6	Hydraulic station power	4kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The three-layer tile machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production are smooth and beautiful, uniform paint pattern, high strength, and durable. They are widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, Theaters and other rooms and walls.

Advantage

Our company's three-layer tile machine adopts the function of high-number pulse input. Because of the excellent high-number input performance, the AB phase anti-interference ability is strong. The fixed value interrupt function is also used to ensure accuracy.
One machine has multiple functions, which not only saves the floor space, but also greatly reduces the cost. The three-layer tile machine has a light structure and a reasonable design, which is especially suitable for customers with small sites and on-site construction.

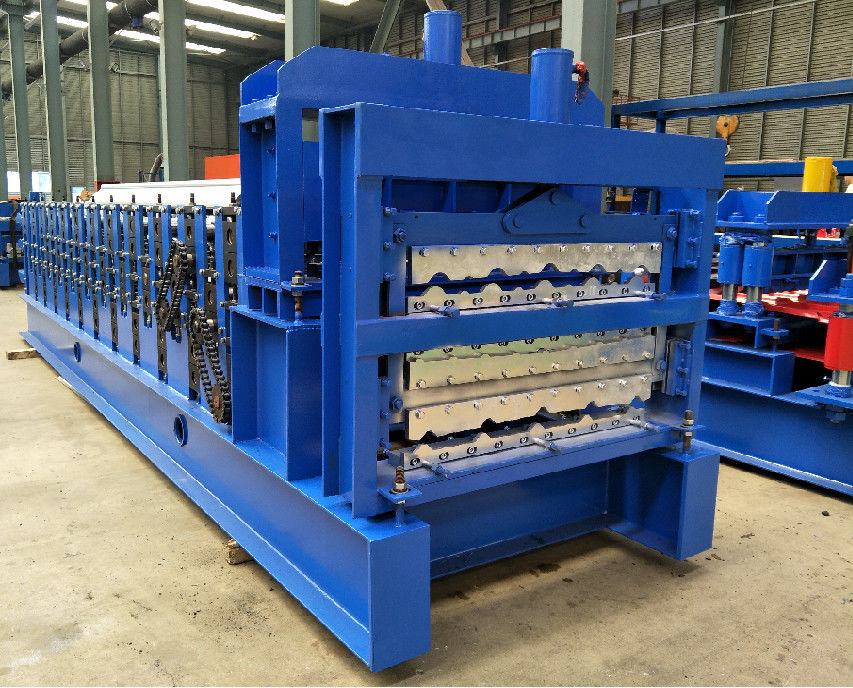

Three Layer 0.3mm Roof Sheet Forming Machine Plc 0
