Name: Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Zakrzywiony regulowany kąt
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine

0.9mm Roof Roll Forming Machine

4KW Roof Roll Forming Machine

curving adjustable angle roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Zakrzywiony regulowany kąt

Skontaktuj się z nami

Poproś o wycenę

Curving Adjustable Angle 0.9mm 4KW Roof Roll Forming Machine

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek dachowych o regulowanym kącie

Surowiec:

PPGL, GL, PPGI, GI,

System sterowania:

Automatyczny

Grubość:

0,6-0,9 mm

Typ płytek:

Pochylenie się

Zakres kątów:

15-90 stopni

System sterowania:

PLC

Moc silnika:

4KW

Podkreślić:

0.9mm Roof Roll Forming Machine

4KW Roof Roll Forming Machine

curving adjustable angle roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

40 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

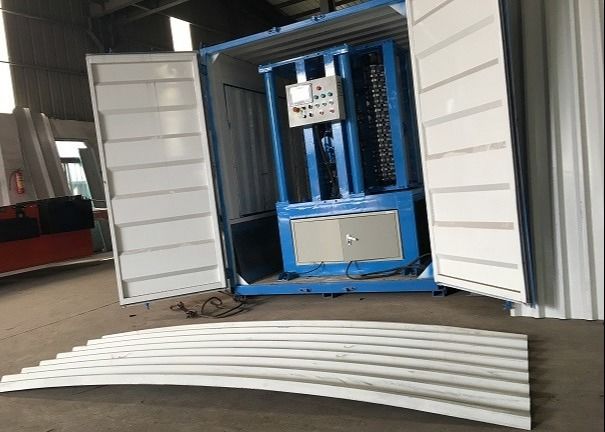

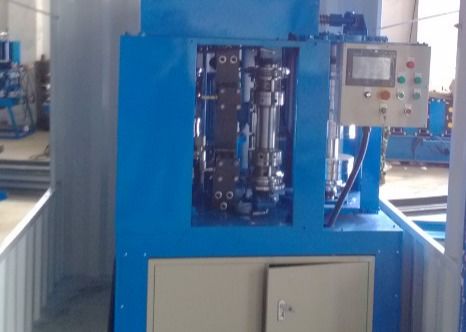

Curving Adjustable Angle Roof Roll Forming Machine

The curved arch roof color steel roof forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control, and the angle can be adjusted through the PLC control system, the angle range is 15-90 degrees, so as to better meet the needs of customers in different application scenarios

Specification

No.	Item	Description
1	Coil	PPGI PPGL GI GL
2	Raw Material Thickness	0.6-0.9mm
3	Working Speed	90Deg/2 min
4	Roller Station	3 Raws
5	Dimension (LWH)	2800 mm1200 mm1800mm
6	Machine Weight	2000 KG
7	Electrical Control System	Automatic
8	Drive Motor Power	4KW+4KW
9	Tile type	bending
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Curved roofs are usually used on roofs or eaves. To a large extent, it can effectively guide rainwater from the roof to the ground. This roof system prevents water accumulation and is widely used in workshop roofs, garage roofs, apartment roofs, shopping mall roofs, laboratory roofs, etc.

Advantage

The curved color steel roof produced by this machine is not easy to be damaged and can be folded into a thinner steel sheet. It has the advantages of light weight, high strength, and heat insulation. Color steel roof is widely used in large-span activity workshops, warehouses, office buildings, villas, air-purified houses, cold storages, shops, etc. Because of its low cost and easy installation, it can save customers a lot of cost.
