Name: IBR And Corrugated 0.9mm Roof Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: IBR i tektura falista
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

IBR And Corrugated 0.9mm Roof Panel Roll Forming Machine

0.9mm Roof Panel Roll Forming Machine

0.9mm ibr roll forming machine

ibr roof panel roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou willing

Orzecznictwo:

CE,ISO

Numer modelu:

IBR i tektura falista

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Opis produktu:

Maszyna do formowania rolek paneli dachowych IBR i tektury falistej

Grubość:

0,3-0,9 mm

Materiał wału:

materiał to stal kuta 45 #

Wymiar (L*W*H):

7500*1550*1500mm

System sterowania:

PLC

Prędkość:

10-20 m/min

Woltaż:

380 V 50 Hz 3 fazy

Waga:

6 T

Podkreślić:

0.9mm Roof Panel Roll Forming Machine

0.9mm ibr roll forming machine

ibr roof panel roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

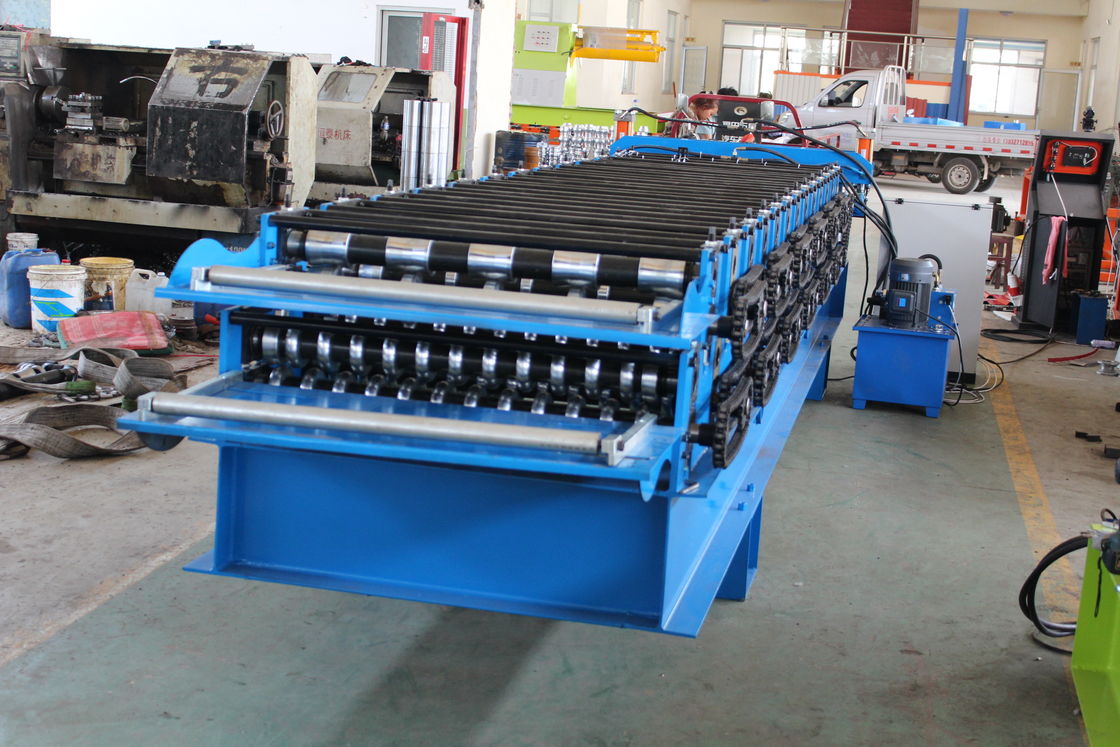

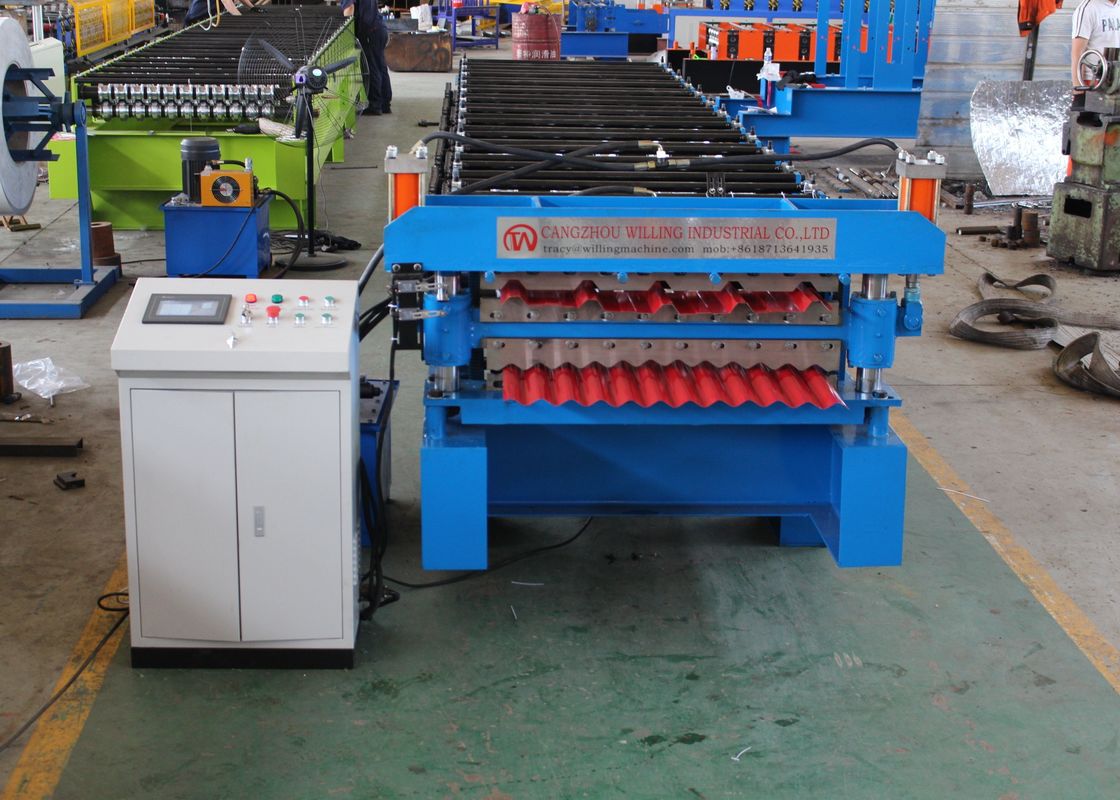

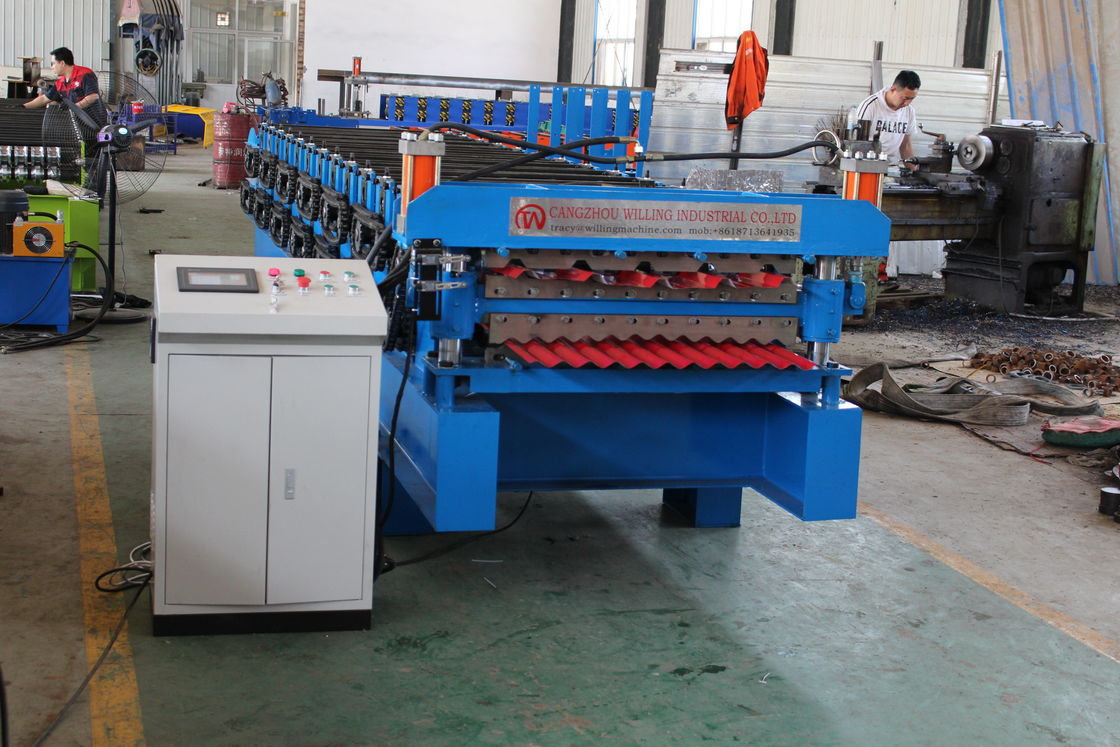

IBR And Corrugated Roof Panel Roll Forming Machine

This 2 in 1 roof roll forming machine can make two different tiles drawings in one machine, which can save more space and money than using two different machines.

Equipment Detailed Parameters:

1	Suitable Material	PPGL,PPGI ,PI,GI
2	Width of the raw material	1000mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	730015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.2-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two roll forming machines into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine has no defects and is beautiful and novel. The appearance is flat, the corrugation is uniform, and the utilization rate is high.

Advantage

Cangzhou willing roll forming machine manufacturer, we have many years of industry experience in design, research and development and production of colored steel equipment. We have a qualified team, skilled talents and strong technical force in design, research and development, production, marketing and after-sales service. , Strong independent research and development capabilities and production and processing equipment. The perfect after-sales service system has enabled our products to be well received by domestic and foreign customers.
