Name: 0.3mm Two Line In One U And Omega Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Ty i Omega
Price: 40,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do tworzenia rolki z kołkami i ścieżkami >

0.3mm Two Line In One U And Omega Roll Forming Machine

omega roll forming machine

u and omega roll forming machine

0.3mm omega roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Ty i Omega

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek z dwiema liniami w jednej U i Omega

Surowiec:

PL, GL, PPGL, PPGI

Prędkość pracy:

15-20m / min

Grubość materiału:

0,3 mm - 1,5 mm

Waga:

6 ton

Dostawa:

30 dni roboczych

Podkreślić:

omega roll forming machine

u and omega roll forming machine

0.3mm omega roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

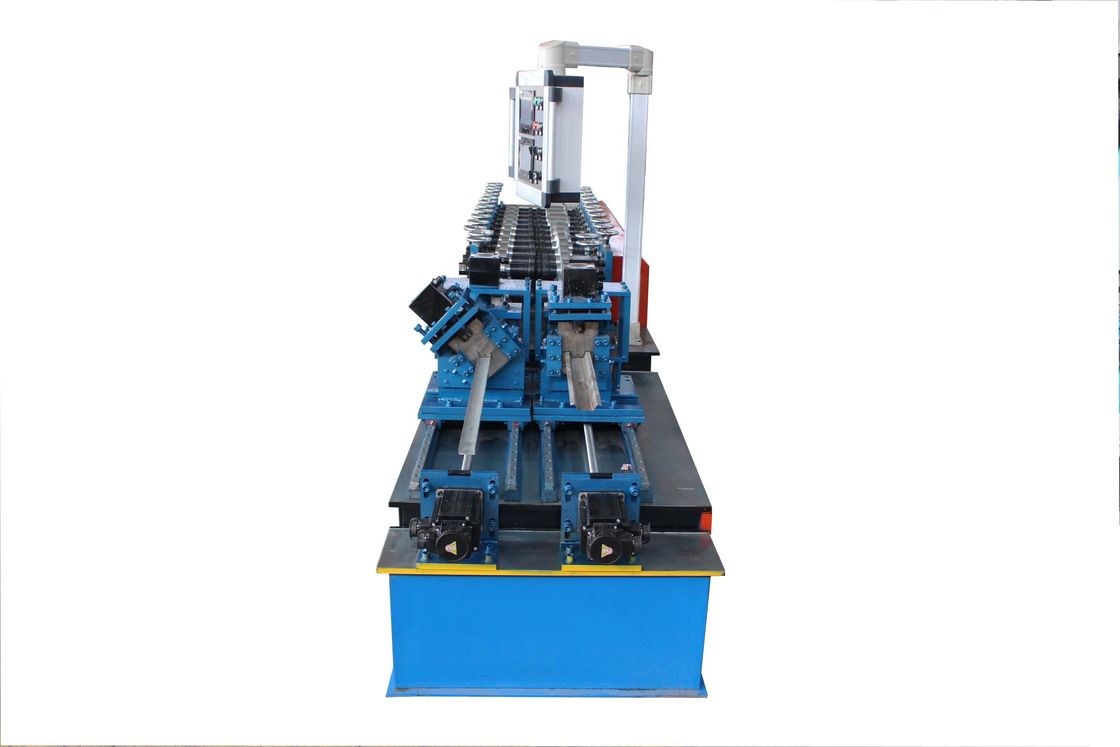

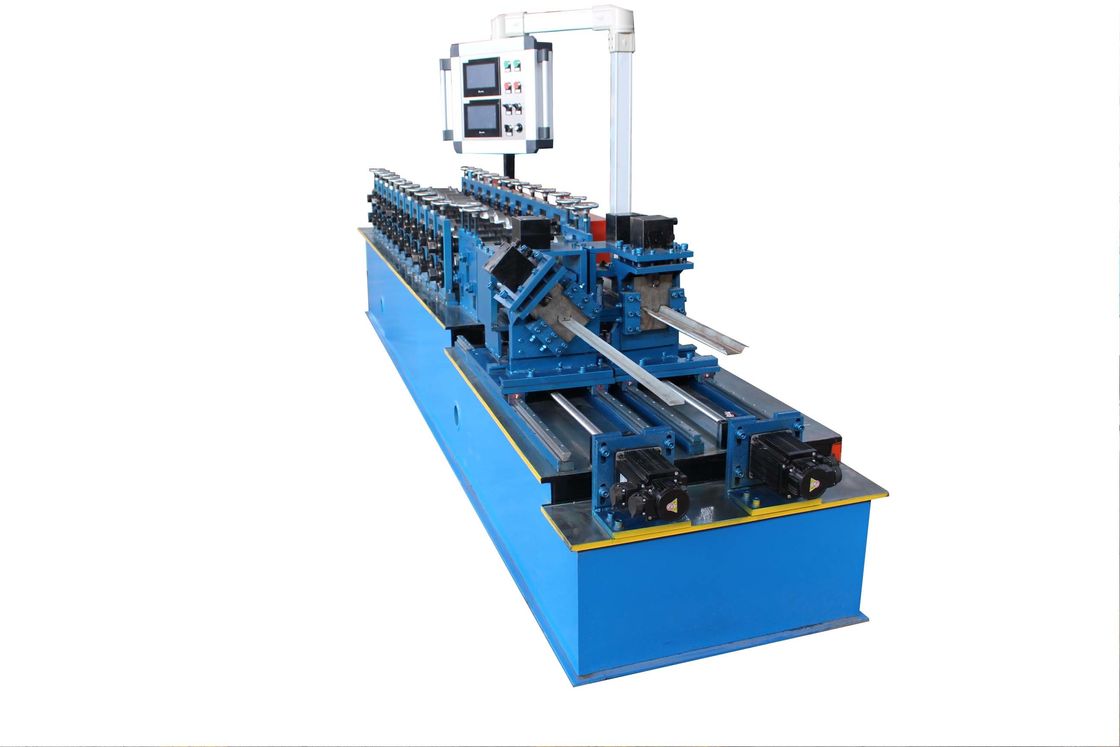

Two Line In One U And Omega Stud And Track Roll Forming Machine

C and Omega in one roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency

Specification

No.	Item	Description
1	Coil	PL,GL,PPGL,PPGI
2	Raw Material Thickness	0.3-1.5mm
3	Working Speed	15-20m/min
4	Roller Station	14 Raws
5	Dimension (LWH)	6000 mm1500 mm1500 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

C and Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. Good lighting, quick disassembly and assembly, time-saving and laborious, light weight, long service life, good stability, cumbersome construction, convenient transportation, and ability to disassemble and assemble many times; the house has features such as meticulous sealing, sound insulation, waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so C-shaped steel is widely used in real life.

Advantage

Cangzhou willing has a long history in producing purlin lines. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou willing has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.
