Name: Integrated Interchange 3mm Cz Purlin Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Maszyna do płatwi CZ
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Integrated Interchange 3mm Cz Purlin Roll Forming Machine

3mm cz purlin roll forming machine

integrated cz purlin roll forming machine

interchange cz roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Maszyna do płatwi CZ

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Zintegrowana maszyna do formowania rolek płatwi wymiennych CZ

Surowiec:

Galvalume, ocynkowane

Wymiar (L*W*H):

7000 mm*1500 mm* 1500

Grubość materiału:

1 mm - 3 mm

Waga:

Zdolność produkcyjna:

10-20 m/min

Woltaż:

380 V/50 Hz/3ph

Moc silnika głównego::

15 kW

Podkreślić:

3mm cz purlin roll forming machine

integrated cz purlin roll forming machine

interchange cz roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

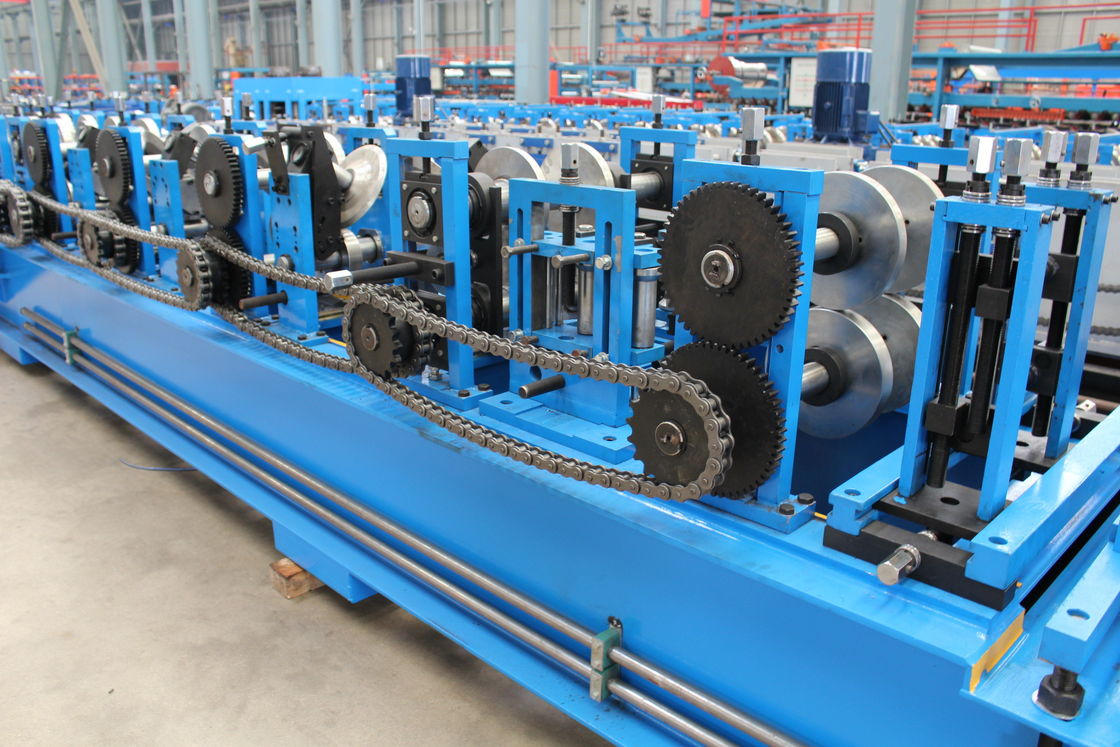

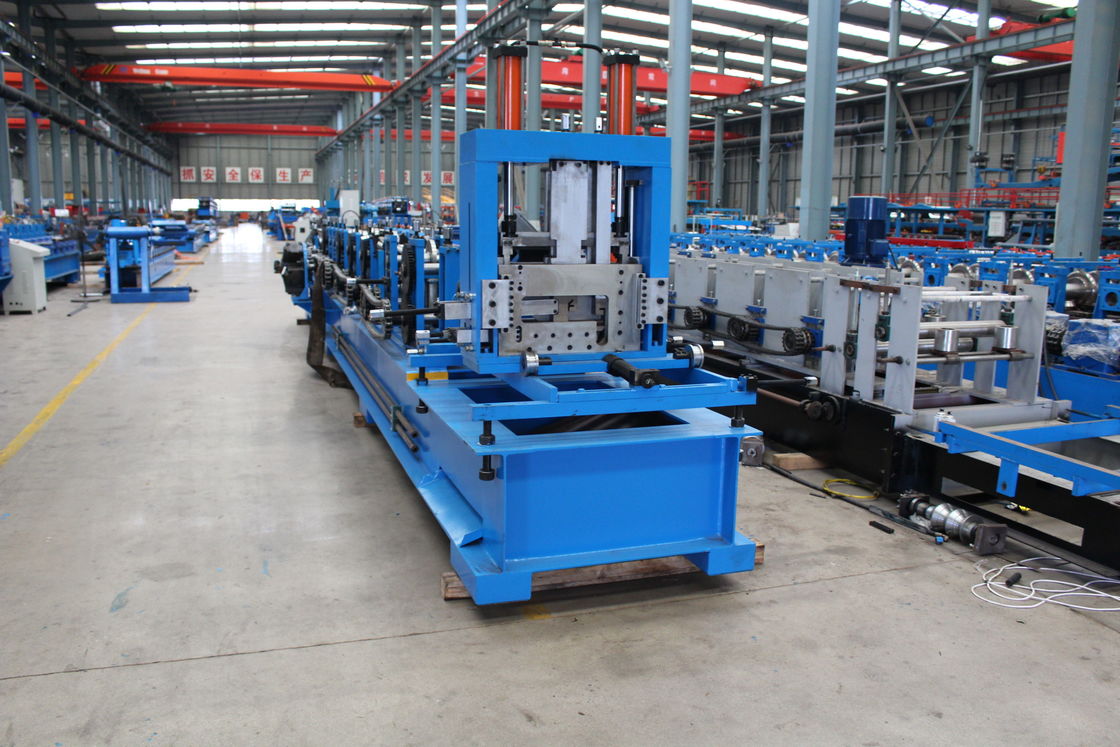

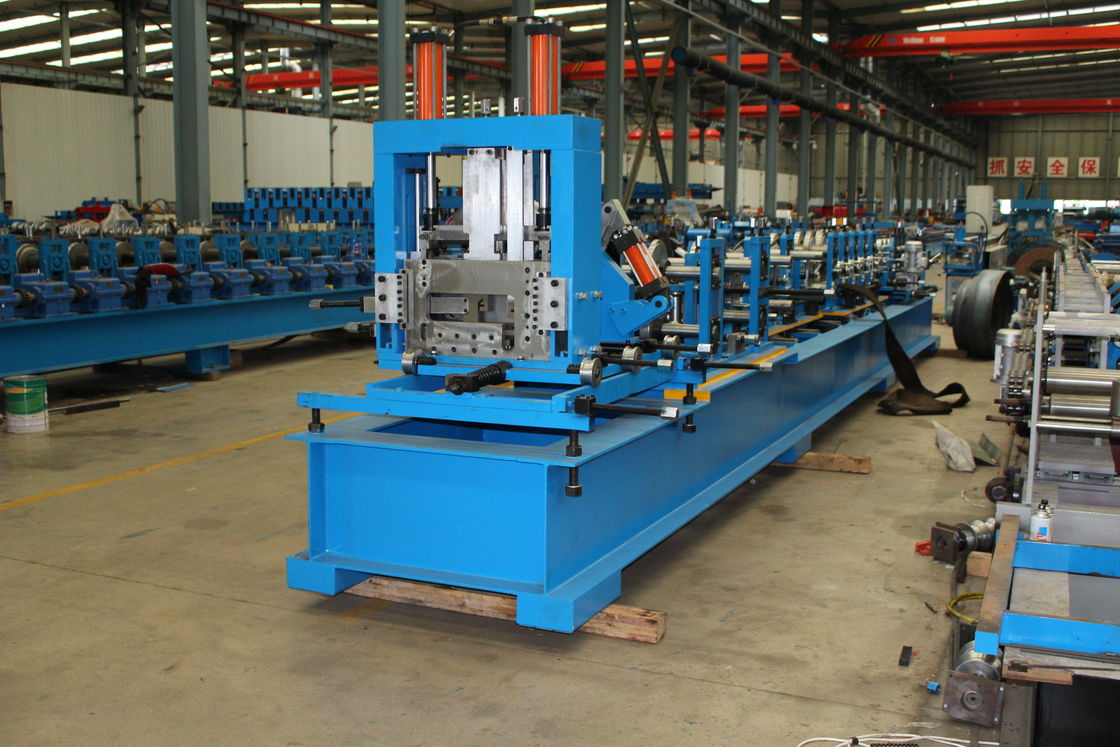

CZ Integrated Interchange Purlin Roll Forming Machine

CZ Channel Adjustable Purlin Roll Forming Machine is make C-type machine and Z-type machine in one.
This equipment can change C Z two type of purlin in short time by manual .

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	10- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	5000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Mostly applicate in remove room, apartment,Workshops, warehouses, shopping malls and other buildings. C-shaped and Z-shaped steel are used as beams, supports and tie rods. Its safety factor is quite high and its bearing capacity can also meet the requirements. It can also be used on roofs to support roof and wall panels.

Advantage

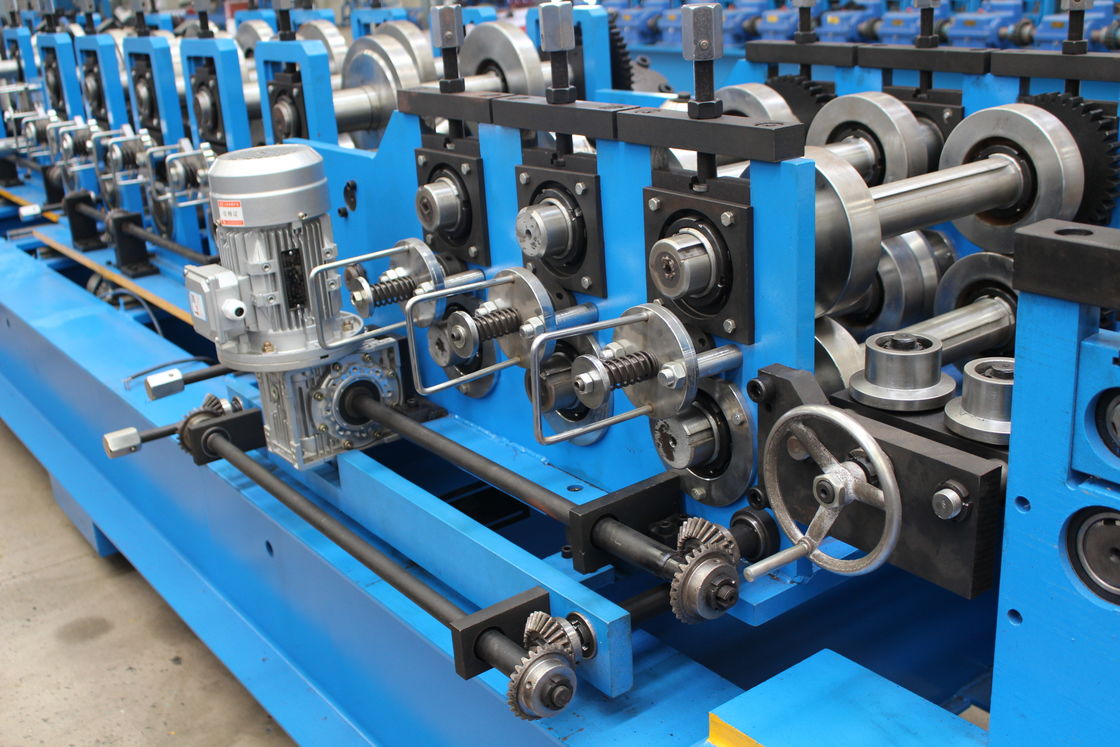

This adjustment roll forming machine with two different CZ profiles, and can realize the conversion of the two profiles without replacing the forming roller. Very fast, very efficient.
C-purlin has good straightness and good compressive and flexural properties. Z-purlin can be installed in reverse lap to increase the installation strength of connection points.

Integrated Interchange 3mm Cz Purlin Roll Forming Machine 0
