Name: Fully Automatic Hydraulic Shear 1mm C Channel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Maszyna do płatwi C
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Fully Automatic Hydraulic Shear 1mm C Channel Roll Forming Machine

1mm c channel roll forming machine

1mm fully automatic roll forming machine

galvalume c channel roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Maszyna do płatwi C

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

W pełni automatyczna maszyna do formowania rolek płatwi z kanałem hydraulicznym C

Surowiec:

Galvalume, ocynkowane

Wymiar (L*W*H):

7000 mm*1500 mm* 1500

Grubość materiału:

1mm - 3mm

Waga:

3,5 T

Zdolność produkcyjna:

10-15m/min

Woltaż:

380 V/50 Hz/3ph

Moc silnika głównego::

15 kW

Podkreślić:

1mm c channel roll forming machine

1mm fully automatic roll forming machine

galvalume c channel roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Fully Automatic Hydraulic Shear Channel C Purlin Roll Forming Machine

Fully Automatic Hydraulic Shear Channel C Purlin Roll Forming Machine is the machine to produce adjustment size C shape purlin.
due to equip hydraulic shear system so the productive can be 15-20mpm. it save time cost for users.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

the product of C and Z roll forming machine produce widely used in purlins and wall beams in structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components. In addition, it can also be used for columns, beams and arms in light machinery manufacturing.
Application in the move room. The sprayed C and Zshaped steel is used as beams, supports and ties. Its safety factor is quite high, and its load-bearing capacity can also be satisfied. It can also be used in the roof to support roof panels and wall panels.

Advantage

The C-type purlin has very good straightness and has good compression and bending resistance. The Z-type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased.

The fully automatic CZ interchange purlin machine has a fully automatic electric control system and an error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor plus variable frequency control, speed control, and fixed-length positioning. It has also become much more accurate and reliable.

This kind of forest adjustment can press two different profiles of CZ, and it can realize the conversion of two types of profiles without changing the forming roller. The speed is very fast and the efficiency is very high.

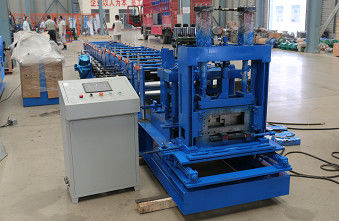

Fully Automatic Hydraulic Shear 1mm C Channel Roll Forming Machine 0
