6 Rib 840 Model Ibr Roof Tile Roll Forming Machine

ibr roof tile roll forming machine

ppgi roof tile roll forming machine

6 rib tile forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Ibr

Skontaktuj się z nami

Poproś o wycenę

6 Rib 840 Model Ibr Roof Tile Roll Forming Machine

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania dachów 6 Rib 840 Model IBR

Surowiec:

Galvalume, ocynkowane, PPGI, aluminium

System sterowania:

PLC

Grubość:

0,3-0,8 mm

Typ płytek:

maszyna do formowania rolek / maszyny do materiałów budowlanych

Stan:

Nowy

Kolor:

Zgodnie z życzeniem klienta

Moc silnika:

3,5 kW

SZEROKOŚĆ SUROWCA:

1000 mm

Waga maszyny:

4 T

Podkreślić:

ibr roof tile roll forming machine

ppgi roof tile roll forming machine

6 rib tile forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

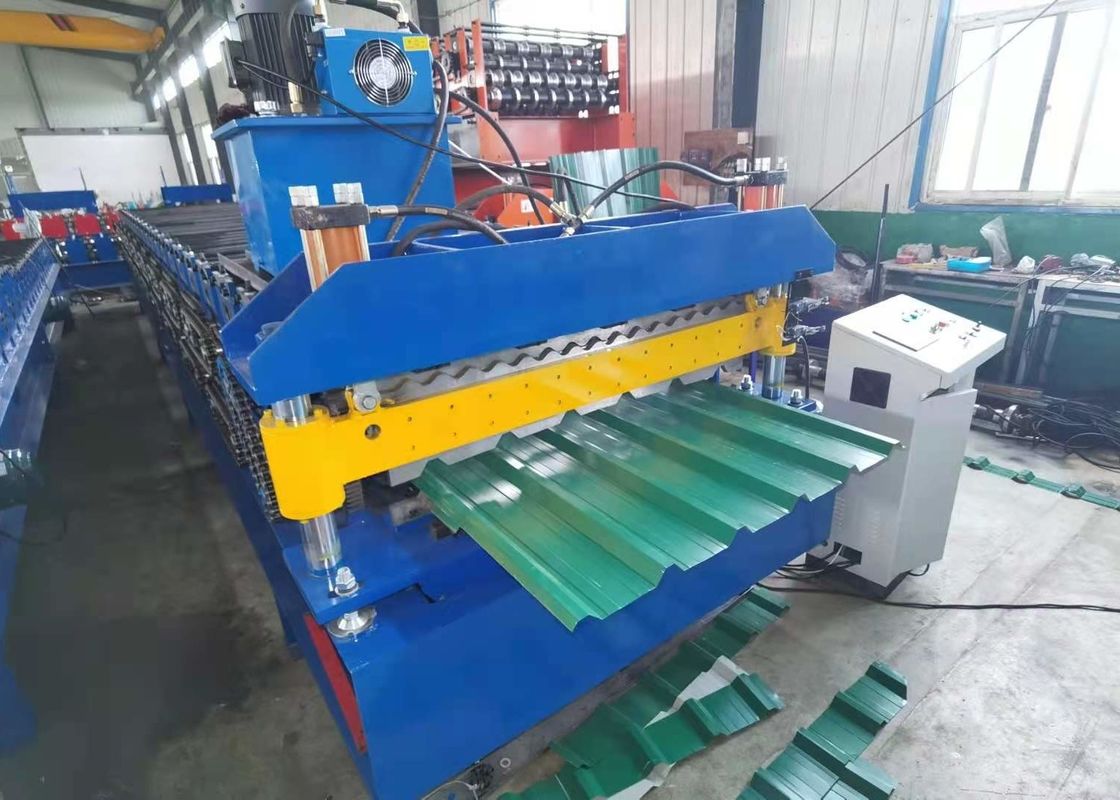

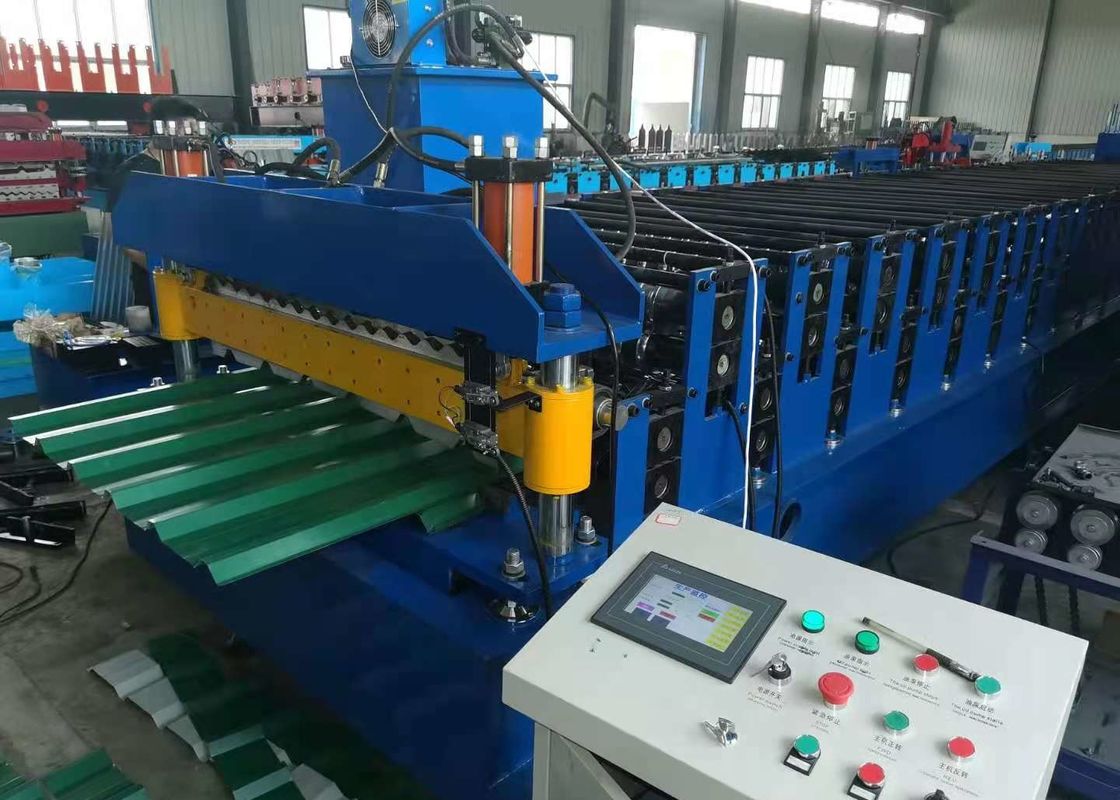

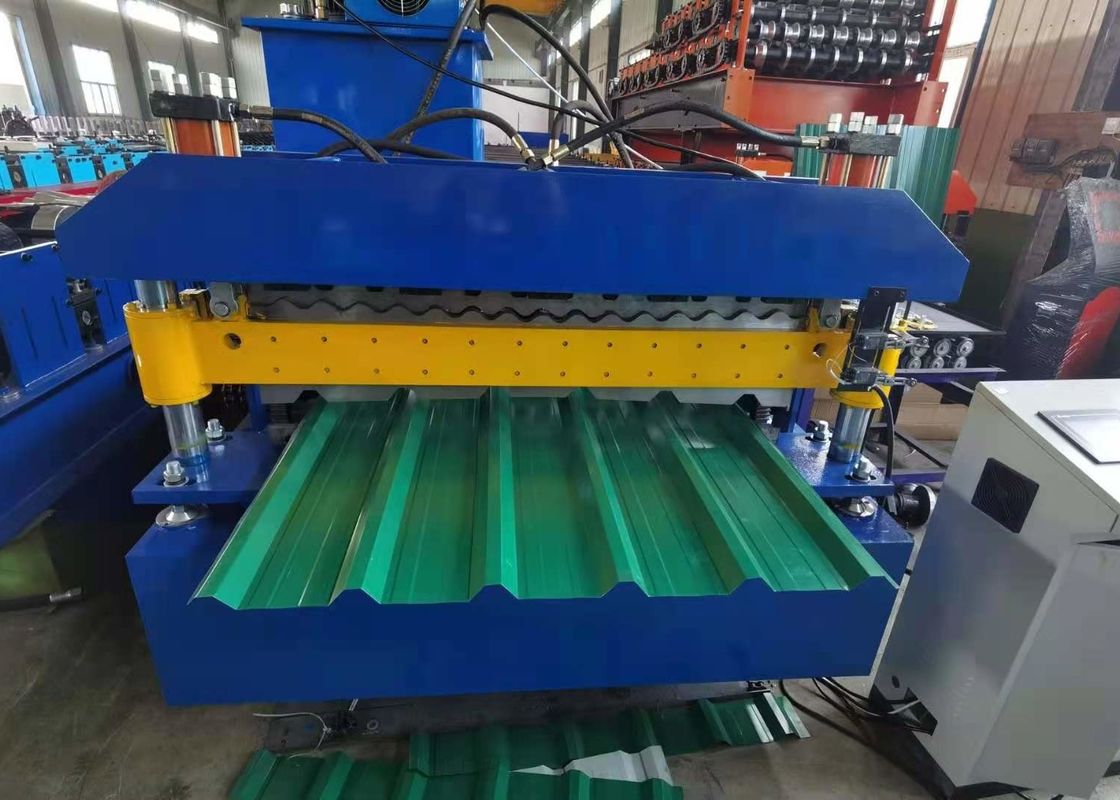

6 Rib 840 Model IBR Roof Roll Forming Machine

The 6Rib 840 IBR roof forming machine is an efficient production machine composed of several parts such as uncoiling, feeding, forming and cutting. The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-20m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.

Advantage

Our company's main business includes a series of equipment such as double-layer tile machine, three-layer tile machine, glazed tile machine, square brick machine, floor machine, fully automatic CZ beam machine, plate shearing machine, bending machine, and punching machine.
We are committed to the research and development of various products, with supporting production equipment and development and design talents.The products produced have the advantages of accurate accuracy, strong flexibility, low processing loss, etc., and have a good cost performance.
