Name: Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Trójwarstwowe
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

triple layer roofing roll forming machine

hydraulic shear roofing roll forming machine

plc control roofing roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

Willing

Orzecznictwo:

Numer modelu:

Trójwarstwowe

Skontaktuj się z nami

Poproś o wycenę

Triple Layer Hydraulic Shear Roofing Roll Forming Machine Plc Control

Szczegóły produktu

Opis produktu:

Trójwarstwowa hydrauliczna maszyna do formowania rolek dachowych ze sterowaniem PLC

Grubość:

0,3-0,8 mm

Materiał wału:

materiał to stal kuta 45 #

Wymiar (L*W*H):

2500*1750*1650 mm

System sterowania:

PLC

Prędkość:

15-20 m/min

Woltaż:

380 V 50 Hz 3 fazy

Waga:

Moc silnika:

4KW

moc silnika pompy olejowej:

4KW

Podkreślić:

triple layer roofing roll forming machine

hydraulic shear roofing roll forming machine

plc control roofing roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

Negotiate

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

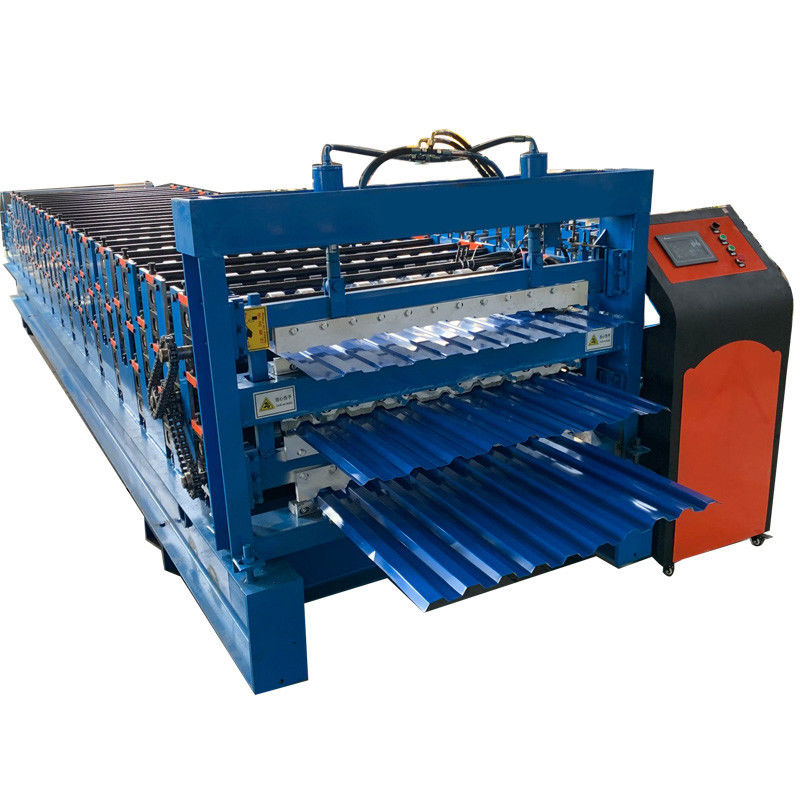

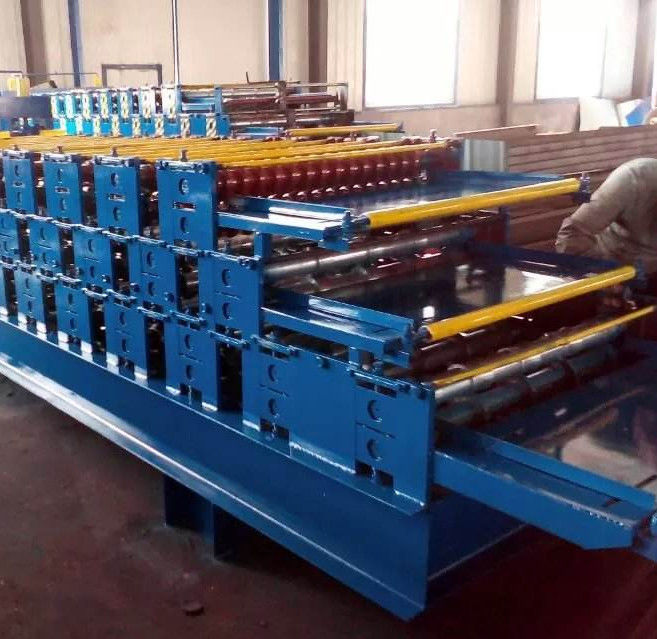

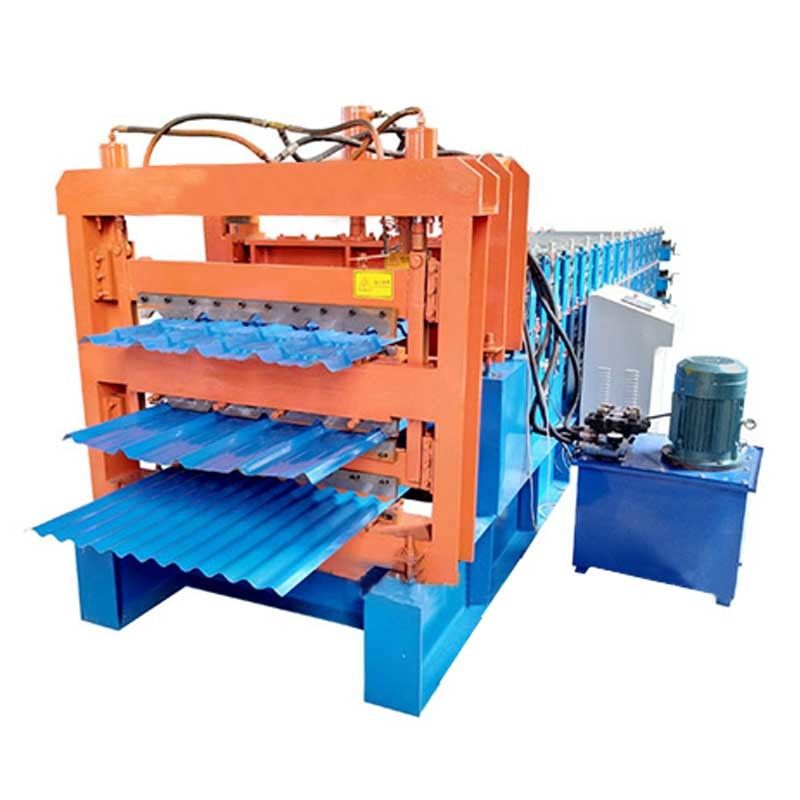

Triple Layer Hydraulic Shear PLC Control Roof Roll Forming Machine

The Triple Layer roof roll forming machine is a Triple Layer color steel tile production equipment with one machine. It can produce glazed tiles, trapezoidal roof tiles and corrugated wall tiles at the same time. One machine can produce three types of color steel roof tile building materials. The machine is composed of a feeding rack, a feeding platform, a pressing host, a leveling roller, and cutting after forming. It is fully automatic computer control and simple and convenient to operate. The value that the triple-layer tile machine can create for users is the core. One machine has multiple functions, which not only saves the area but also reduces the cost. The triple-layer tile machine has a light structure and is especially suitable for customers with small sites and on-site construction.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250/1250/1220 mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	231017501650mm
5	Main servo	4kw
6	Hydraulic station power	4kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The triple layer roll forming machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production are smooth and beautiful, uniform paint pattern, high strength, and durable. They are widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, Theaters and other rooms.

Advantage

Our company's three-layer tile machine adopts high-number pulse input function. Due to the excellent high-number input performance, the AB phase has strong anti-interference ability. The fixed value interrupt function is also used to ensure accuracy.
The multi-layer model of the three-layer tile machine can be designed and customized according to user requirements, flexible and changeable, and is loved by the majority of users
