Name: Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Podwójna warstwa
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Metal Roofing Corrugated Steel Plc Wall Panel Roll Forming Machine Double Layer

plc wall panel roll forming machine

versatile wall panel roll forming machine

versatile metal roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

cangzhou willing

Orzecznictwo:

CE,ISO

Numer modelu:

Podwójna warstwa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Opis produktu:

dwuwarstwowa maszyna do formowania rolek

Grubość:

0,25-0,8 mm

Materiał wału:

materiał to stal kuta 45 #

Wymiar (L*W*H):

9500*1550*1500mm

System sterowania:

PLC

Prędkość:

15-20 m/min

Woltaż:

380 V 50 Hz 3 fazy

Waga:

6,5T

Podkreślić:

plc wall panel roll forming machine

versatile wall panel roll forming machine

versatile metal roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

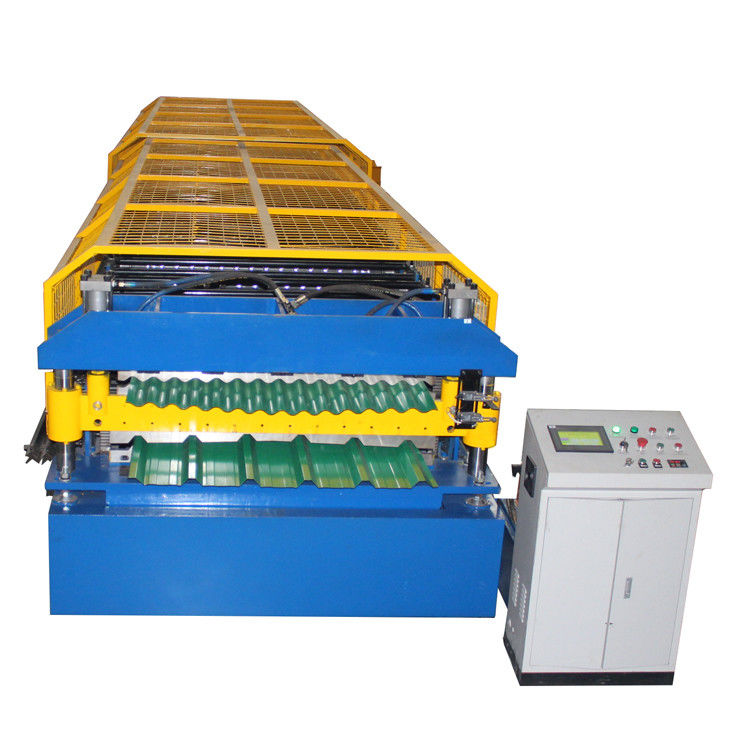

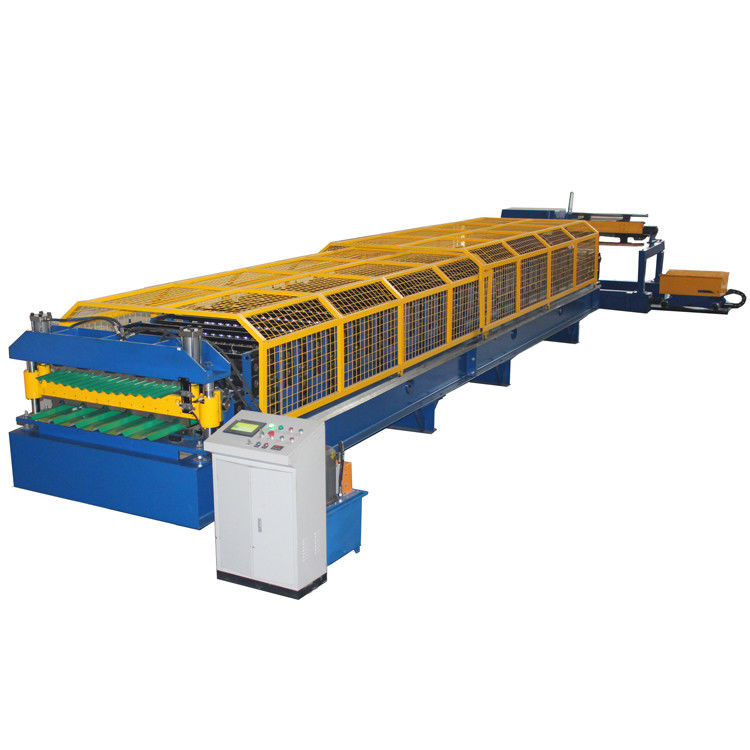

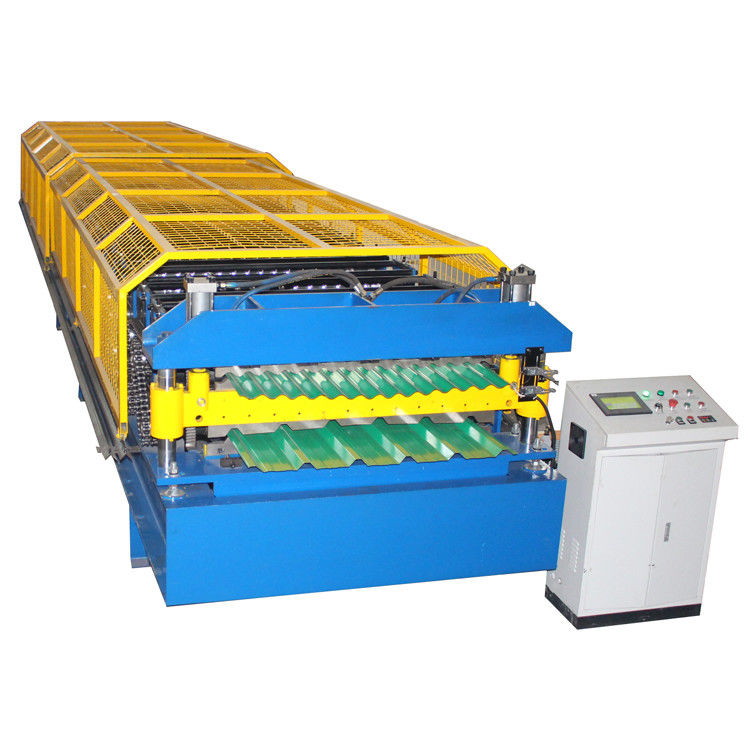

Metal Roofing Corrugated Steel Wall Panel Double Layer Roll Forming Machine

In order to meet the needs of forming two sections on a limited site area, and to quickly change products, the double-layer rolling mill of the tile press is also designed and manufactured. This double-layer color steel tile forming machine is installed in the high or low frame Change between.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	730015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	15-20m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The profiled plate rolled by the double-layer tile machine is not only solemn and elegant, but also beautiful and novel. And the appearance is flat, the pressure is uniform, and the utilization rate is high.

Advantage

The double-layer tile machine equipment adopts PLC control system and electric control system, which can be displayed on the touch screen. The operation is simple and easy to use. The double-layer tile machine adopts advanced automatic control software. To achieve production information management, in order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and convenient mold replacement.
