Name: Interchangeable Galvalume Cz Purlin Machine Hydraulic Cutting Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Płatew CZ
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

Interchangeable Galvalume Cz Purlin Machine Hydraulic Cutting Automatic

interchangeable cz purlin machine

galvalume cz purlin machine

galvalume roll forming cz purlin machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Płatew CZ

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Automatyczna wymienna maszyna do formowania rolek płatwi CZ do cięcia hydraulicznego

Surowiec:

Galvalume, ocynkowane

Wymiar (L*W*H):

7000 mm*1500 mm* 1500

Grubość materiału:

1 mm - 3 mm

Waga:

Zdolność produkcyjna:

10-25 m/min

Woltaż:

380 V/50 Hz/3ph

Moc silnika głównego::

15 kW

Podkreślić:

interchangeable cz purlin machine

galvalume cz purlin machine

galvalume roll forming cz purlin machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

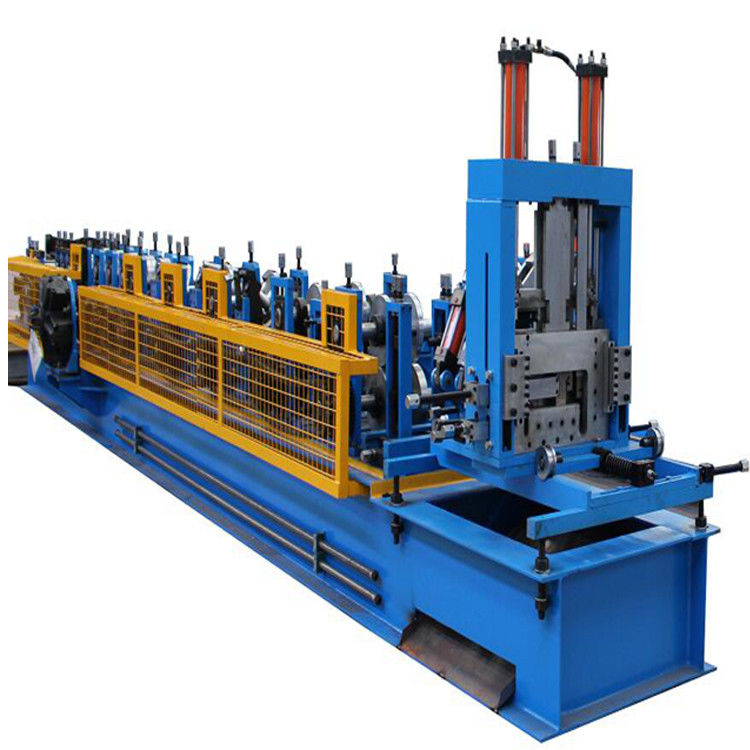

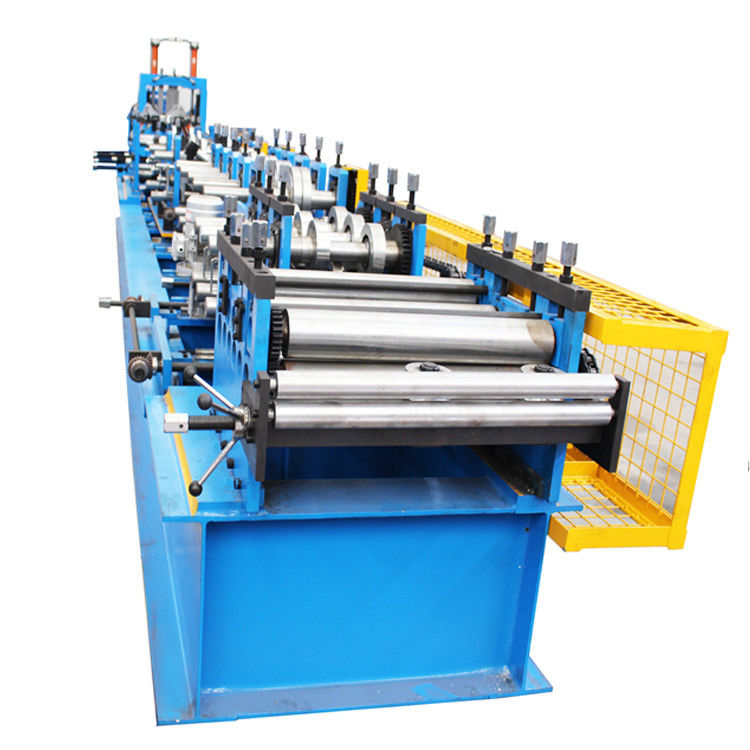

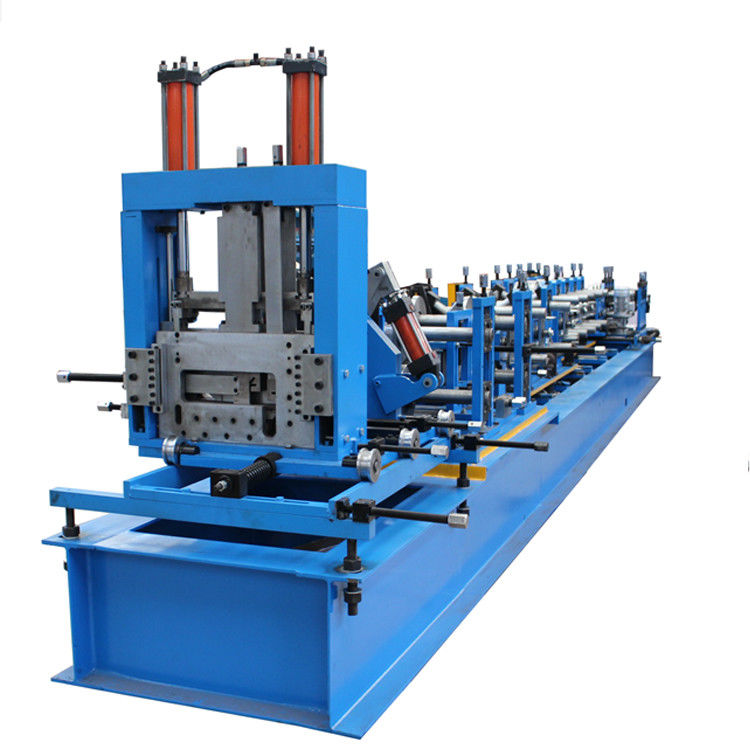

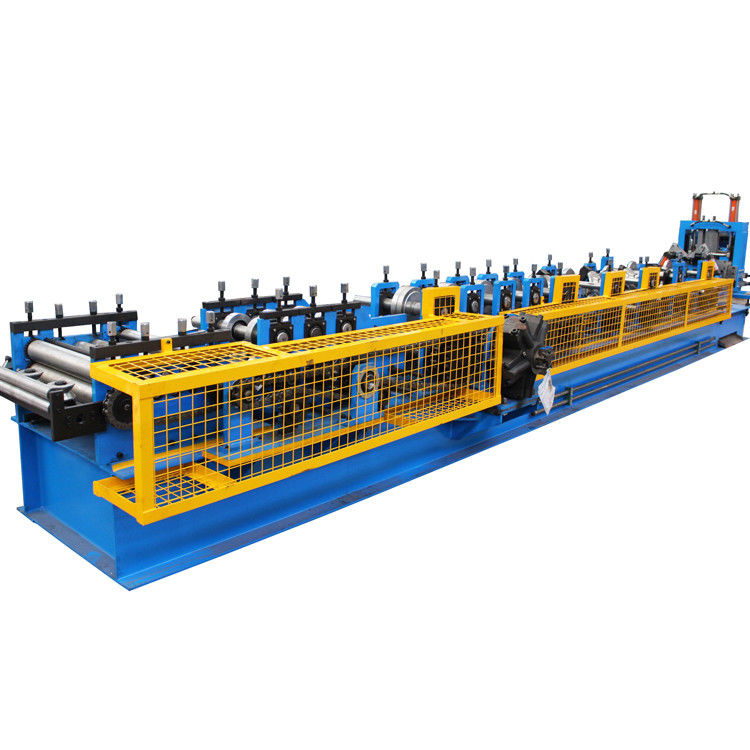

Hydraulic Cutting Automatic Interchangeable CZ Purlin Roll Forming Machine

The purlins are now commonly used in the construction industry, with different shapes and sizes, the most commonly used are C purlin and Z purlin. this machine can produce both C and Z products on the same machine. It only takes 40 minutes to change between C and Z. and the product size range 80mm and 300mm

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

C, Z type roll forming machine products are widely used in structural building purlins, wall beams and roofs, etc., and can also be combined into lightweight roof trusses, brackets and other building components. Due to its relatively high safety factor, the load-bearing capacity can meet most needs in movable buildings. Usually C-shaped and Z-shaped steel are used as beams, supports and tie rods. At the same time, it can also be used on the roof to support roof panels and wall panels.

Advantage

fully automatic CZ interchange purlin machine has a fully automatic electrical control system and error alarm device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. It has also become more accurate and reliable.
