3.5mm Galvalume Cz Purlin Roll Forming Machine Full Automatic Change Size Type

3.5mm cz purlin roll forming machine

galvalume cz purlin roll forming machine

full automatic purlin machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania płatwi w kształcie CZ W pełni automatyczna zmiana typu rozmiaru

Surowiec:

Galvalume, ocynkowane

Wymiar (L*W*H):

7000 mm*1300 mm* 1300

Grubość materiału:

1 mm - 3,5 mm

Waga:

4.5t

Zdolność produkcyjna:

10-25 m/min

Woltaż:

380 V/50 Hz/3ph

Moc silnika głównego::

15 kW

Podkreślić:

3.5mm cz purlin roll forming machine

galvalume cz purlin roll forming machine

full automatic purlin machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

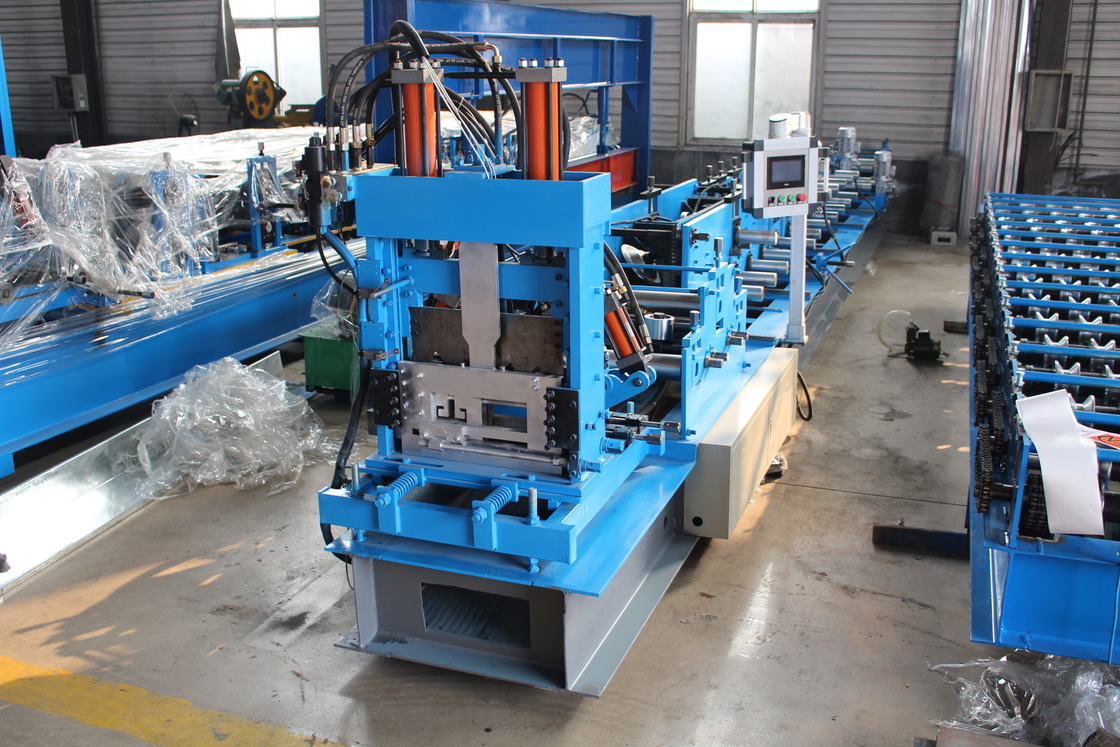

C Z Shape Purlin Forming Machine Full Automatic Change Size Type

CZ channel changeable roll forming machine CAN produce two different type of shape purlin in one machine, C type purlin has good straightness and has good compression and bending resistance. Z type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased. with it high productive speed, it can help client save labor cost and save more space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3.5 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The finished product of Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family
construction, shopping malls shutter doors and etc.

Advantage

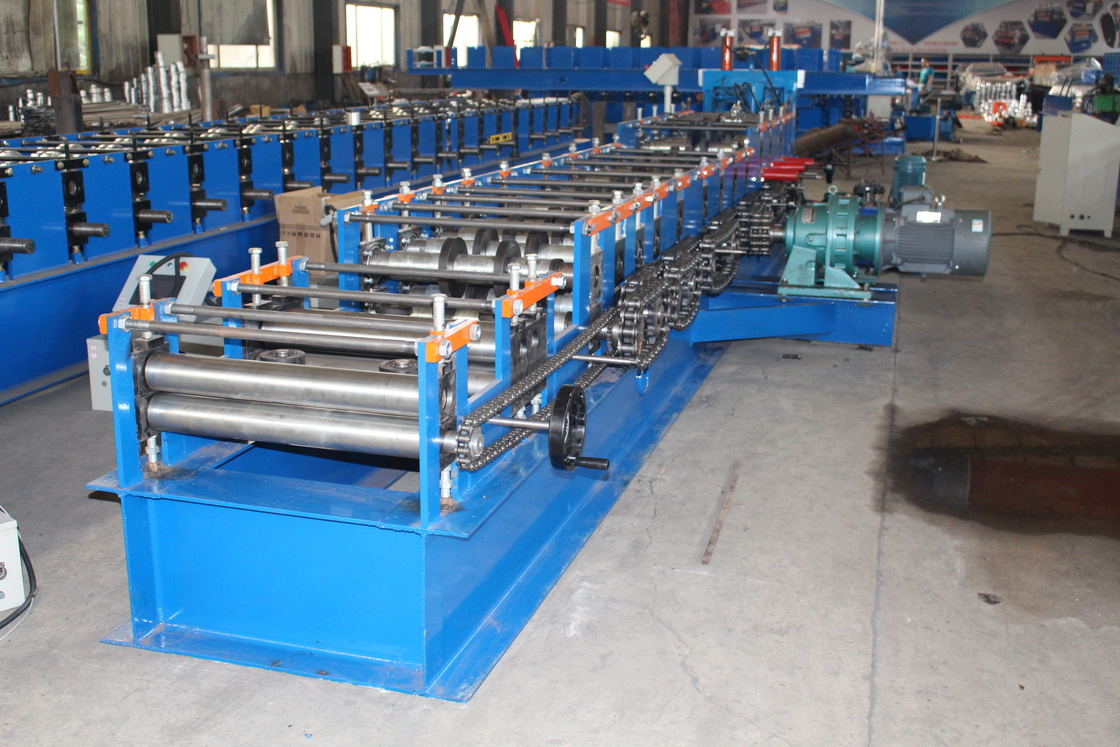

The CZ interchange purlin machine has a fully automatic electrical control system and error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. And the conversion of the two profiles can be realized without changing the forming roller. The speed is very fast and the efficiency is very high.

3.5mm Galvalume Cz Purlin Roll Forming Machine Full Automatic Change Size Type 0
