1mm 380v Drip Edge Roll Forming Machine High Accuracy

high accuracy drip edge roll former

1mm drip edge roll forming machine

380v drip edge roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek kroplowych o wysokiej dokładności

Wymiar (L*W*H):

5000mm*1200mm* 1100mm

Grubość materiału:

1mm - 3mm

Moc:

4KW

Zdolność produkcyjna:

5-18 m/min

Woltaż:

380 V/50 Hz/3ph

Rama główna:

Stal 350H

Ciśnienie hydrauliczne:

20mpa

Podkreślić:

high accuracy drip edge roll former

1mm drip edge roll forming machine

380v drip edge roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

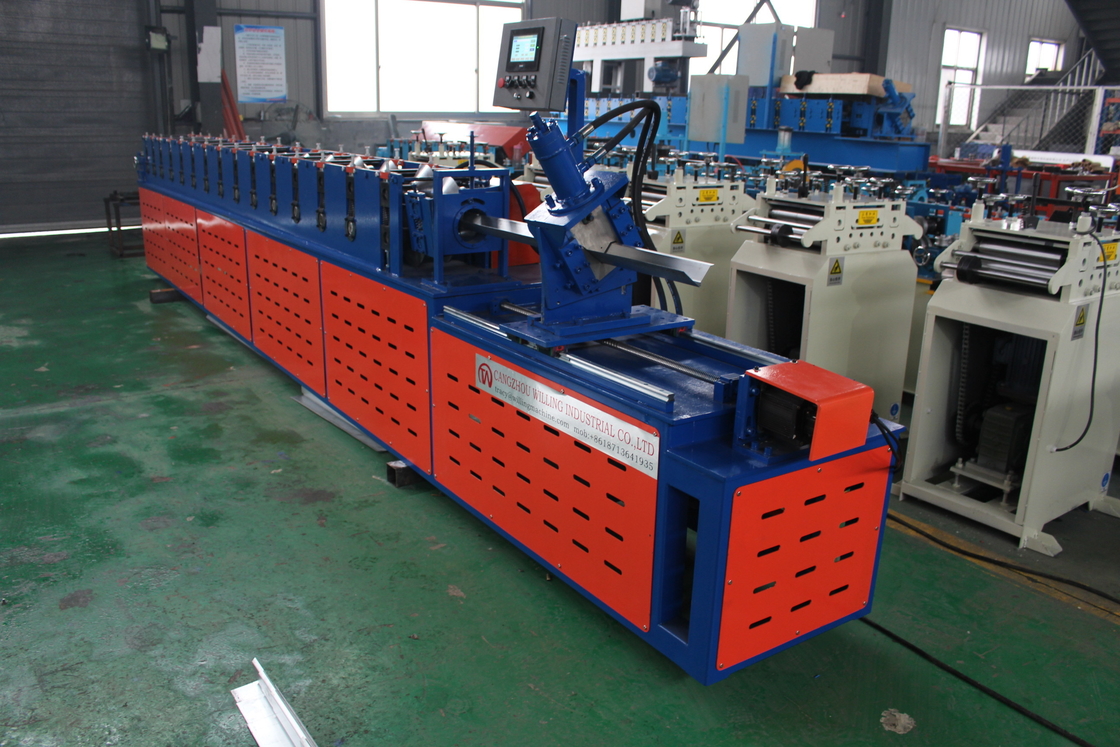

Drip Edge Roll Forming Machine High Accuracy

Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm,. Product thickness common between 1-3 mm, machine details is like up type

The length, quantity, and longitudinal hole distance of the pur strip can be automatically carried out. The equipment is stable and reliable in operation, with high punching accuracy and high output. At the same time, it is also suitable for most users. Save production space.

Specification

No.	Item	Description
1	Raw Material Thickness	20-30 GA
2	Working Speed	5-18 m/min ( not including the cutting time)
3	Roller Station	19 Raws
4	Dimension (LWH)	5000 mm1200 mm 1100 mm
5	Machine Weight	4000 KG
6	Electrical Control System	Panasonic PLC (can be customized)
7	Drive Motor Power	5KW
8	Hydraulic Station Power	4 KW
9	Cutting Accuracy	±2 mm
10	Driving Mode	Single Chain 1 inch
11	Material of Shaft	70 mm 45#steel forged
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

prulin roll forming machine produce have excellent bending resistance and easy to install.

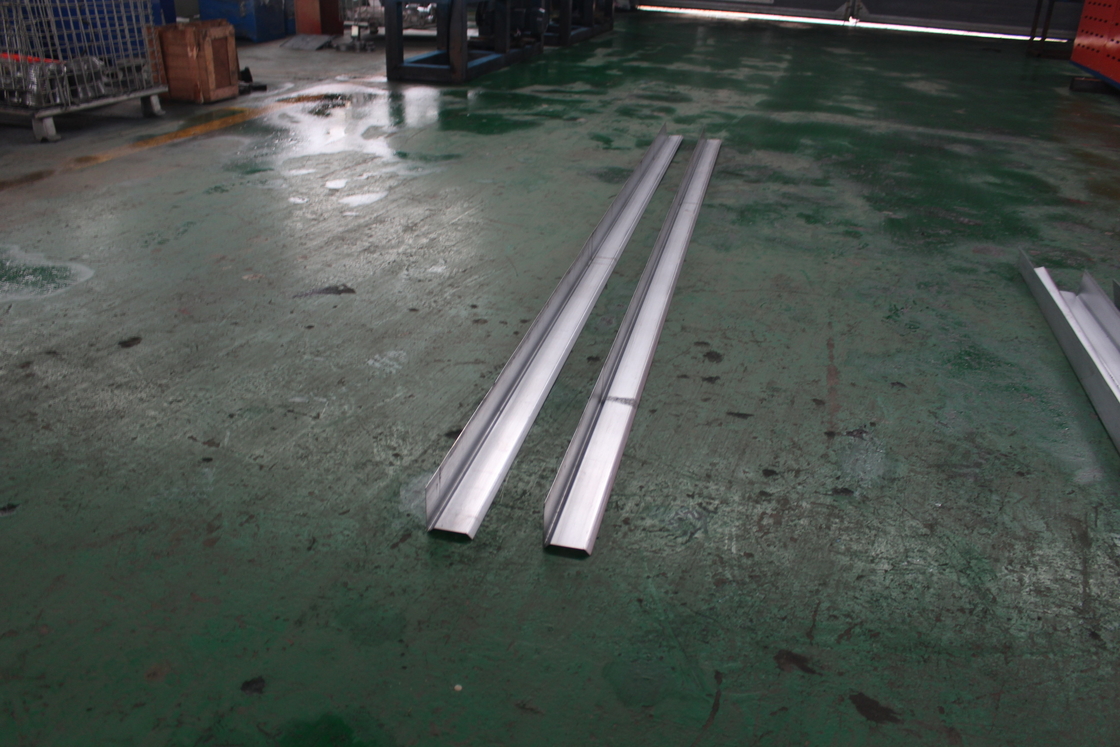

The finished product of Purlin Making Machine Non-polar Cutting Drip Edge Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family
construction, shopping. lt has the advantage of beautiful, classical appearance and grace taste.

Advantage

The advantages of purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side
