Name: Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Met dachówka/glazura
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

ppgi high speed roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Met dachówka/glazura

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

USA Maszyna do formowania płytek met / glazury o dużej prędkości

Surowiec:

Galvalume, ocynkowane, PPGI, aluminium, miedź

Woltaż:

380 V.

Używać:

Panel dachu

Gwarancja:

1 rok

Grubość materiałów:

0,25-0,8 mm

Elektryka Hydraulika:

4 kW

Dokładność cięcia:

±2 mm

Podkreślić:

ppgi high speed roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

35 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

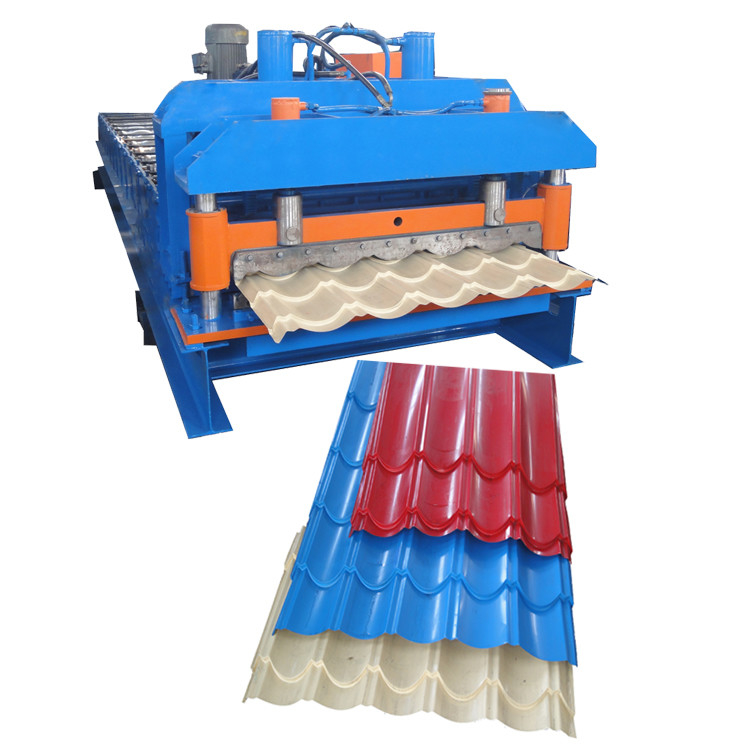

USA Met / Glaze Tile Rolling Molding Machine High Speed

Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles.

Met-Tile roofing panel provides the appearance of tile roofing with all the advantages and performance of metal. Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.

Metal roof tiles with “steps” are rollformed using a rollforming machine from pre-painted steel and Galvanized steel. The Step Tile is formed using pre-painted steel and Galvanized steel.

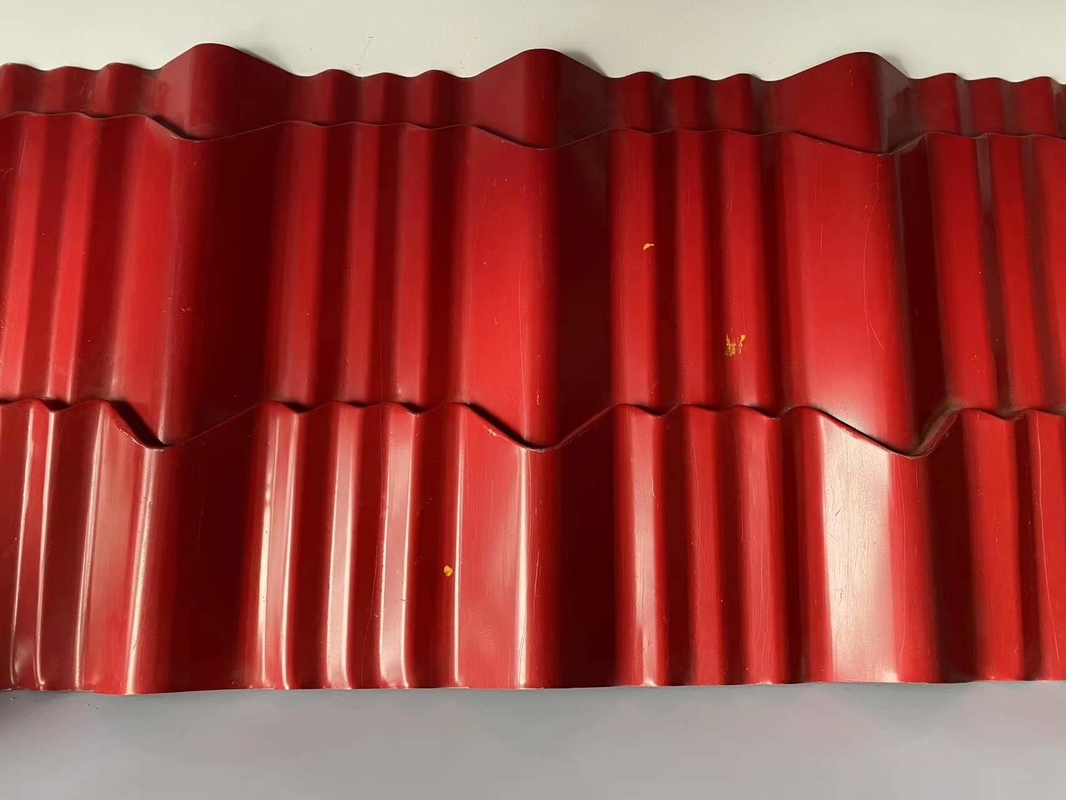

Profile

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v 0

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15m/min
Main servo	5.5kw
Hydraulic Station Power	4 kw
Electrical Control System	PLC
Suitable Material	PPGI (235Mpa)
Material of Cutter	Cr12
Driving Mode	single chain 1 inch
Cutting accuracy	±2 mm
Power Supply	380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure	12.0 Mpa

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
