Name: U Gearbox Drive Post Roll Forming Machine High Impact Endurance
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Poręcz autostradowa
Price: 50,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolki pasów drogowych >

U Gearbox Drive Post Roll Forming Machine High Impact Endurance

gearbox drive post roll forming machine

u post roll forming machine

high impact endurance roll former

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Numer modelu:

Poręcz autostradowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Linia produkcyjna maszyny do formowania rolek typu U. Większa wytrzymałość na uderzenia

Stacje formujące:

Według rysunków profilu

Materiał rolek:

Obróbka hartownicza GCr15, Cr12, SKD11: HRC58-62 (opcjonalnie)

Sposób jazdy:

Napęd łańcuchowy, napęd skrzyni biegów (opcjonalnie)

Zapytanie o surowiec:

stal walcowana na zimno lub gorąco, stal ocynkowana, SS316L / stal miękka

Kontrola:

PLC

Prędkość robocza całej linii:

0-25m/min

Precyzja długości:

±0,3 mm/10 m

Podkreślić:

gearbox drive post roll forming machine

u post roll forming machine

high impact endurance roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

50 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Uzyskaj najlepszą cenę

Wideo

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Uzyskaj najlepszą cenę

Wideo

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Uzyskaj najlepszą cenę

Wideo

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

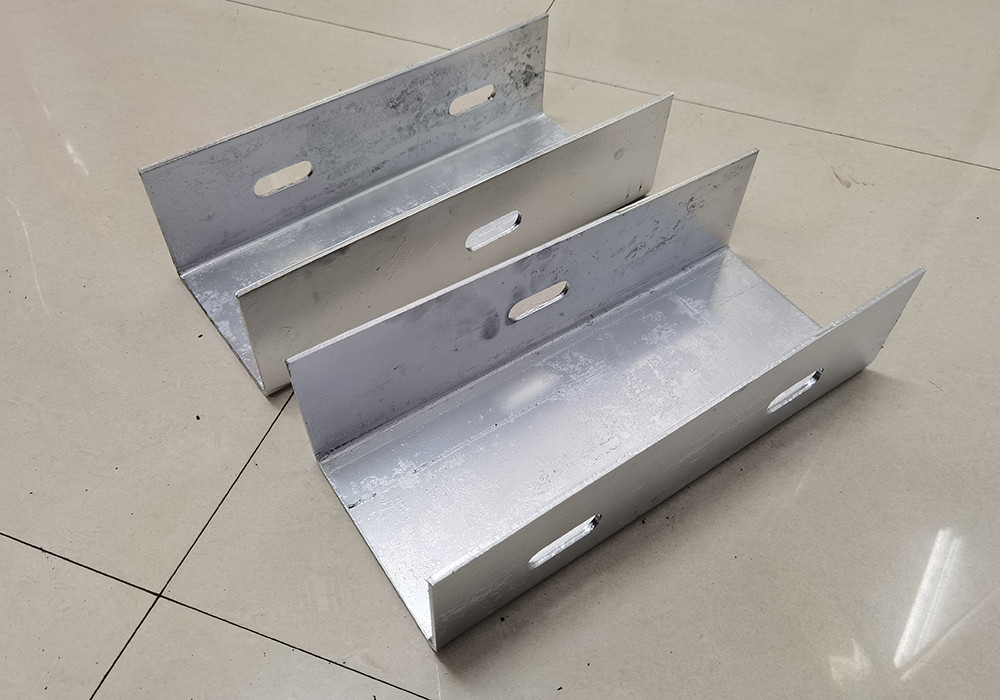

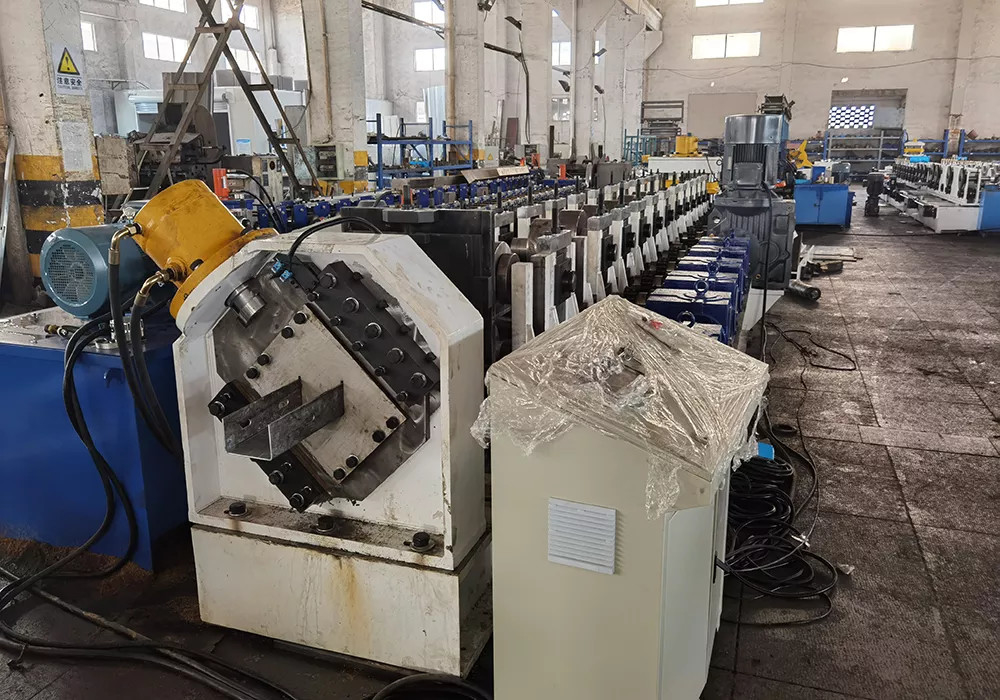

Production Line Of U Post Roll Forming Machine Higher Impact Endurance

Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.

It is a perfect combination of high quality material (including Q235, Q345, etc.) and excellent anti-rust zinc or PVC coating. All of these make it outstanding at long-term corrosion and rust resistance. Meanwhile, it costs effectively and is widely used as a visual and physical barrier for protection against run-off road collision. Additionally, it is often used as a specific signs for a transition to high speed roadways, bridges, etc.

Specification

No.	Item	Description
1	Coil	Q235MPA Steel
2	Material Thickness	3 mm
3	Working Speed	10- 15 m/min ( not including the cutting time)
4	Roller Station	13 Raws
5	Coil Width	≤400-600 mm
6	Length precision	±0.3mm/10m
7	Punching system	hydraulic punching ,punching press machine(option)
8	Cutting system	pre cutting,hydraulic post cutting,servo Tracking cutting
9	Inverter	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
10	PLC	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
