Standing Seam Galvanized Sheet Roof Roll Forming Machine For 0.5mm Thickness

galvanized sheet roof roll forming machine

0.5mm thickness roof roll forming machine

galvanized standing seam roll former

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Numer modelu:

610

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Formowanie rolek na rąbek stojący Mahine dla Indii

Surowiec:

PPGI/blacha ocynkowana

Grubość:

0,5-0,8 mm

Materiał wału:

materiał to stal kuta 45 #

Zapewniona obsługa posprzedażna:

Inżynierowie dostępni do serwisowania maszyn za granicą

Używać:

Listwa do gwoździ Panel zatrzaskowy na rąbek stojący

Stan:

Nowy

System sterowania:

PCL

Podkreślić:

galvanized sheet roof roll forming machine

0.5mm thickness roof roll forming machine

galvanized standing seam roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

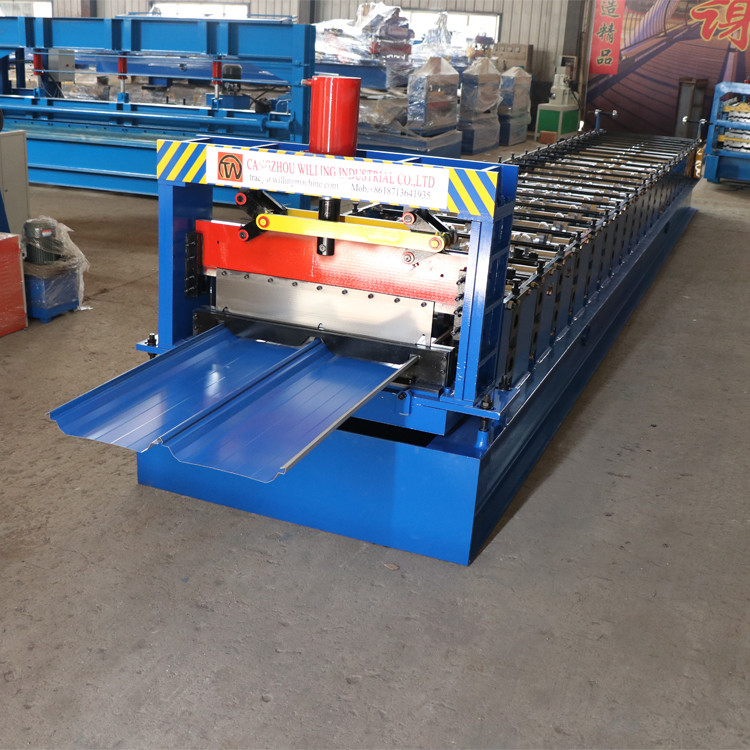

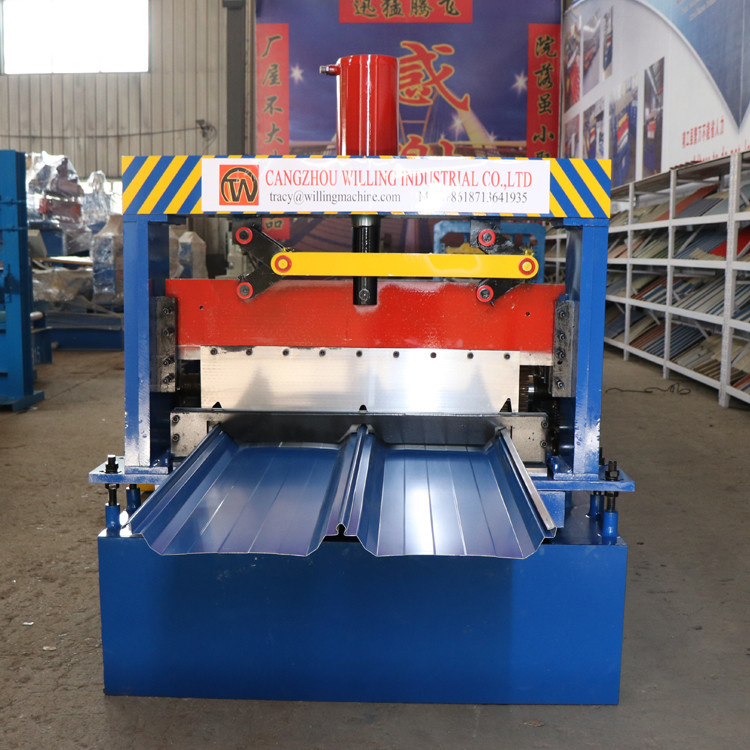

Standing Seam Roll Forming Mahine For India

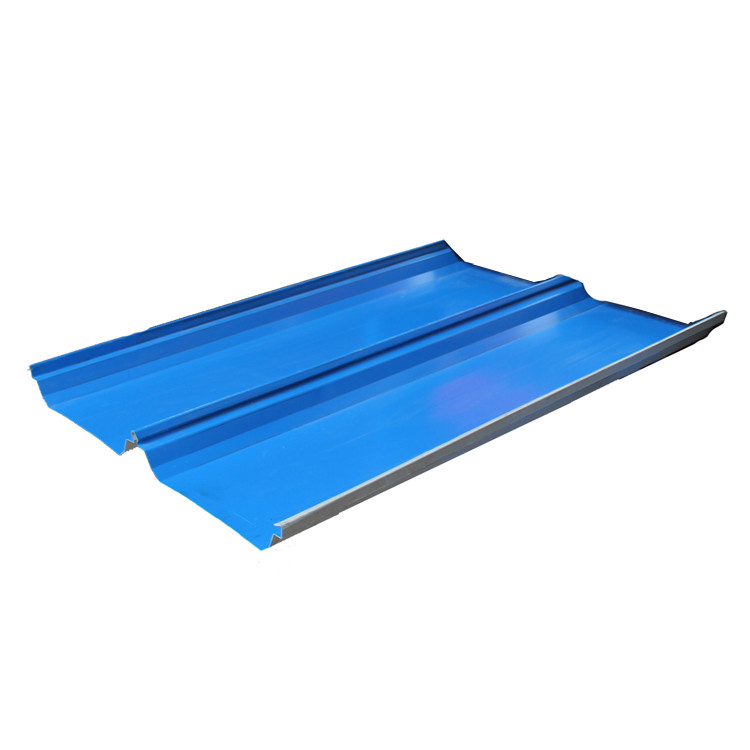

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.

Equipment Detailed Parameters:

No.	Item	Description
1	Coil width	About 610mm
2	Working Speed	8-15m/min (not including cutting time)
3	Roller Stations	20 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Hardness of roller	HRC 58-62
6	Material of Main Shaft	45# steel finishing machining and then slack quench processed
7	Material of Shaft	70 mm 45#steel forged
8	Main Motor Power	5.5 KW
9	Electrical Hydraulic Station Power	4 KW
10	Hydraulic Station Pressure	12.0 Mpa
11	Electrical Control System	PLC Panasonic
11	Material of Cutter	Cr12 MOV
12	Hardness of cutter	HRC:58-62
13	Driving Mode	single chain 1 inch
14	Material Thickness	0.5-0.8mm
17	Power Supply	415V, 50HZ, 3 PHASES
18	Cutting accuracy	±2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
