Name: Steel Framing Channel Galvalume Strut Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: W pełni automatyczna maszyna do płatwi kanałowych
Price: 32,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania płatwi CZ >

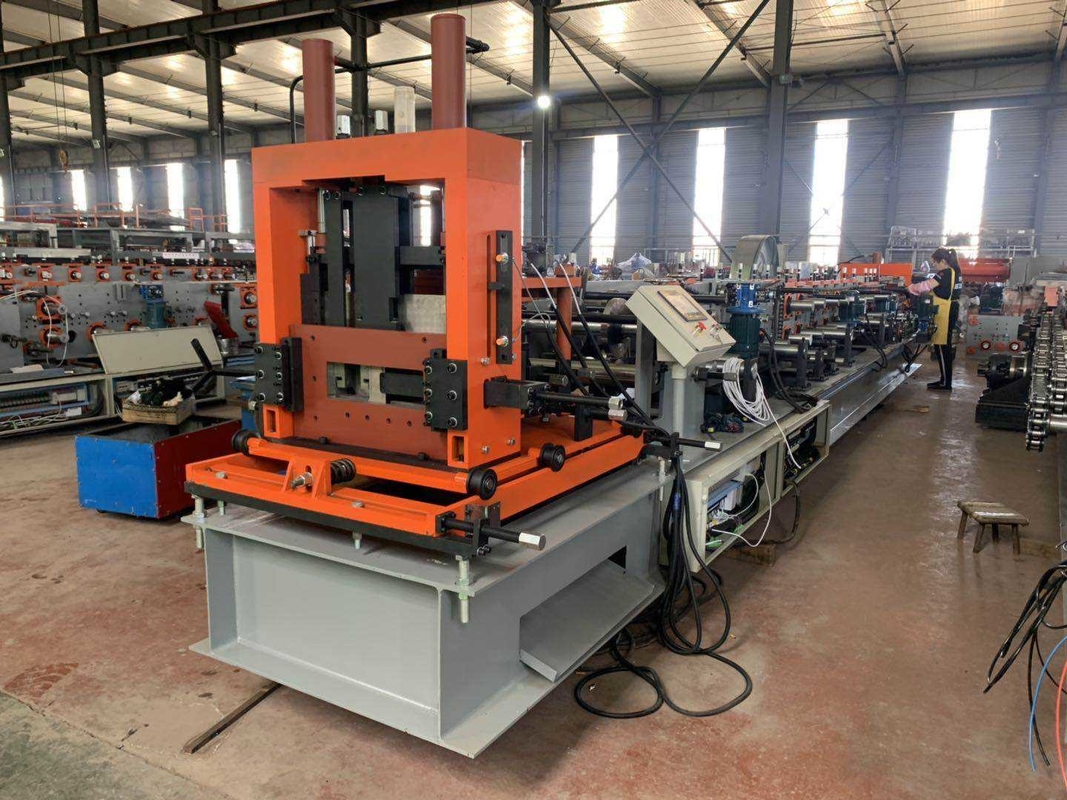

Steel Framing Channel Galvalume Strut Roll Forming Machine

steel framing strut roll forming machine

galvalume strut roll forming machine

steel framing channel roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

W pełni automatyczna maszyna do płatwi kanałowych

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Linie do formowania rolek ze stali konstrukcyjnej o wysokiej wytrzymałości Łatwa obsługa

Surowiec:

Galvalume, ocynkowane

Podstawowe komponenty:

PLC, silnik, łożysko, silnik, pompa

Zdolność produkcyjna:

8-12M/minutę

Woltaż:

380 V 50 Hz 3 fazy

Gwarancja:

1 rok

Kluczowy punkt sprzedaży:

Łatwy w obsłudze

Materiał wałka:

GCR15

Podkreślić:

steel framing strut roll forming machine

galvalume strut roll forming machine

steel framing channel roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

High Strength Steel Framing Channel Strut Roll Forming Lines Easy Operation

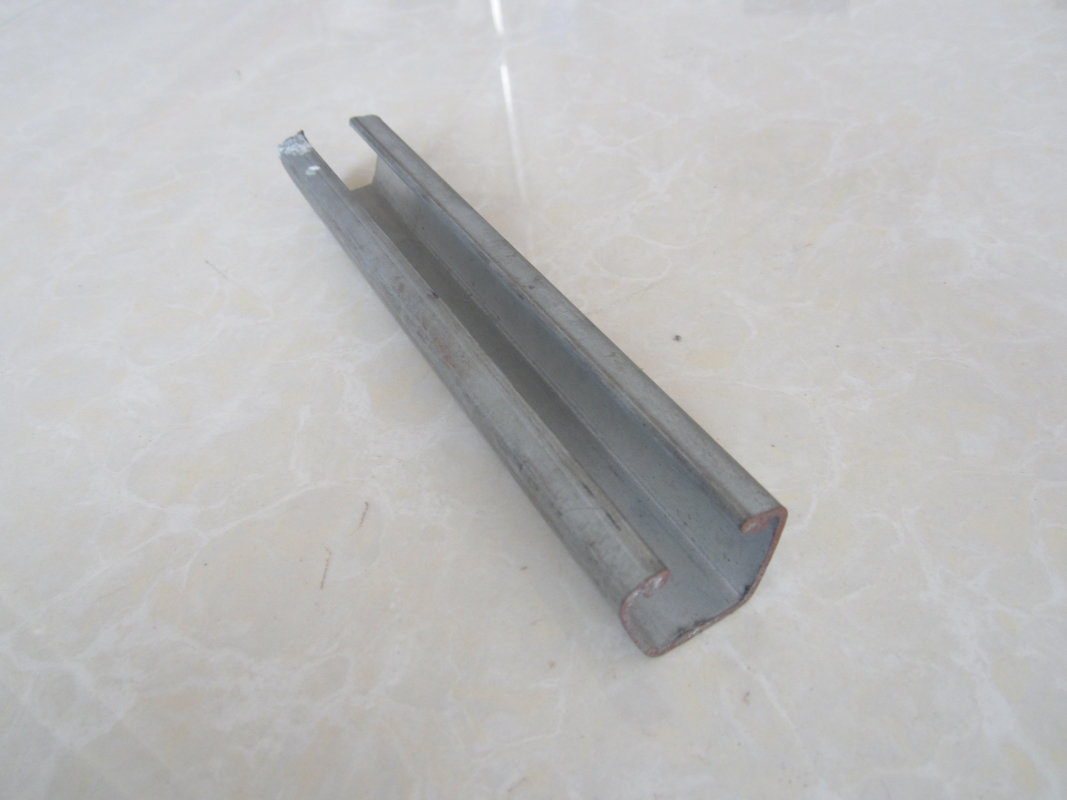

Channels are secondary steel framing members that serve as a receiver channel at the end of Zee Purlin. They can also be used for a number of other applications either alone or welded back-to-back. Available in red oxide or galvanized, Channels are standard at 20′ long, though some locations can cut to length.

Specification

1	Suitable to process	Color steel plate
2	Width of the purlin	80-300mm
3	Thickness of the plate	1.5-3mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	15 rows
6	Diameter of the roller	85 mm
7	Rolling material	Cr15
8	Main motor power	22kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	22kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
