Prepainted Galvanized Steel Floor Deck Roll Forming Machine

prepainted floor deck roll forming machine

galvanized floor deck roll forming machine

prepainted deck floor roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Producent linii do formowania rolek ze stali ocynkowanej

Rozmiar:

380 V/50 Hz, 3 fazy lub na żądanie

Waga:

8000 kg

Typ cięcia:

Cięcie hydrauliczne

System sterowania:

Silnik, pompa, silnik, sterownik PLC

Kluczowe punkty sprzedaży:

Długie życie

Szerokość karmienia:

1200 mm

Materiał rolek:

Stal #45 z twardą powłoką chromową

sposób cięcia:

Cięcie hydrauliczne

Grubość rolki:

0,8-1,5 mm

Podkreślić:

prepainted floor deck roll forming machine

galvanized floor deck roll forming machine

prepainted deck floor roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Uzyskaj najlepszą cenę

Wideo

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Uzyskaj najlepszą cenę

Wideo

Decking Flooring Board 1.2mm Floor Tile Making Machine

Uzyskaj najlepszą cenę

Wideo

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Galvanized Steel Floor Decking Roll Forming Lines Manufacturer

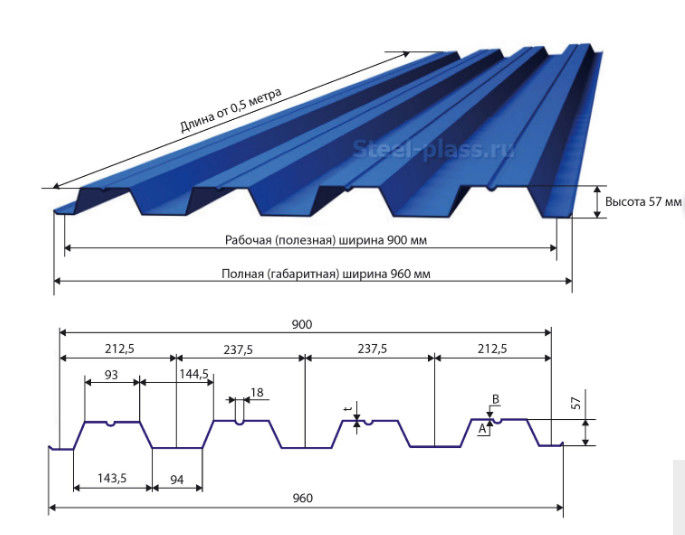

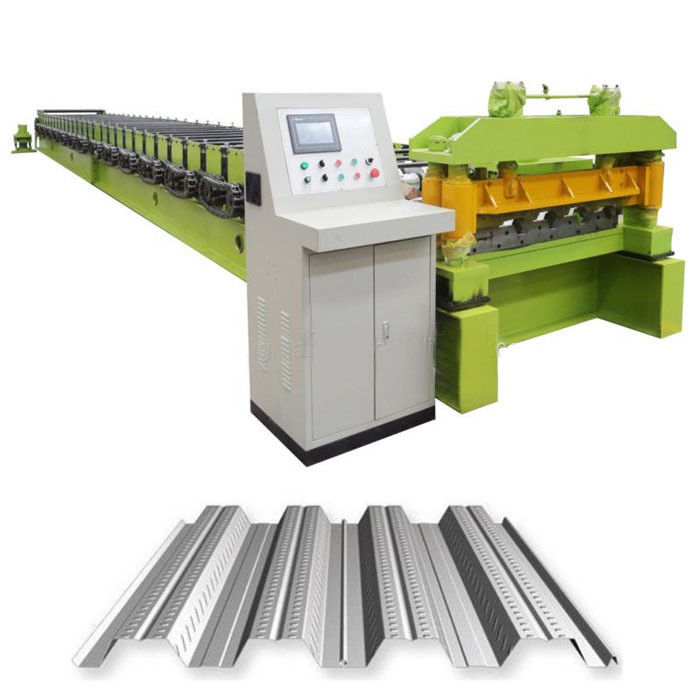

The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.

Specification

Suitable Material
Material Width		1000/1250mm
Effective Width		600/850/915 mm
Material Thickness		0.8-1.5mm
Material Type		Galvanized Steel Strip,Prepainted Galvanised Steel
Yeild Strength		245Mpa
Main Machine
Size shaft diameter		95mm
Wall Panel Thickness		18mm
Base Specification		H446*199
Main Motor		37KW hydraulic system
Forming Speed		0-10m /min
Forming Station		33 Stations
Blade Material		Cr12(Die Steel)
Roller Material		45# steel,CNC lathes, Heat Treated,hard Chrome Coated
Mode of Speed Regulation		AC Inverter Speed Regulation
Driving Mode		Reduction Motor + Chain Transmission
Cutting Mode		Hydraulic Type,Post-cutting
Cutting Motor		Hydra station/hydraulic motor
Measuring Mode		Photoelectric Encoder
Control Mode		PLC
Operation Mode		Button+Touch Screen
Voltage		380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension		15 M1.5M1.3M
Machine Weight		16500KG(15500KG)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
