Name: Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 840/850
Price: 15000.00 USD
Availability: InStock

Do domu > produkty > dwuwarstwowa maszyna do formowania rolek >

Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer

12m/min double layer roll forming machine

roof panel roll former double layer

corrugated roof panel roll former

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Numer modelu:

840/850

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Surowiec:

PPGI/blacha ocynkowana

Zdolność produkcyjna:

8-12m/min

Wymiar (L*W*H):

Około 8600 mm * 1550 mm * 1510 mm

Grubość rolki:

0,3-0,8 mm

Typ cięcia:

Cięcie hydrauliczne

Podstawowe komponenty:

Silnik, pompa, sterownik PLC

Waga:

7000 kg

Woltaż:

380 V 50 Hz 3 fazy lub obsługa klienta

Podkreślić:

12m/min double layer roll forming machine

roof panel roll former double layer

corrugated roof panel roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory priceDouble Layer Roof sheetForming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

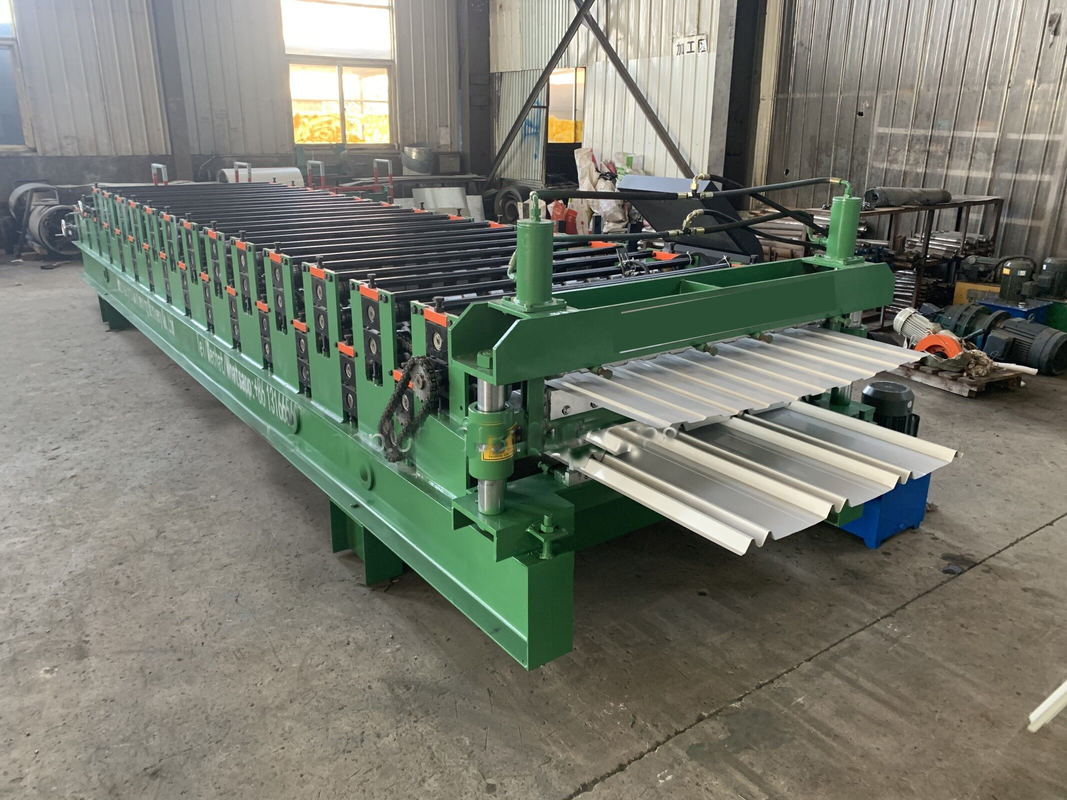

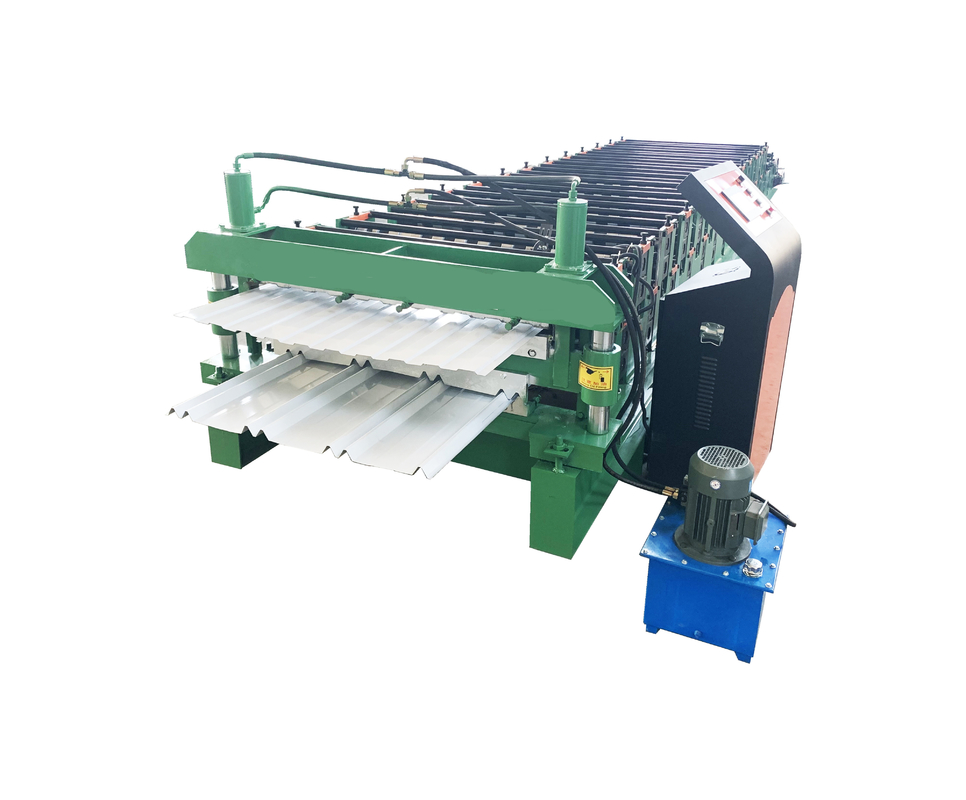

IBR And Corrugated Double Layer Roll Forming Machine For Sri Lanka

Double Layer Aluminium Roofing Sheet Roll Forming Machine can produce two different shape of metal roof tile. In this way, it can save cost and space . If customer's capital and space of workshop are limited, this machine will be a best choose . This machine suitable both Aluminium and colour steel, as to the aluminium is very soft, it need high accuracy of rollers and cutter to make sure the finished roof tile perfect..

Detailed Parameters:

No.	Type		Specification
1	Raw Material	Type	Colored steel plate, galvanized board
		Feeding width	According to requirement
		Thickness	0.3-0.8mm
2	Main body	Roller station	Up layer 12 steps , down layer 16 steps (According to the profile)
		Diameter of shaft	75mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	350H steel
		Frame thickenss	18 mm
		Operation	Manual and Automatic
		Working speed	8~12 m/min
		Size (LWH)	About 960015501510mm
		Weight	About 9 Tons
		Cutting type	Hydraulic cutting
		Material of blade	Cr12
3	Power	Motor power	5.5 kw
		Hydraulic power	4 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
