Color Stone Coated 0.32mm Roof Tile Production Line Servo Motor

0.32mm roof tile production line

servo motor roof tile production line

stone coated roof tile production line

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Linia do produkcji dachówek pokrytych kolorem kamienia

Zdolność produkcyjna:

6-10 SZT./MIN

Moc:

113KW

Wymiar (L*W*H):

65*1,35*1,2 m

część druga:

maszyna do wycinania kształtów

część czwarta:

automatyczna dolna sekcja natryskiwania kleju

Gwarancja:

1 rok

Grubość stalowni:

0,32-0,50 mm

Podkreślić:

0.32mm roof tile production line

servo motor roof tile production line

stone coated roof tile production line

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Uzyskaj najlepszą cenę

Wideo

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Wideo

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

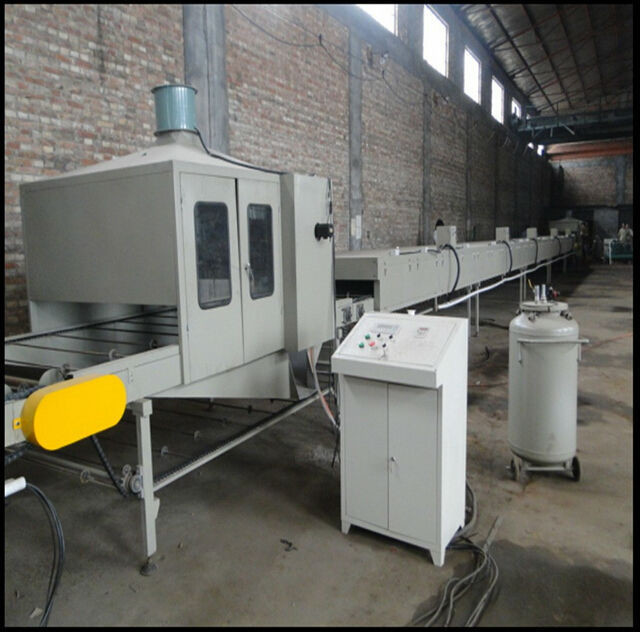

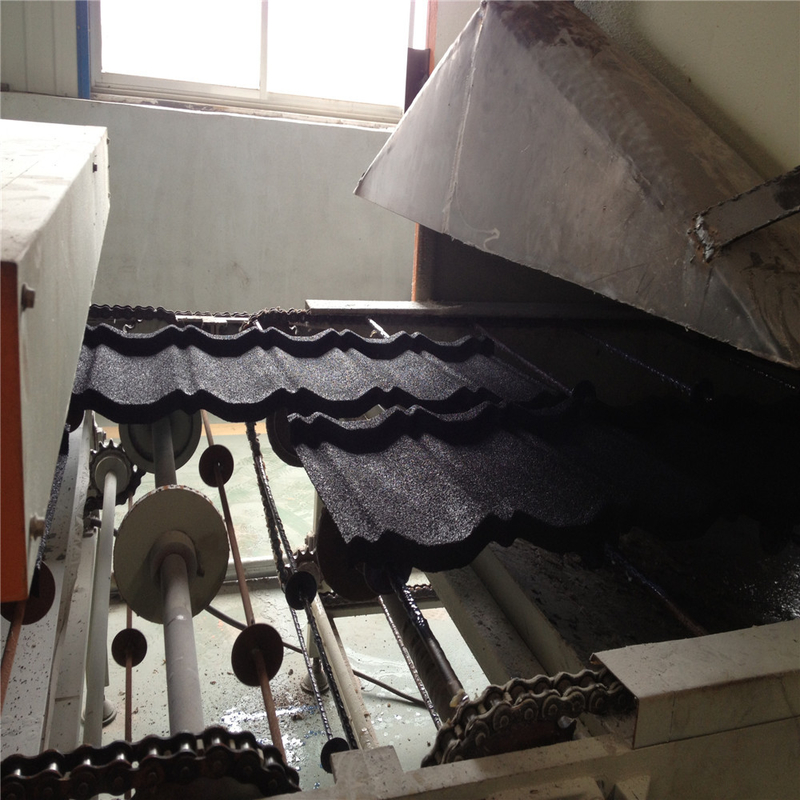

Color Stone Coated Roof Tile Production Line

One benefit of stone coated metal roofing tiles is to protect your home from UV rays and keep it fresher in summer, which means that you spend less money on cooling your home.

The stone coated metal roofing tiles are main commonly used abroad because of their aesthetic look. Stone coated roofing tiles are made up of an Aluminium – zinc alloy coated with naturally mined granules. They come in a variety of profiles. Three common profiles are the shingle, classic and shake profiles.

Specification

Appearance size	400010002000mm
Driving section	3KW Excitation motor or frequency speed regulation (AS per customers’ requirements )
Automatic pressure spray tank	1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Automatic glue machine motor	Servo motor ; Power: 750w ; PLC
Automatic spray gun	4 set (spare parts)
Dust collecting fan	1 set ; Power: 200w
Damp proof lamp	1 pc ; Power: 100w
Conveying device	Chain reciprocating
Air compressor	1 set ; Power: 7.5kw
Dust control of axial flow fan	1 set ; Power: 200w
Agitator	1 set ; Power: 1.5kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
