Metal Profile Chain Driving Cz Purlin Roll Forming Machine Small Automatic

small cz purlin roll forming machine

cz purlin roll forming machine automatic

chain driving cz purlin machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek z metalowym profilem C, mała automatyczna

Waga:

Około 4,5 tony

Pojemność:

8-12m/min

Typ cięcia:

Cięcie hydrauliczne

System sterowania:

PLC

Kluczowe punkty sprzedaży:

Automatyczny

Grubość rolki:

1-3 mm

Podkreślić:

small cz purlin roll forming machine

cz purlin roll forming machine automatic

chain driving cz purlin machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

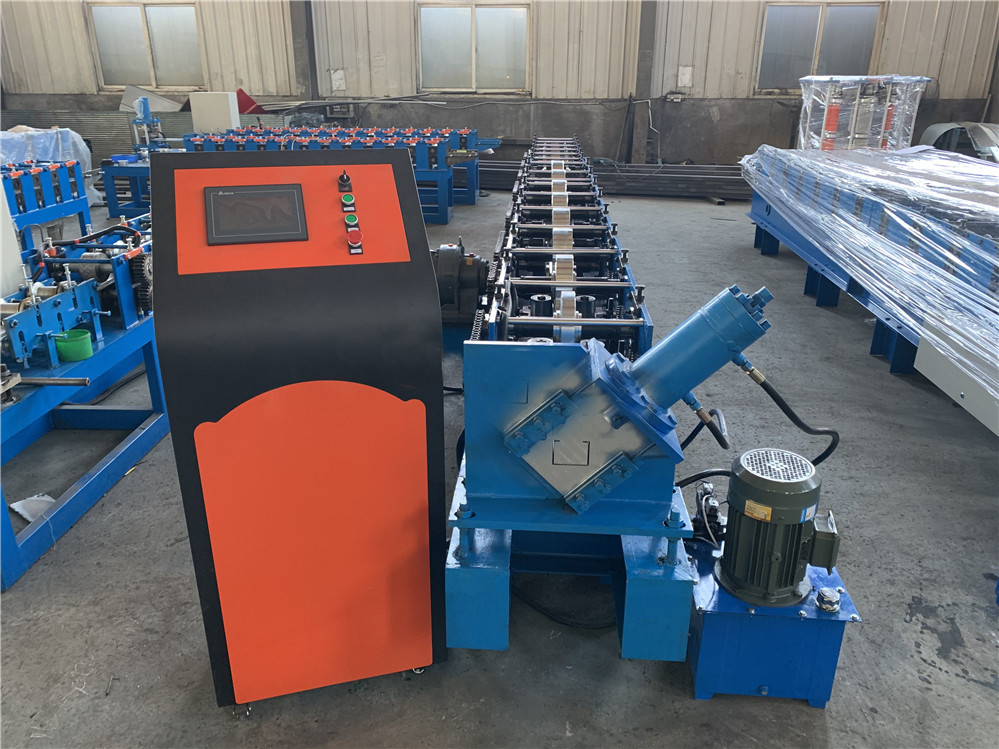

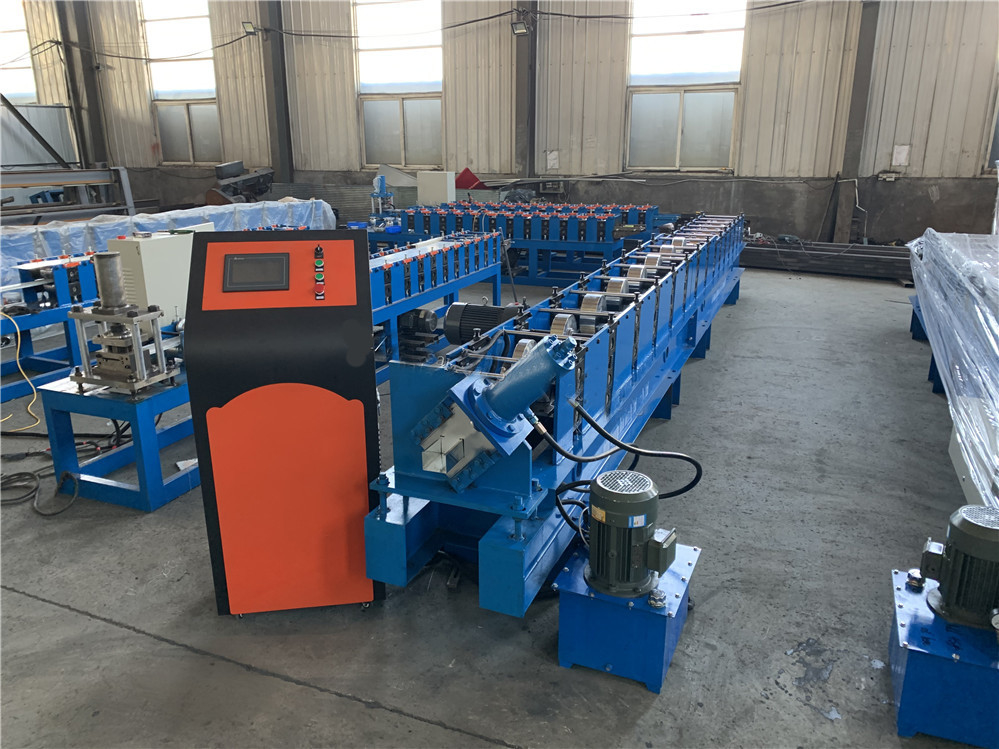

Metal C Profile Purlins Roll Forming Machine Small Automatic
his C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The whole line of Multy Size Galvanized Steel C Channel Purlin Roll Forming Machine mian inculd five part, they are decoiler, main roll forming machine , PLC control system, Cutting system and product receiving table.C purlin is widly used in large-scal steel structure, such as warehouse, workshop and so on. It has a large marke

specifications

No.	Type		Specification
1	Row Material	Type	Colored steel plate, galvanized board
		Feeding width	According to the size of C purlin
		Thickness	1.5-3mm
2	Main body	Roller station	15 steps (According to the profile)
		Diameter of shaft	90mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	300mm H Steel
		Frame thickenss	16 mm
		Operation	Manual and Automatic
		Working speed	8-12 m/min
		Size (LWH)	About 76009501510mm
		Weight	About 4.5 Tons
		Cutting type	Hydraulic cutting
		Material of blade	Cr12
3	Power	Motor power	7.5 kw
		Hydraulic power	5.5 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
