Name: Highspeed Automatic Forming Machine Furring Omega Channel Making Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Omega
Price: 40,500.00 USD
Availability: InStock

Do domu > produkty > Maszyna do tworzenia rolki z kołkami i ścieżkami >

Highspeed Automatic Forming Machine Furring Omega Channel Making Plc Control

plc control automatic forming machine

furring omega channel automatic forming machine

plc light keel roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Omega

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Automatyczna maszyna do formowania kanałów Omega o dużej prędkości, sterowanie PCL

Surowiec:

PL, GL, PPGL, PPGI

Rama korpusu maszyny:

Brama

Materiał rolkowy:

CR12

Liczba etapów formowania:

12 stopni z 2 wałkami poziomującymi

Średnica wału:

40mm

Główny silnik:

4KW

Prędkość:

25m/min

Podkreślić:

plc control automatic forming machine

furring omega channel automatic forming machine

plc light keel roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

Uzyskaj najlepszą cenę

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

Uzyskaj najlepszą cenę

Roller Fixer Guide Column CU stud for Long-lasting Roofing

Uzyskaj najlepszą cenę

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

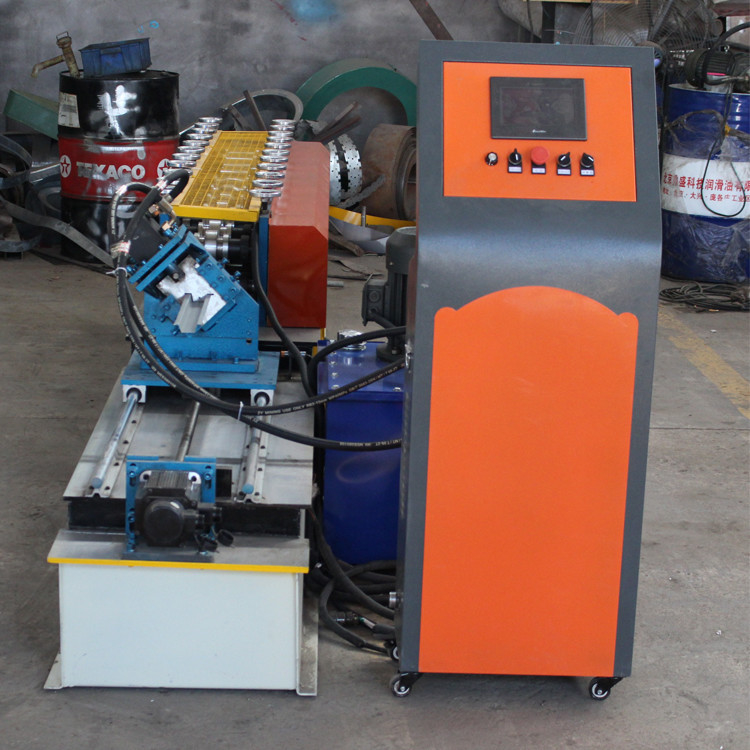

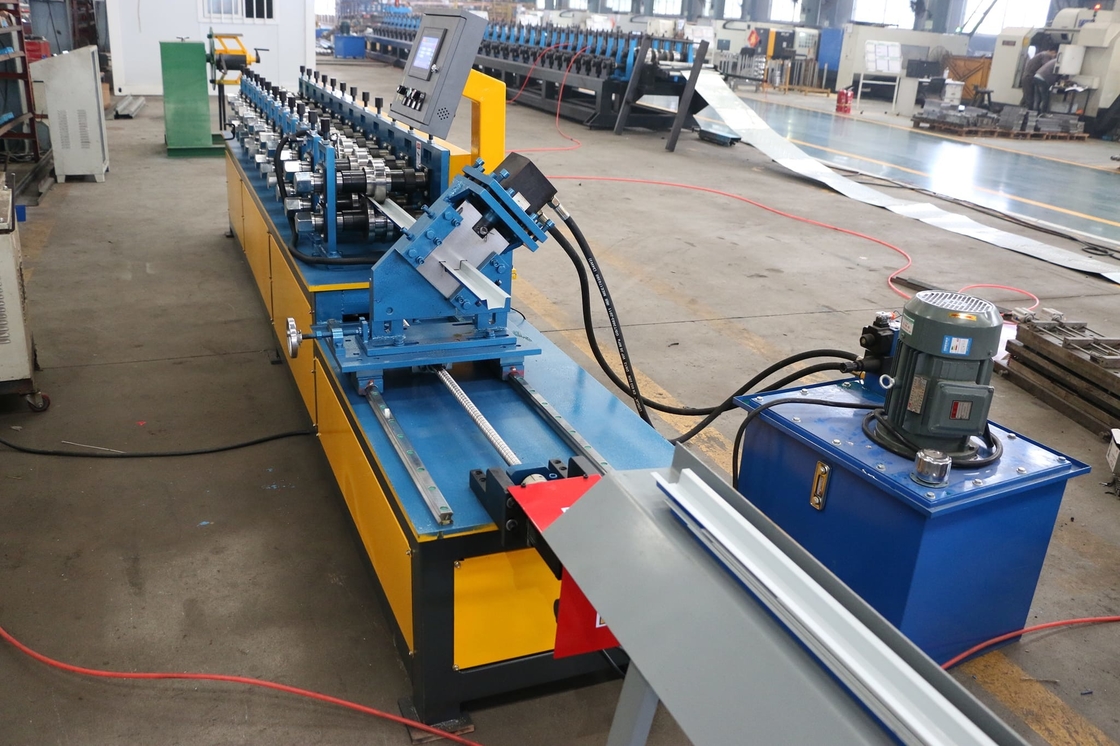

Automatic Highspeed Furring Omega Channel Making Forming Machine PCL Control

Omega in one roll forming machine, It can work separately because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency.

Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so Omega shaped steel is widely used in real life.

Specification

No.	Item	Description
1	Core Components	Motor, Engine, PLC
2	Shaft material	45#steel hardening and tempering
3	Cutting Mode	Hydraulic Cutting
4	Cutter Material	Cr12
5	Cutting length tolerance	±1mm
6	Production Capacity	0-50m/min
7	Dimension(LWH)	110008001600Mm
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 50HZ, 3 PHASES
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
