Color Steel Plate 3mm C Purlin Roll Forming Machine / Cold Roll Forming Equipment

3mm c purlin roll forming machine

cold c purlin roll forming machine

3mm cold roll forming equipment

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nadaje się do obróbki:

Kolor stalowy

Kluczowe punkty sprzedaży:

Wysoka dokładność

Zdolność produkcyjna:

10-20 m/min

Grubość materiału:

1-3 mm

Ostrze:

na życzenie kupującego

System sterowania:

Sterowanie komputerem PLC z falownikiem

Moc pompy:

5,5 kW

Rama:

Stal 400H

Podkreślić:

3mm c purlin roll forming machine

cold c purlin roll forming machine

3mm cold roll forming equipment

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

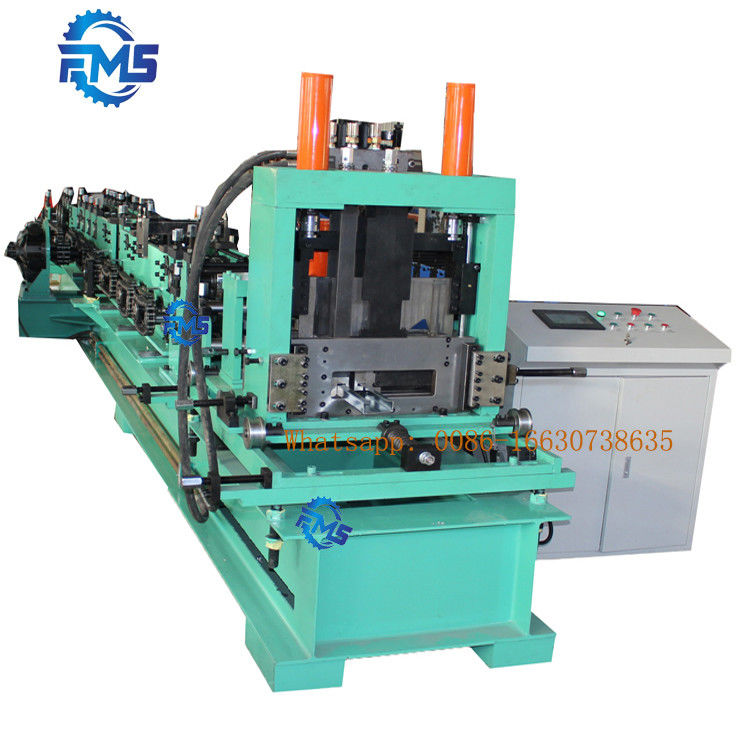

Color Steel Plate C Purlin Roll Forming Machine Cold Roll Forming Equipment

C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel/colored steel coil
2	Material thickness:	1.5-3.5mm
3	Capacity:	10-20m/min
4	The weight:	2-8 ton
5	Main motor power:	15kw
6	Pump power:	5.5kw
7	Shaft diameter:	80mm
8	Forming steps:	9+13+2 steps
9	Roller material:	bearing steel
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
