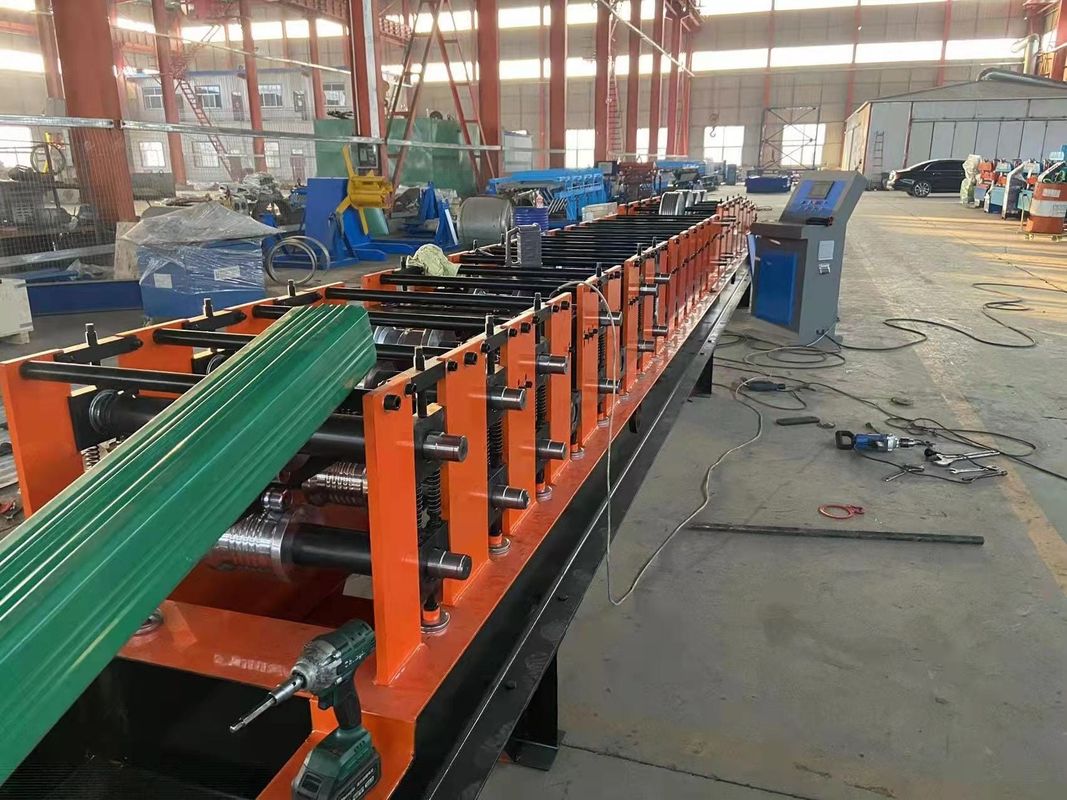

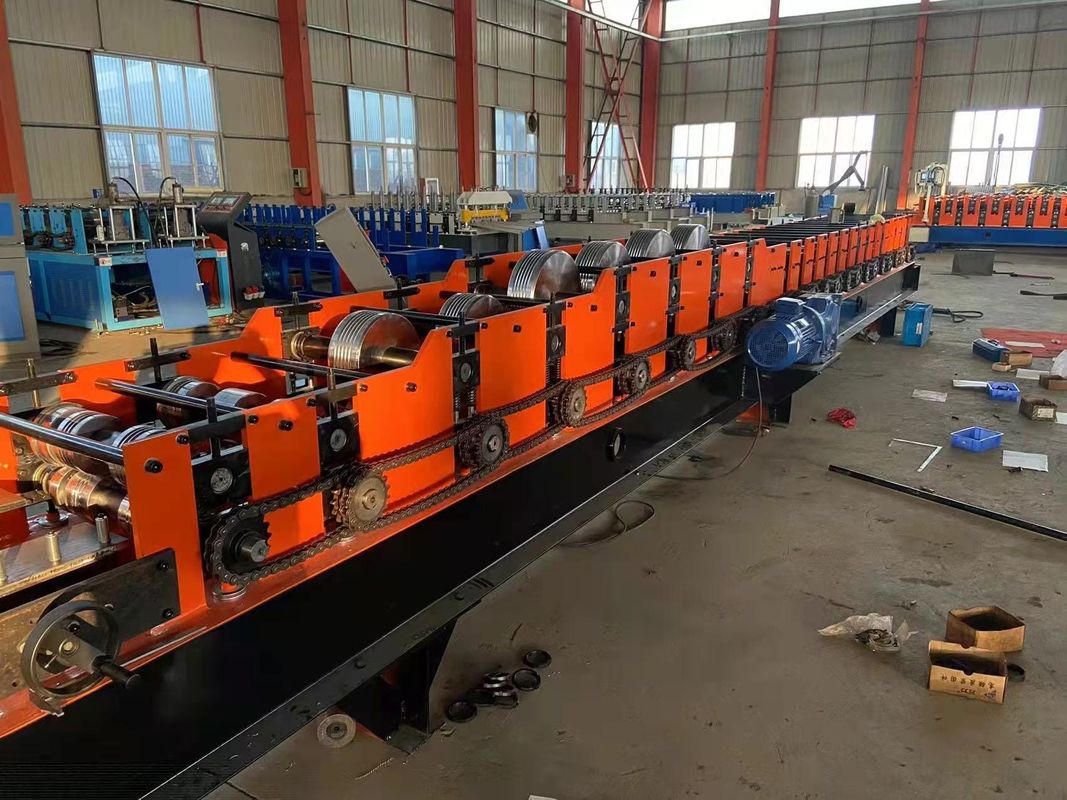

Downspouts cold roll forming Machine Metal Shaping
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
This equipment has high output efficiency. The gutter board produced by it has a flat surface, no scratches, easy installation, light volume, and low site requirements. It is one of the best-selling versions in the US market.
| No. |
Downspouts cold roll forming Machine Metal Shaping |
| 1 |
Suitable to process |
Color steel plate |
| 2 |
Width of the plate |
330mm |
| 3 |
Rollers |
15rows |
| 4 |
Dimensions |
7400*1150*1510mm |
| 5 |
Power |
5.5+4kw |
| 6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
| 6 |
Thickness of the plate |
0.3-0.6mm |
| 7 |
Productivity |
8-10m/min |
| 8 |
Diameter of the roller |
Φ66mm |
| 9 |
Voltage |
380V 50Hz 3phases |
| 10 |
Material of the cutting plate |
Cr12 |
| 11 |
Hydraulic |
40# |
| 12 |
Processing precision |
Within 1.00mm |
| 13 |
Control system |
PLC control |
|
Application
This produc has the advantages of easy installation, short construction period, beautiful appearance, light weight but high strength.so it's widely used in roofs and walls of factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters, etc.
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms and delivery
40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
