Name: Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Met dachówka/glazura
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic

corrugated color steel roll forming machine

fullautomatic color steel roll forming machine

three layer corrugated roll former

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Met dachówka/glazura

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Trójwarstwowa maszyna do formowania rolek W pełni automatyczna

Typ płytek:

Kolorowa stal

Woltaż:

380 V 50 HZ 3 fazy lub inne

Podstawowe komponenty:

Silnik, pompa, sterownik PLC

Moc silnika:

4KW

ostrze tnące:

Cr12Mov z hartowaniem

System cięcia:

Hydrauliczny system cięcia po uformowaniu

Wymiar (L*W*H):

7000 mm * 1500 mm * 1700 mm

Grubość rolki:

0,3-0,8 mm

System sterowania:

W pełni automatyczne

Podkreślić:

corrugated color steel roll forming machine

fullautomatic color steel roll forming machine

three layer corrugated roll former

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

35 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P.

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

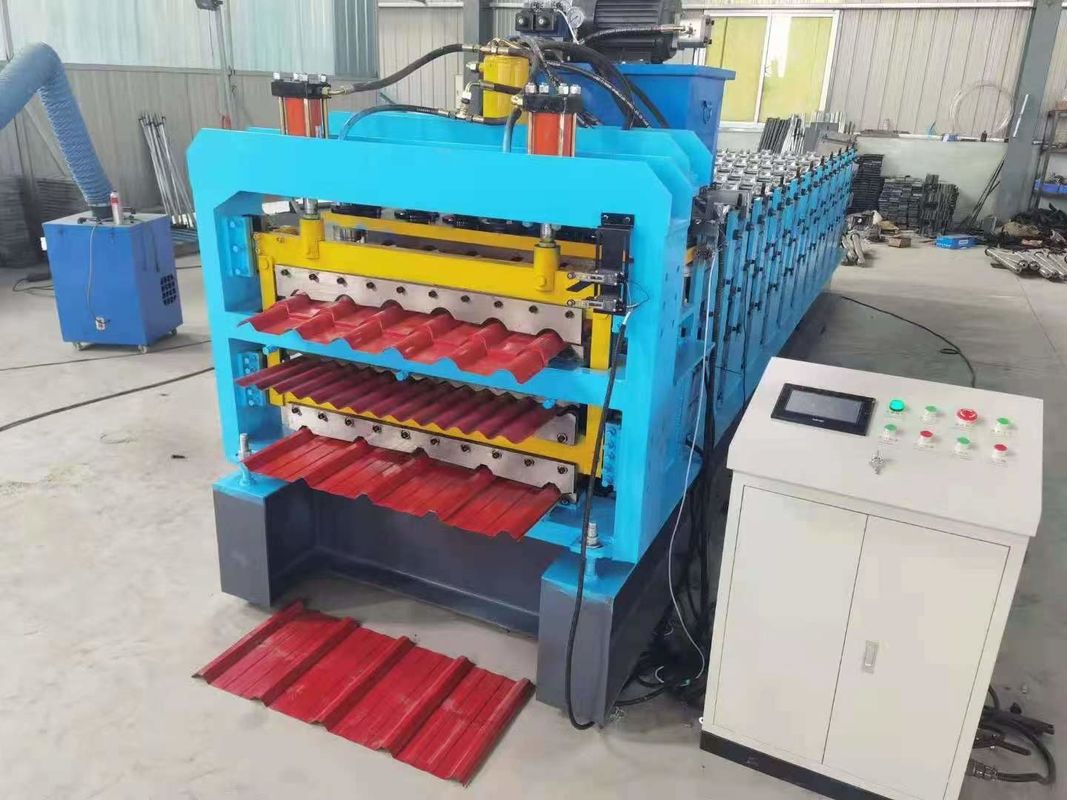

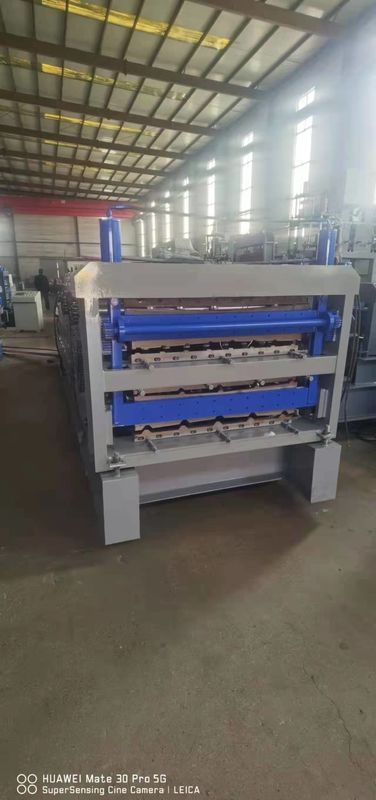

Three layer roll forming machine Full automatic

Color painted steel three layer roofing roll forming machine is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

Specification

Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm)	0.3-1.0mm or as your customized
Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts	45# steel
Diameter of shafts	70mm or as your customized
Forming speed	8-12 m/min or as your customized
Under frame	350 H-beam
Sidewall	16mm
Connect bar	25mm, zinc plated
Forming steps	10-18 or as your customized
Control system	Delta PLC and Inverter
Suitable power	380V, 50 Hz, 3 phase or according to your need
Drive mode	Chain and sprocket, chain size 1 inch
Main motor	3-5.5kw
Hydraulic pump station	3-5.5kw
Cutting model	Hydraulic profile cutting
Dimension of the machine	7.5m-11m×1.5mm×1.2m
Weight of the machine	3.5 ton -6 ton

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
