Name: Hydraulic Crimping Color Gl Steel Roof Sheet Making Machine Curving Vertical
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Zakrzywiony dach łukowy
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Hydraulic Crimping Color Gl Steel Roof Sheet Making Machine Curving Vertical

gl steel roof sheet making machine

crimping steel roof sheet making machine

gl metal roofing sheet forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU WILLING

Orzecznictwo:

ISO CE

Numer modelu:

Zakrzywiony dach łukowy

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Pionowa hydrauliczna maszyna do zaginania dachów ze stali kolorowej

Surowiec:

PPGL, GL, PPGI, GI,

Wymiar (L*W*H):

2050*1500*1300

Grubość rolki:

0,3-0,8 mm

Materiał wału:

45 # Stalowa średnica zewnętrzna: 70 mm

Rama główna:

Stal 350H

System sterowania:

PLC

Woltaż:

220 V/380 V/440 V.

Podkreślić:

gl steel roof sheet making machine

crimping steel roof sheet making machine

gl metal roofing sheet forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

40 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

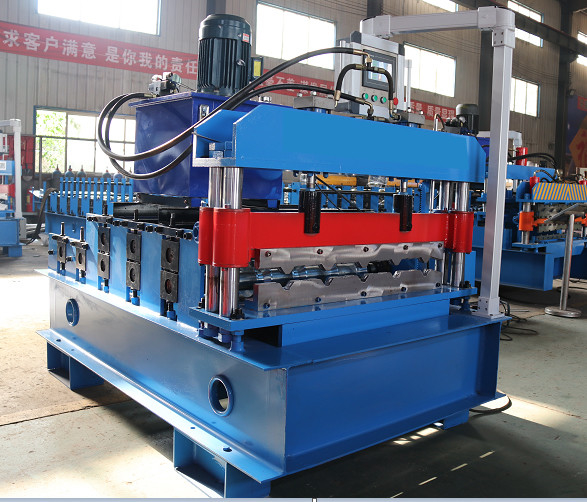

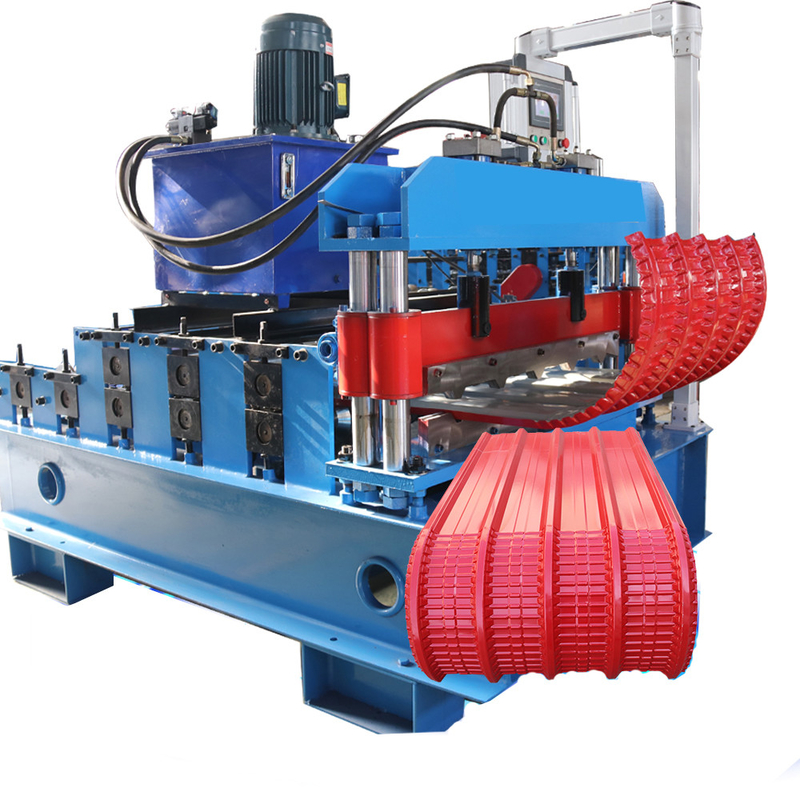

Vertical Hydraulic Crimping Color Steel Roof Curving Machine

This stand seam roof curving machine is for curving the stand seam roof into concave and convex shape, 3 steps roll forming and choose gear transmission. It can both curve aluminum sheet and metal steel shee, this type of standidng roof can build more beautiful steel house and big sport hall. So small design, you can take this machine for your steel building project anywhere.

Specification

Product name	Color Steel Roof Curving Machine
Size	15008502000mm
Weight	1200KGS
Voltage	380V/50HZ/3PH
Motor Power	4KW
Hydraulic Power	3KW
Motor for changing models Power	0.37KW
Curved Thickness for Aluminum	0.8-1.2mm
Curved Thickness for Steel	0.7-1.0mm
Width of straight roofing to curve	300mm to 600mm
Min.Width of Tapered Roofing to Curved	250mm
Max.Width of Tapered Roofing to Curved	500mm
Working Speed	10-16m/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
