C Shape Garages Purlin Rolling Machine Automatic With Plc System

garages purlin rolling machine

plc system purlin rolling machine

galvalume automatic c purlin roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE,ISO

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania płatwi w kształcie litery C z systemem PLC

Kluczowe punkty sprzedaży:

Automatyczny

Grubość rolki:

0,3-0,8 mm

Typ cięcia:

Cięcie hydrauliczne

System sterowania:

PLC

Woltaż:

380 V.

Gwarancja:

1 rok

Podkreślić:

garages purlin rolling machine

plc system purlin rolling machine

galvalume automatic c purlin roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni

Zasady płatności

T/T, Western Union, L/C

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Uzyskaj najlepszą cenę

Wideo

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Uzyskaj najlepszą cenę

Wideo

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

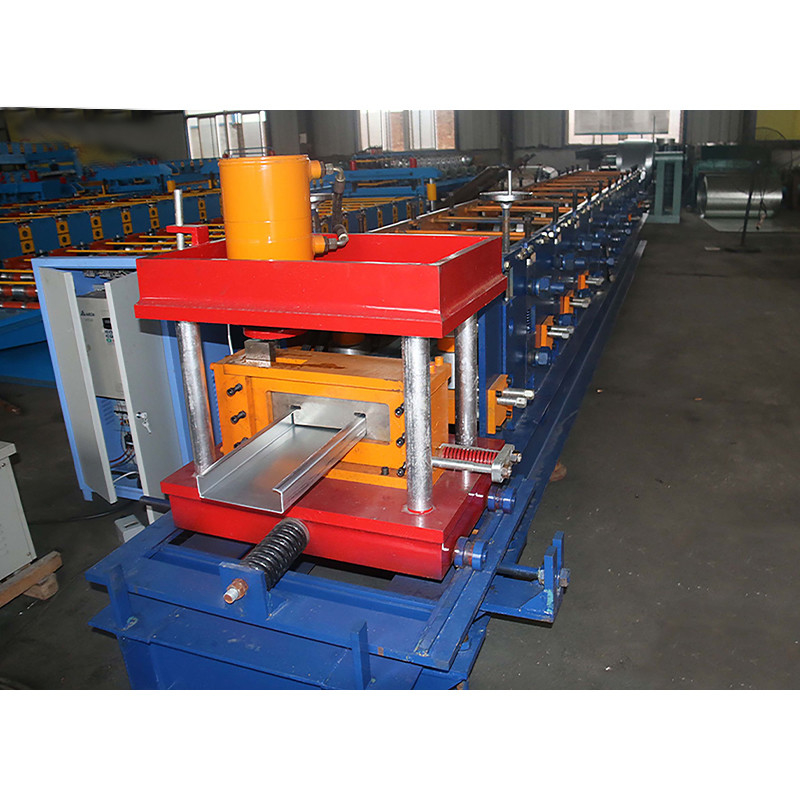

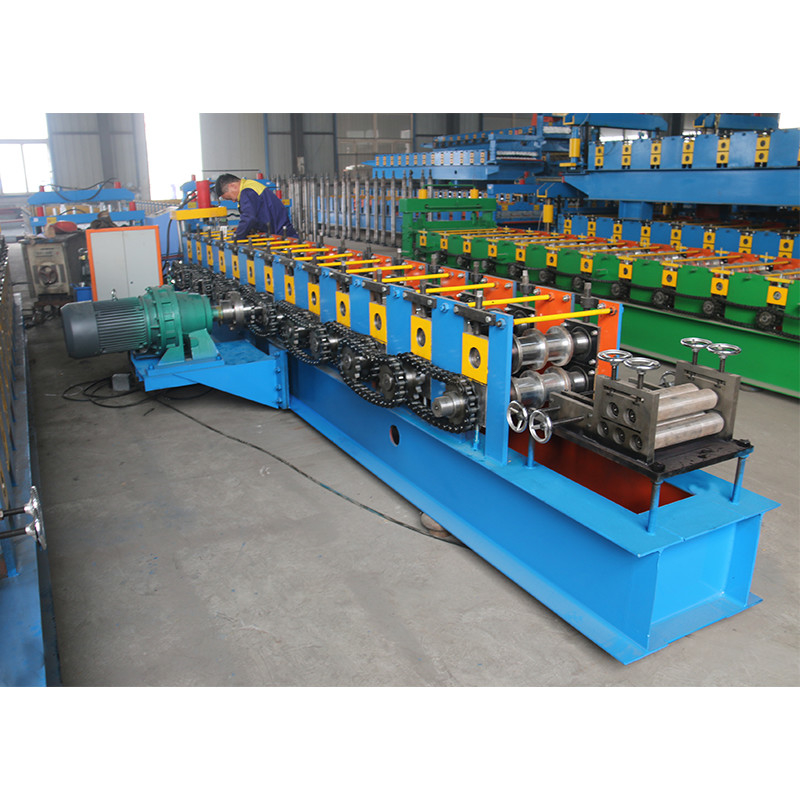

C Shape Purlin Roll Forming Machine with PLC System

C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The structural C and Z purlins are used in industrial buildings, garages, verandas, and carports; or anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.

specifications

Main structure of the machine	400 H steel
Side panel of machine	20mm( A3 steel)
Rollers	18rollers+ leveling shaft+straightening shaft
Diameter of the shaft	Φ80mm
Rolling materials	GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
Diameter of the shaft	Φ80mm
Shaft material	40Cr Modulation of heat treatment after polishing hard chromium plating
Operating Mode	Automatic CZ Free Replacement By Motor Drive
Main Motor size	Hydraulic Motor pump station 25Kw
Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
