Name: 76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: rynna
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic

rectangular downpipe forming machine

76.2 * 101.6mm downpipe forming machine

full automatic square downspout machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

rynna

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyny do formowania rolek prostokątnych o wymiarach 76,2 * 101,6 mm W pełni automatyczne

Typ:

Automatyczny

Woltaż:

380 V 50 Hz 3 fazy

Metoda cięcia:

Płuczna piła

System sterowania:

Sterowanie PLC

Grubość płyty:

0,3-0,6 mm

Materiał płyty tnącej:

CR12

Wymiary:

7,4*1,15*1,51 m

Hydrauliczny:

40#

Moc:

5,5+4KW

Podkreślić:

rectangular downpipe forming machine

76.2 * 101.6mm downpipe forming machine

full automatic square downspout machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

76.2 * 101.6mm Rectangular Downspout Roll Forming Machinery Full Automatic

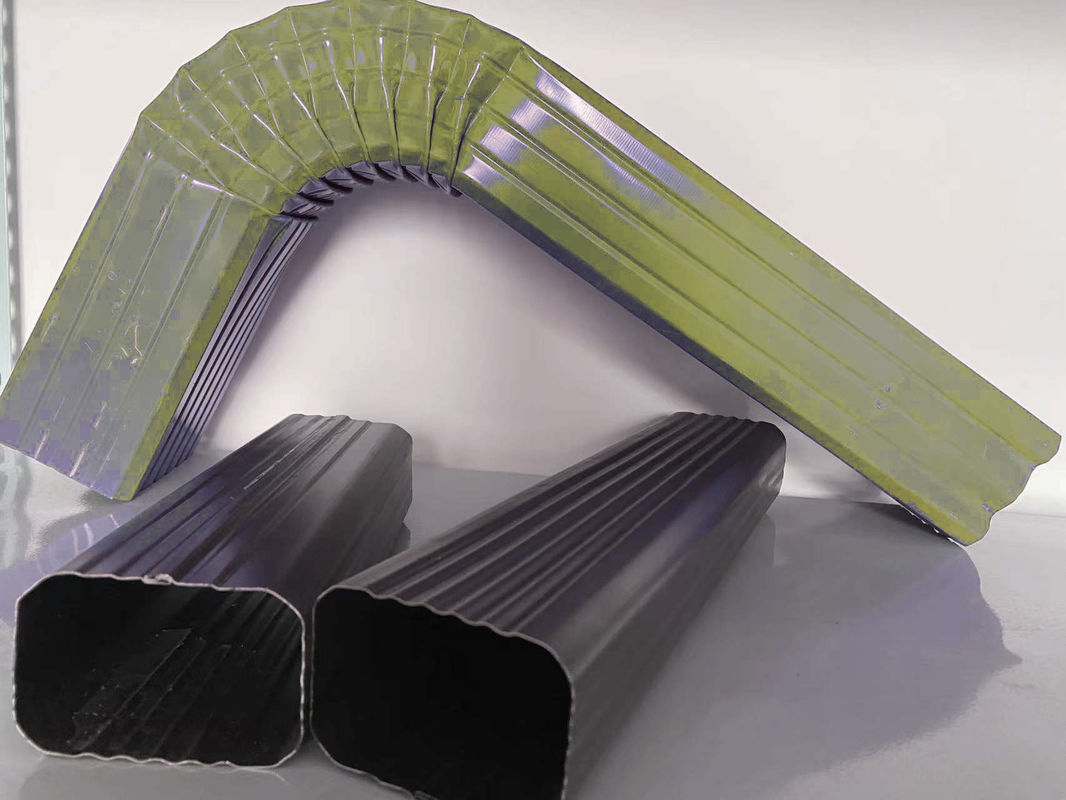

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Specification

No.	Main parameter of Downspout Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	330mm
3	Rollers	15rows
4	Dimensions	740011501510mm
5	Power	5.5+4kw
6	Rolling material	high grade 45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ66mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Application

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms and delivery

40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
