Name: Tube And Pipe 2.5mm Gutter Downspout Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: rynna
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Tube And Pipe 2.5mm Gutter Downspout Roll Forming Machine

2.5mm gutter downspout roll forming machine

aluminum gutter downspout roll forming machine

2.5mm gutter downspout machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

rynna

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Linia produkcyjna do formowania rolek rur i rur spustowych

Typ:

Automatyczny

Woltaż:

380V, 380V 50Hz

Metoda cięcia:

Płuczna piła

System sterowania:

Sterowanie PLC

Zdolność produkcyjna:

10-15m/min

Materiał płyty tnącej:

CR12

Moc:

7,5 kW

Podkreślić:

2.5mm gutter downspout roll forming machine

aluminum gutter downspout roll forming machine

2.5mm gutter downspout machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

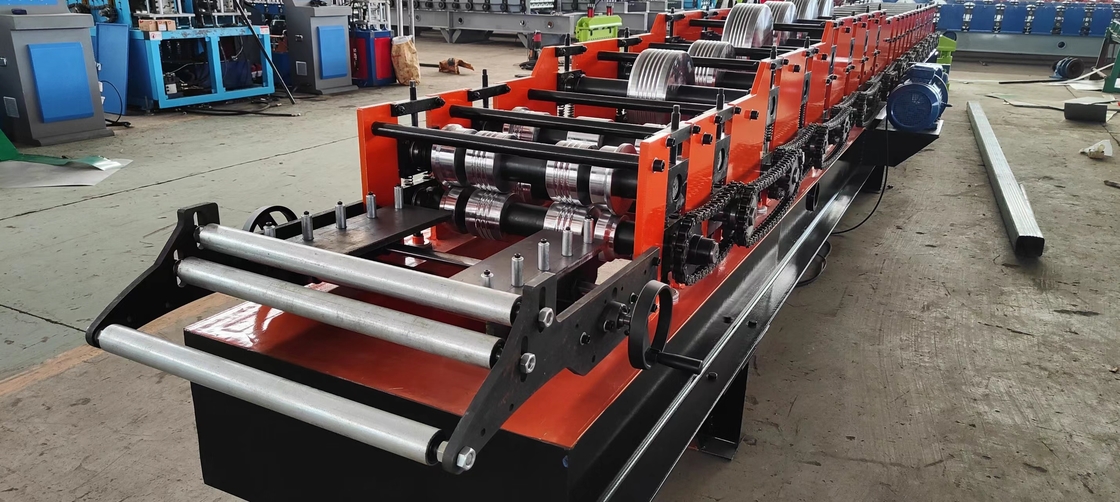

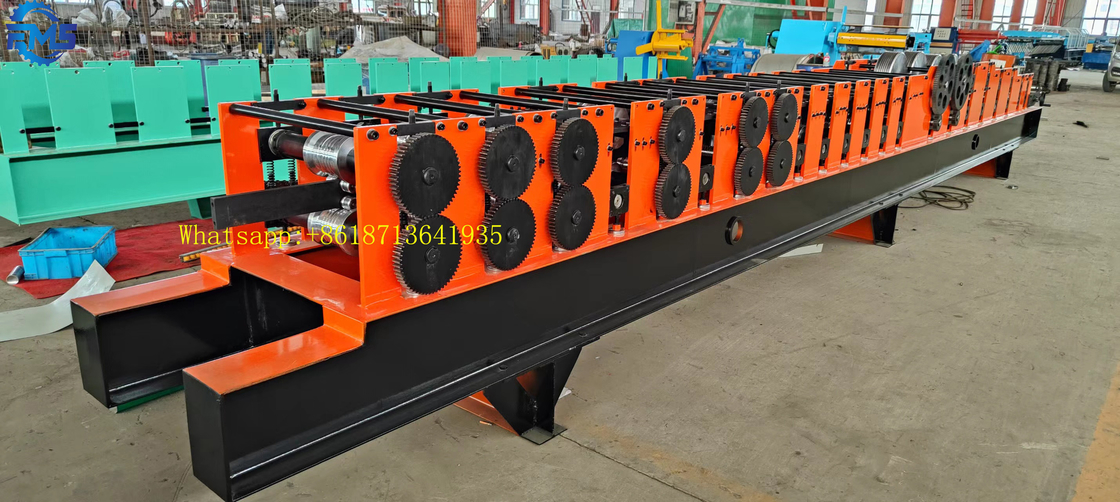

Tube And Pipe Downpipe Roll Forming Machine Making Production Line

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

Specification

Suitable to process	Color steel plate, galvanized sheet,aluminum coils and etc.
Roller station	16 rows
Feeding width of material	330mm
Thickness of feeding material	1.2-2.5mm
Productivity	6-12m/min
Rollers' material	45# steel,Hot treatment hardness HRC55º-57º
Diameter of shaft	66mm
Weight	About 4.0 T
Size	8.01.351.4m
Voltage	380V 50Hz 3Phase
Main motor power	5.5kw
Hydraulic cutting power	4 kw
Mould cutting material	Cr12 steel treatment hardness HRC60º-62º

Application

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms and delivery

40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
