Do domu > produkty > Maszyna do formowania rolek paneli ściennych >

Car Carriage Panel 380V Custom Roll Former Cold Box Panel Making

car carriage panel custom roll former

380v custom roll former

box panel making rollform equipment

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Car Carriage Panel 380V Custom Roll Former Cold Box Panel Making

Szczegóły produktu

Nazwa produktu:

Panel wózka samochodowego Maszyna do formowania na zimno Maszyna do produkcji paneli skrzynek

Kluczowe punkty sprzedaży:

Wysoki poziom bezpieczeństwa

Materiał rolkowy:

Stal Gcr15 poddana obróbce CNC, powierzchnia platerowana twardym chromem;

Zdolność produkcyjna:

8-12m/min

Woltaż:

380 V.

Gwarancja na podstawowe komponenty:

1 rok

Typ płytek:

stal

Średnica rolki:

Φ70mm

Podkreślić:

car carriage panel custom roll former

380v custom roll former

box panel making rollform equipment

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Uzyskaj najlepszą cenę

Wideo

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Uzyskaj najlepszą cenę

Wideo

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Uzyskaj najlepszą cenę

Wideo

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

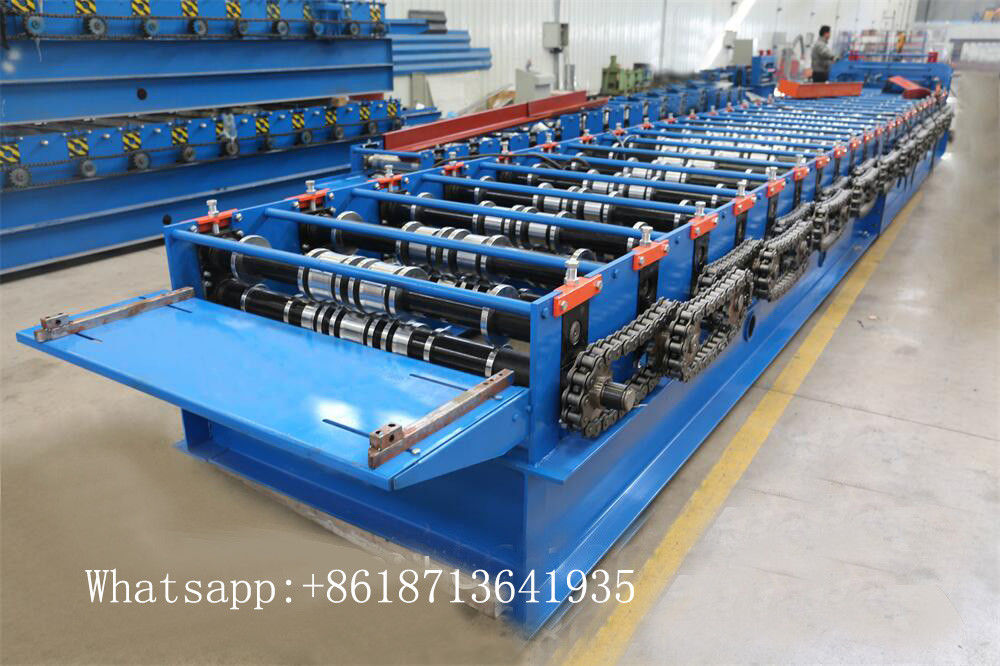

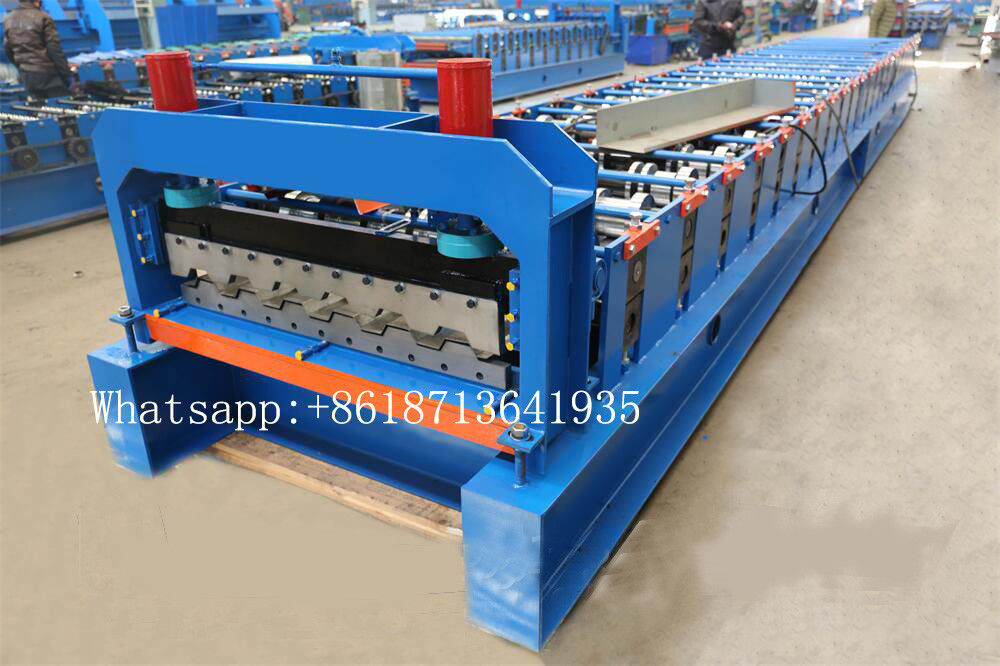

Car Carriage Panel Cold Roll Forming Machine Box Panel Making Machine

cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate,and help to enhance the image of the all project.

Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Specification

No.		main parameter of car panel roll forming machine
1		Suitable to process	Color steel plate
2		Width of the plate	1220mm
3		Rollers	14-18rows
4		Dimensions	11.61.61.5m
5		Power	7.5+4kw
6		Thickness of the plate	0.3-0.8mm
7		Productivity	8-12m/min
8		Diameter of the roller	Φ70mm
9		Weight	About 6.8 T
10		Voltage	380V 50Hz 3phases
11		Rolling material	Carbon Steel 45#
12		Material of the cutting plate	Cr12
13		Processing precision	Within 1.00mm
14		Control system	PLC control
15	Side panel of machine		14mm
16	Main structure of the machine		300 H steel

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
