Name: Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: FMS-24.3-262.5-1050
Price: 28,000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek dachowych >

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

aluminum coil trapezoidal roll forming machine

converter trapezoidal roll forming machine

converter trapezoidal sheet roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

FMS

Orzecznictwo:

CE, ISO, TUV

Numer modelu:

FMS-24.3-262.5-1050

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Opis produktu:

Maszyna do formowania rolek trapezowych

Szybkość formowania rolek:

15-20 m/min

Materiał rolkowy:

Stal nr 45, pokryta chromem

Moc silnika stacji hydraulicznej:

4KW

System sterowania:

Delta PLC i konwerter

Główna moc silnika:

5,5 kW

Woltaż:

380 V 50 Hz 3 fazy

Tworzywo:

Cewki ze stali kolorowej, cewki ze stali ocynkowanej, cewki z aluminium

Podkreślić:

aluminum coil trapezoidal roll forming machine

converter trapezoidal roll forming machine

converter trapezoidal sheet roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

Główna maszyna jest naga, skrzynka sterownicza komputera jest zapakowana w plastik.

Czas dostawy

30 dni roboczych

Zasady płatności

T/T, Western Union, Moneygram, L/C, D/A, D/P

Możliwość Supply

30 zestawów miesięcznie

Powiązane produkty

Wideo

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Uzyskaj najlepszą cenę

Wideo

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Uzyskaj najlepszą cenę

Wideo

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Trapezoidal Metal Roof Tile Roll Forming Machine

The trapezoidal roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The trapezoidal roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production

speed of this line is adjustable from 0 to 15 meters per minute, and the normal operation speed is 8 to 10 meters per minute.

3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported

high-quality components with stable performance and high reliability materials applicable to high technical parameters.

Profile Drawing

Equipment Detailed Parameters

Suitable Raw Material
Weight	About 5000kgs
Size	About 8m x 1.2m x 1.3m (length x width x height)
Material	pre-painted steel coil, galvanized steel coil, galvalume steel coil
Thickness	0.3-0.8mm
Coil width	1220mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	18
Diameter of forming rollers shafts	70mm
Roll Forming Speed	0-15m/min
Forming rollers material	45# steel with CNC machining and surface is being hard chrome
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	DELTA PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 4kw
Electric voltage	According to customer’s requirement

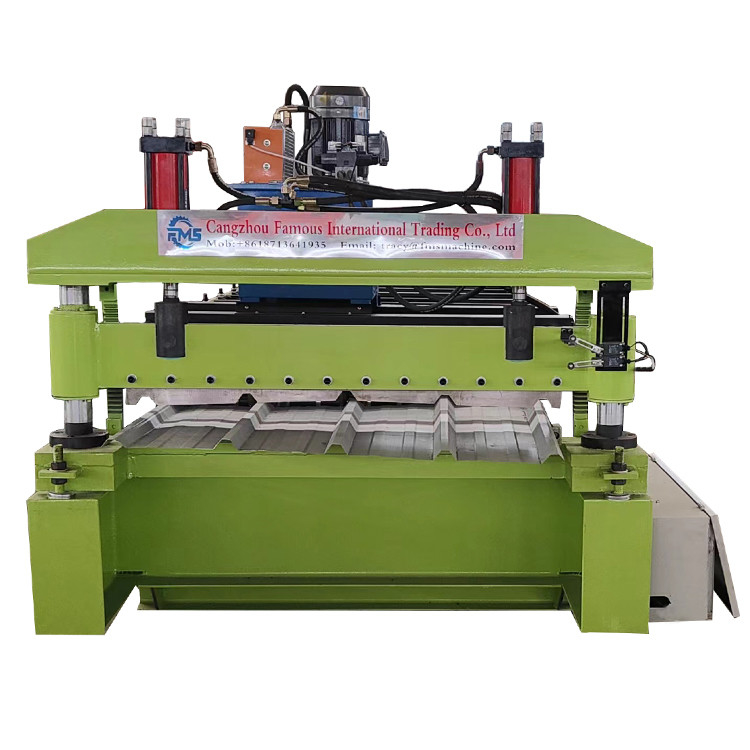

More machine pictures

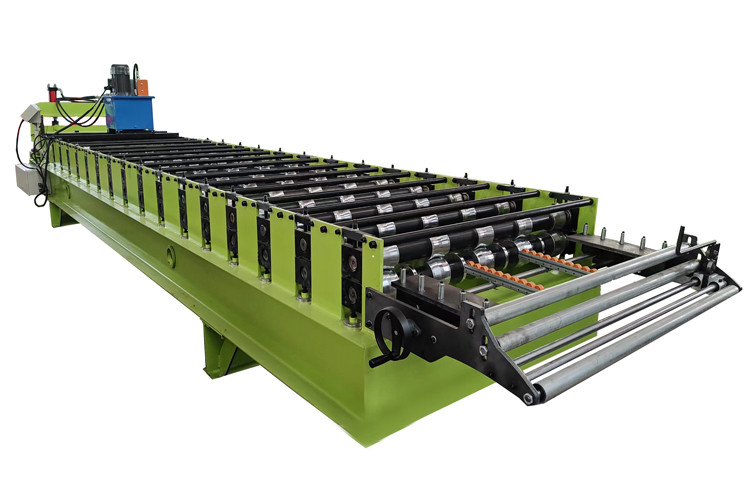

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 1

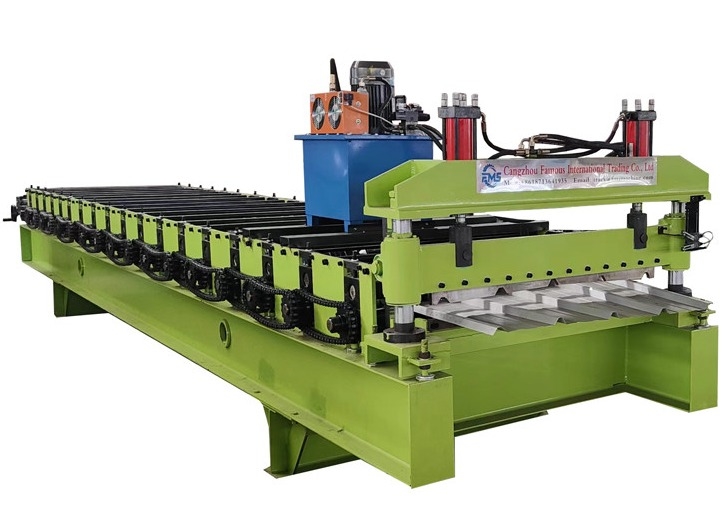

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 2

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

The Delivery Time: 30 working days after the down payment is received.
