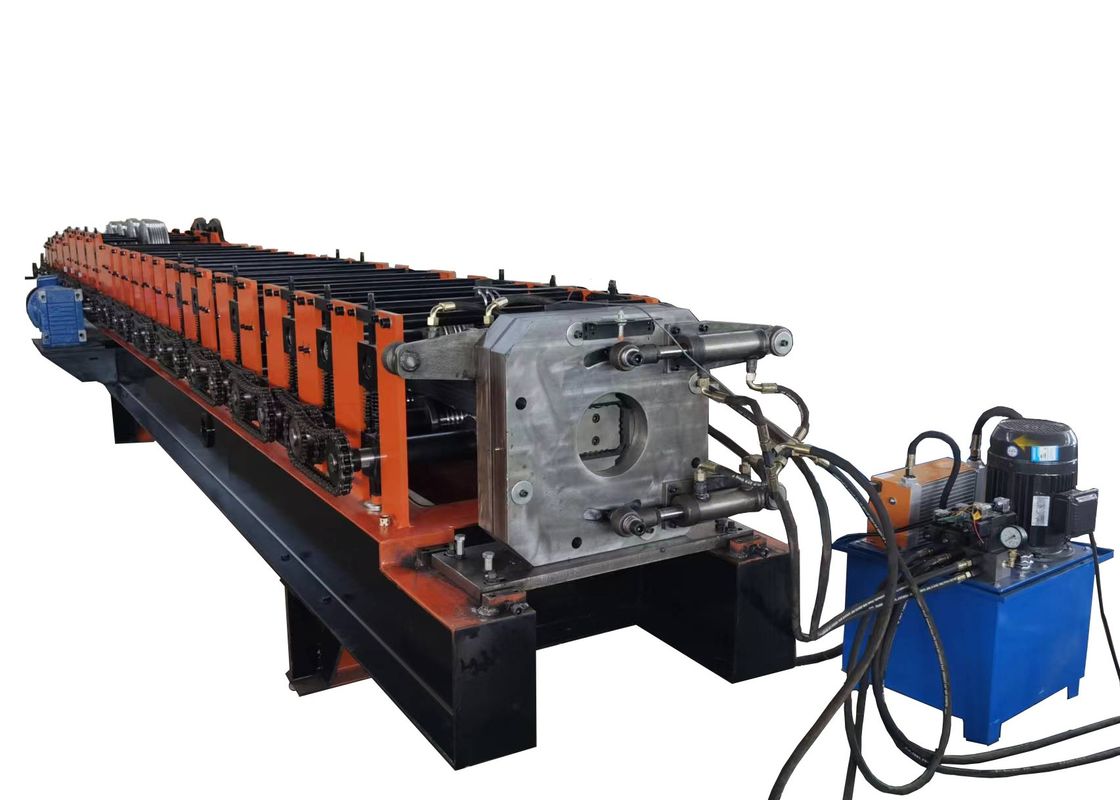

Name: Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rura spustowa
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control

gl down pipe roll forming machine

hydraulic down pipe roll forming machine

3 phases downspout machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU Famous

Orzecznictwo:

ISO CE

Numer modelu:

Rura spustowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Hydrauliczna maszyna do formowania rolek z rurą spustową System sterowania PLC

Surowiec:

GL, GI, PPGI

Woltaż:

380 V 50 Hz 3 fazy

System sterowania:

PLC

Zapewniona obsługa posprzedażna:

Inżynierowie dostępni do obsługi maszyn za granicą, wsparcie techniczne wideo, wsparcie online, inst

Gwarancja:

2 lata

Grubość materiałów:

0,4-0,6 mm

Stacja rolkowa:

Moc silnika:

7,5 kW

Pompa hydrauliczna:

4 kW

Podkreślić:

gl down pipe roll forming machine

hydraulic down pipe roll forming machine

3 phases downspout machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Hydraulic cutting downspout roll forming machine PLC control system

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries.

Profile Drawing

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.4 mm - 0.6 mm
3	Working Speed	8-10 m/min
4	Roller Station	22 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

The equipment is controlled to PLC control, and multiple safety protection is made during normal production. The bed is welded with steel plates. And make a fire treatment to eliminate internal stress and avoid deformation of the fuselage. The material of the roll axis is 40CR, and the quality is adjusted, and the hardness is HB280. The material of the molding mold is GCR15, quenching treatment, hardness: HRC56-62 ° C.

Application

Collect the rainwater of the roof and concentrate to the rainwater pipe paved below the ground. The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.

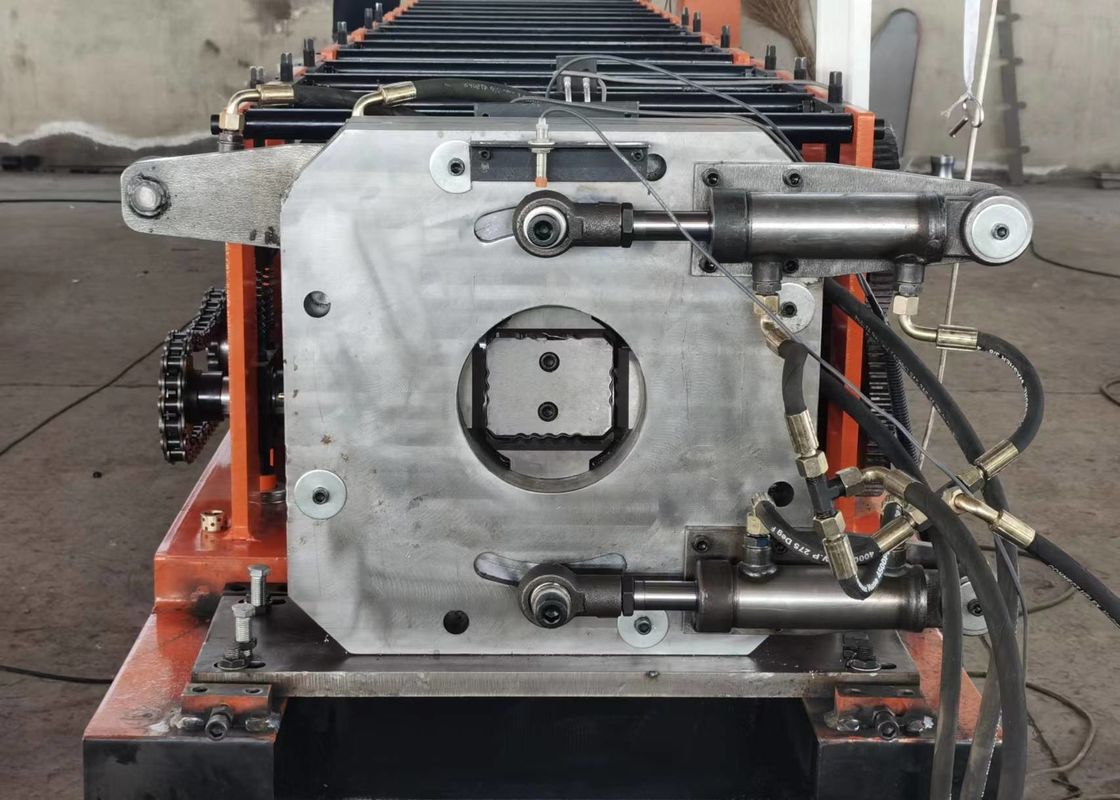

Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control 1
