Name: 3 Phases Shutter Roll Forming Machine For Flat And Curved Slats
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: drzwi żaluzjowe
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

3 Phases Shutter Roll Forming Machine For Flat And Curved Slats

3 phases shutter roll forming machine

curved slats shutter roll forming machine

gl roller shutter door forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

drzwi żaluzjowe

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolet drzwiowych do listew płaskich i zakrzywionych

Moc cięcia:

4KW

Woltaż:

380 V 50 Hz 3 fazy

Typ cięcia:

hydrauliczny

Rama korpusu maszyny:

żeliwna konstrukcja pionowa

Podstawowe komponenty:

Silnik, łożysko, przekładnia, pompa, PLC

Tryb cięcia:

automatyczne cięcie śledzące

System sterowania:

PLC

Podkreślić:

3 phases shutter roll forming machine

curved slats shutter roll forming machine

gl roller shutter door forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

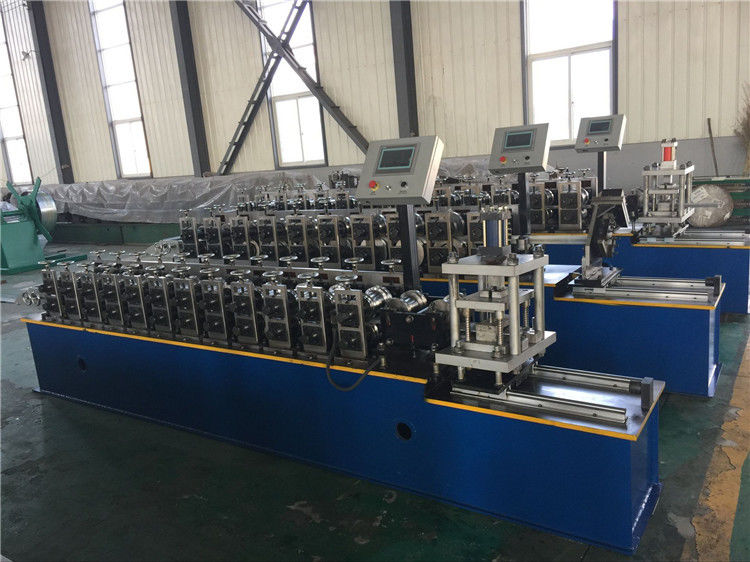

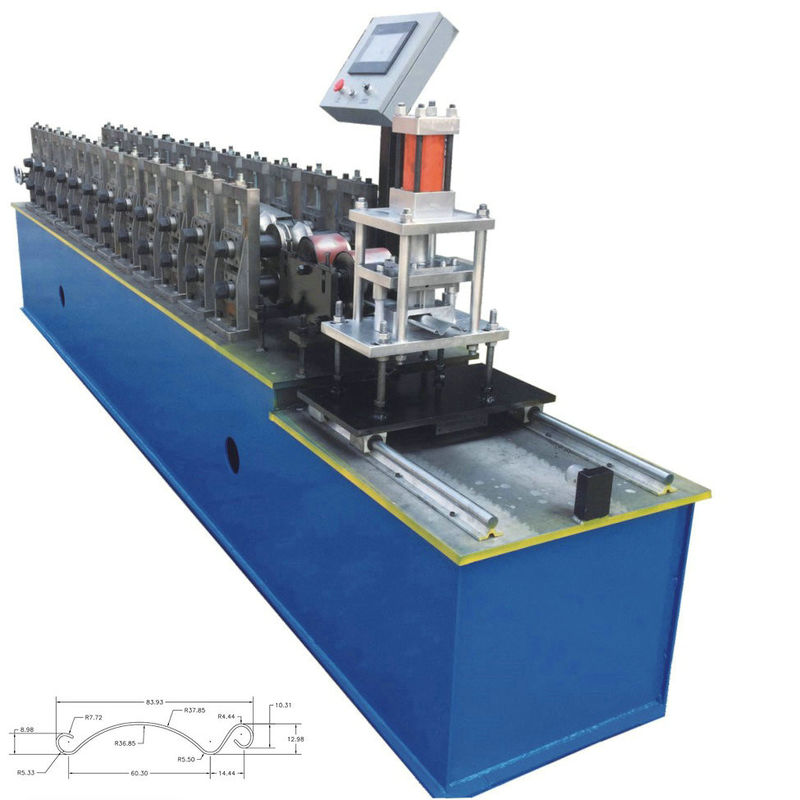

Roller Shutter Door Roll Forming Machine For Flat And Curved Slats

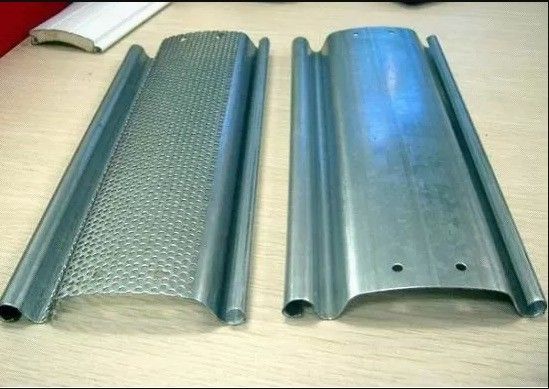

For the roller shutter door making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.7-1.4mm, the shape will be design by your demand.
The shutter door is separated from the wall by the action of the wall, which consists of the curtain plate, the seat plate, the guide rail, the bearing, the reel, the box, the control box, the rollier shutter door machine, the stopper, the lintel, the manual quick release switch, And insurance devices and other parts of the composition, generally installed in the inconvenience to use the wall separated parts. Rolling doors for commercial facade, garage, shopping malls, hospitals, factories and mines and other public places or residential. Especially the larger openings, inconvenience to install the ground door of the place to play a convenient, fast opening effect.

Specification

No.	Item	Description
1	Raw material	galvanized steel
2	Material thickness	0.7-1.2mm (depends on customer's request)
3	Machine work sped	20m/min(8pcs/min,2.5m/pcs)
4	Rolling station	12 stations
5	Roller material	GB-Cr12
6	Transmission	by gear
7	Drive motor	4kw
8	Bearing brand	Harbin

3 Phases Shutter Roll Forming Machine For Flat And Curved Slats 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
