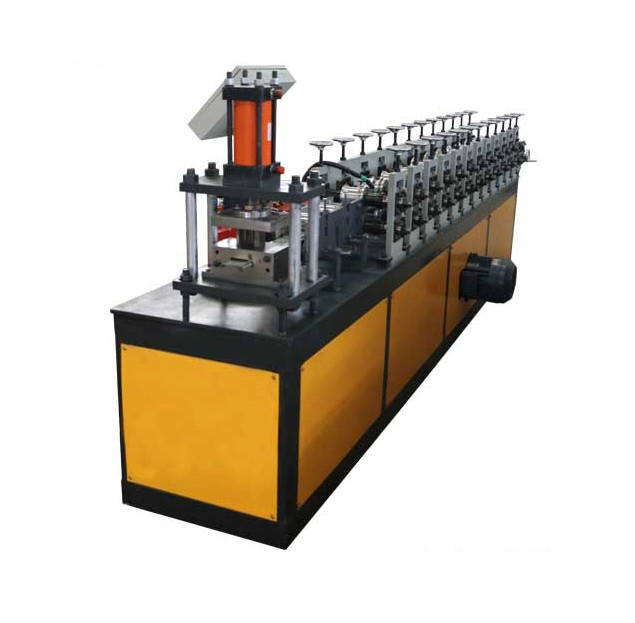

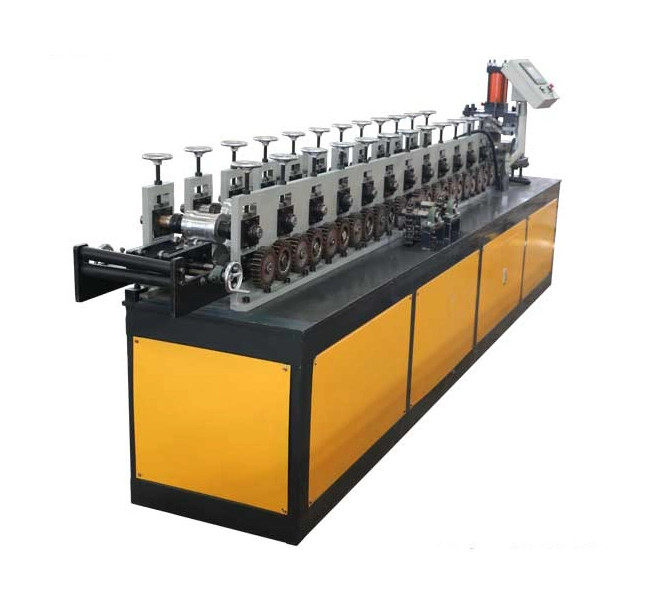

Name: 0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: drzwi żaluzjowe
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

0.6mm shutter door roll forming machine

gear shutter door roll forming machine

gl shutter door forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

drzwi żaluzjowe

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Producenci automatycznych maszyn do formowania rolek z blachy stalowej

odpowiednia grubość:

0,3-0,6 mm

Woltaż:

380 V 50 Hz 3 fazy

Typ cięcia:

hydrauliczny

Rysunek profilu:

Dostosowane

Podstawowe komponenty:

Silnik, łożysko, przekładnia, pompa, PLC

Tryb cięcia:

automatyczne cięcie śledzące

System sterowania:

PLC

Podkreślić:

0.6mm shutter door roll forming machine

gear shutter door roll forming machine

gl shutter door forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Automatic Steel Sheet Roller Shutter Door Roll Forming Machine Manufacturers

Rolling shutter door machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors. A large number of cold-formed steels are also used in various keels and decorative strips for decoration in the construction industry. There are many types and specifications of cross-sections required. The materials used include galvanized sheets, color-coated sheets, stainless steel and aluminum alloys.

Specification

General Information	Coil Material	GI/GL
	Coil Thickness	0.6~1.2MM
	Coil Width	---
	Speed	15-20M/MIN
	Voltage	As Customer's Request
Roll Forming Unit	Roller Station	12
	Driving Motor	5.5KW
	Shaft Diameter	50mm Solid
	Shaft Material	45# Hard Steel
	Roller Material	Cr12
	Under Frame	Square Tube Welded
	Sidewall Thickness	Memorial Archway Type
	Transmission	Gear
	Feeding Device	1 Set
Cutting Unit	Cutting Type	Hydraulic Non-stop TO Cut
	Hydraulic Pump Power	3KW
	Cutting Die Material	Cr12Mov
	Hydraulic Oil	46# Abrade Oil
Control Unit	Control Method	PLC
	Length Control	Encoder
	Operation	Touch Screen
	Language	Chinese & English

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
