Name: Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rura spustowa
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi

0.3mm downspout forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU Famous

Orzecznictwo:

ISO CE

Numer modelu:

Rura spustowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek rur spustowych ze stali deszczowej Maszyna do produkcji rur spustowych

Specyfikacja materiałów:

Aluminium, aluminium powlekane, ocynkowane i malowane

Woltaż:

380 V 50 Hz 3 fazy

System sterowania:

PLC

Grubość:

0,3 MM DO 0,8 MM

Gwarancja:

1 rok

Główna moc silnika:

7,5 kW

Moc stacji hydraulicznej:

4 kW

Szerokość karmienia:

398 mm

Szerokość okładki:

Model nr Wlfm89-118 ma 118 mm

Podkreślić:

0.3mm downspout forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

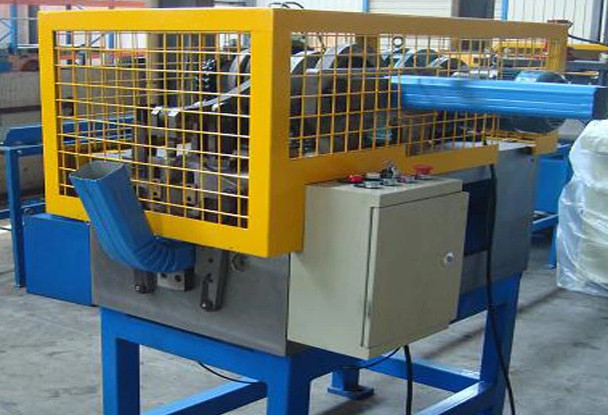

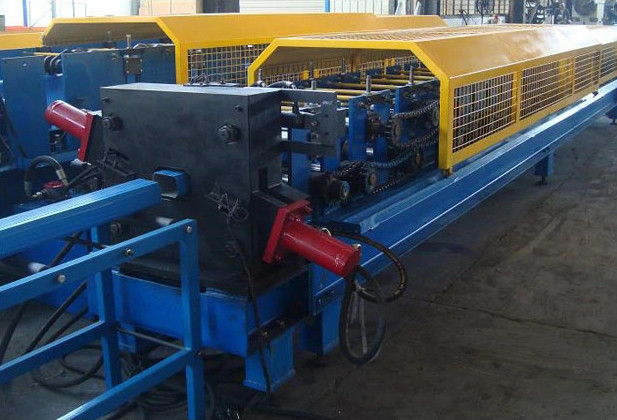

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.

Specification

Item	Description
Material Spec	Aluminum, coated aluminum, galvanized and painted galvanized steel sheet
Thickness	0.3 mm to 0.8mm
Main motor power	7.5 kw
Hydraulic station power	4 kw
Feeding width	398mm
Cover width	Model# WLFM89-118 is 118mm
Coil stress	Q235 Mpa (33KSI); maximum stress yield is Q345Mpa (50KSI)
Roll forming Speed	10~12 m/min
Cutting Tolerance	≤±2mm
Manual Uncoiler	Max. Capacity: 3000kgs
Manual Uncoiler	Roll-formed and length-set cutting

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
