Name: Metal Gl Down Pipe Roll Forming Machine Steel Rain Gutter Making 22 Stations
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rura spustowa
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

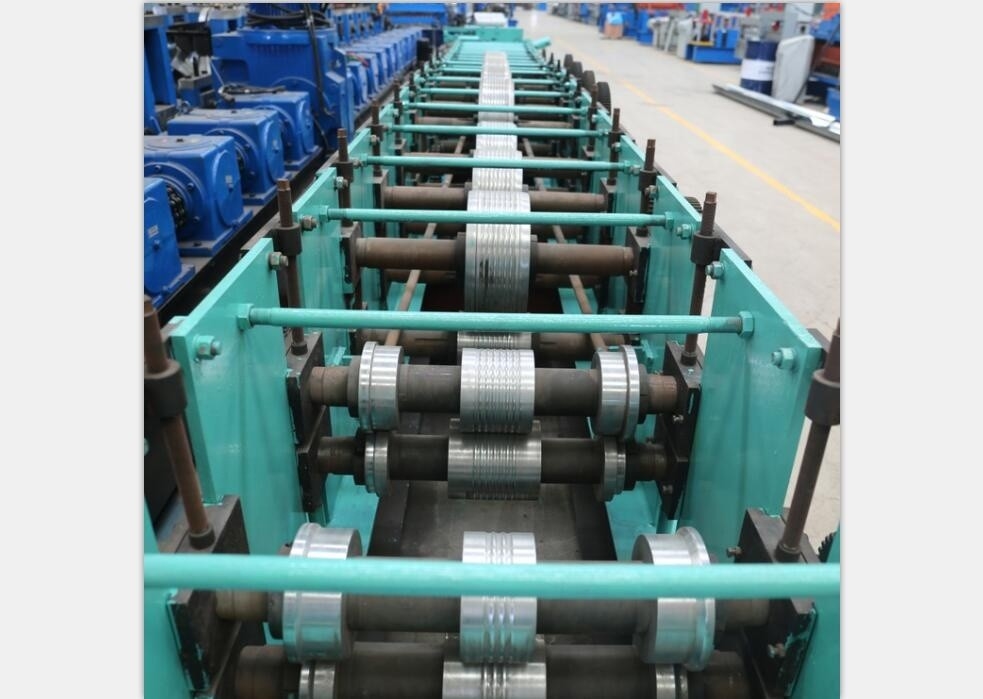

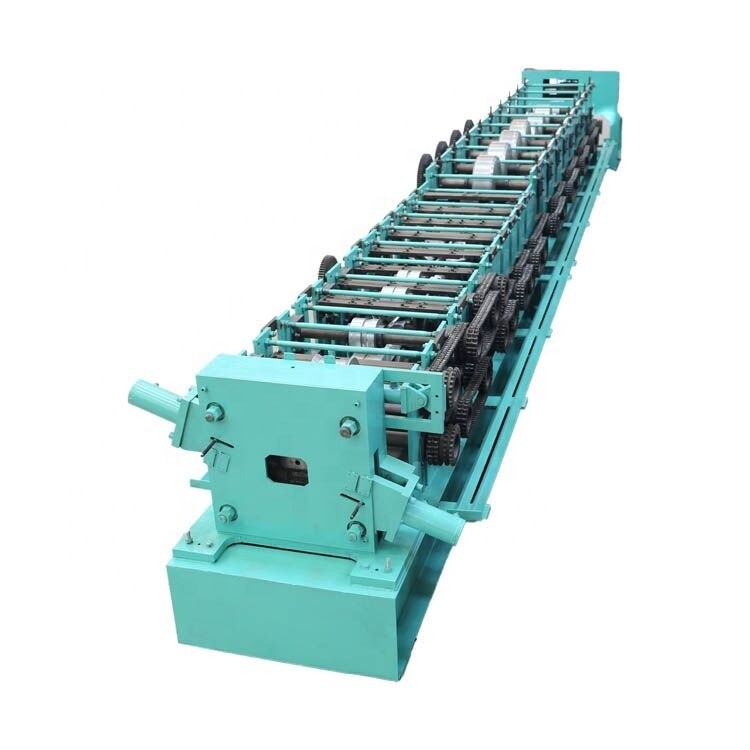

Metal Gl Down Pipe Roll Forming Machine Steel Rain Gutter Making 22 Stations

gl down pipe roll forming machine

plc down pipe roll forming machine

22 stations downpipe machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU Famous

Orzecznictwo:

ISO CE

Numer modelu:

Rura spustowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek metalowych rur spustowych Maszyny do produkcji stalowych rynien deszczow

Surowiec:

GL, GI, PPGI

Woltaż:

380 V 50 Hz 3 fazy

System sterowania:

PLC

Zapewniona obsługa posprzedażna:

Inżynierowie dostępni do obsługi maszyn za granicą, wsparcie techniczne wideo, wsparcie online, inst

Gwarancja:

1 rok

Zdolność produkcyjna:

5-12 m/min

Wymiar (L*W*H):

7,8 m*1,4 m*1,3 m

Moc silnika:

Stal wysokiej jakości Cr 12

Pompa hydrauliczna:

Belka H 350 mm

Podkreślić:

gl down pipe roll forming machine

plc down pipe roll forming machine

22 stations downpipe machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

Metal Downspout Pipe Roll Forming Machine Steel Rain Gutter Making Machinery

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries. Our roll forming line of downspout machines run copper, steel, or aluminum. These are also ideal for piping for the HVAC industry for small sizes ductwork.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Roller material	45#steel Chrome Plated
3	Production Capacity	5-12m/min
4	Roller Station	22 Stations
5	Roller stations	12-20rows
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Hydraulic Station Power	4 KW
9	Power Supply	380V50Hz3Ph
10	Cutting Accuracy	± 2 mm
11	Raw material	PPGI PPGL GI GL
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
