Name: Square 0.6mm PPGI Down Pipe Roll Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Rura spustowa
Price: 16,500.00 USD
Availability: InStock

Do domu > produkty > maszyna do formowania rolki rurowej >

Square 0.6mm PPGI Down Pipe Roll Forming Machine Full Automatic

0.6mm down pipe roll forming machine

ppgi down pipe roll forming machine

cold metal shaping square downspout machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU Famous

Orzecznictwo:

ISO CE

Numer modelu:

Rura spustowa

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek kwadratowych rur spustowych W pełni automatyczna

Zdolność produkcyjna:

15 m/min (nie obejmuje czasu cięcia)

Woltaż:

380 V 50 Hz 3 fazy

Wymiar (L*W*H):

Około 2 m * 1,5 m * 1,5 m

Grubość rolki:

0,4-0,6 mm

Gwarancja:

1 rok

Materiał rolkowy:

45 # stal chromowana

Odpowiedni materiał:

PPGI PPGL Aluminium

Podkreślić:

0.6mm down pipe roll forming machine

ppgi down pipe roll forming machine

cold metal shaping square downspout machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Uzyskaj najlepszą cenę

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Uzyskaj najlepszą cenę

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Uzyskaj najlepszą cenę

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-317-2016816

Skontaktuj się teraz

Opis produktu

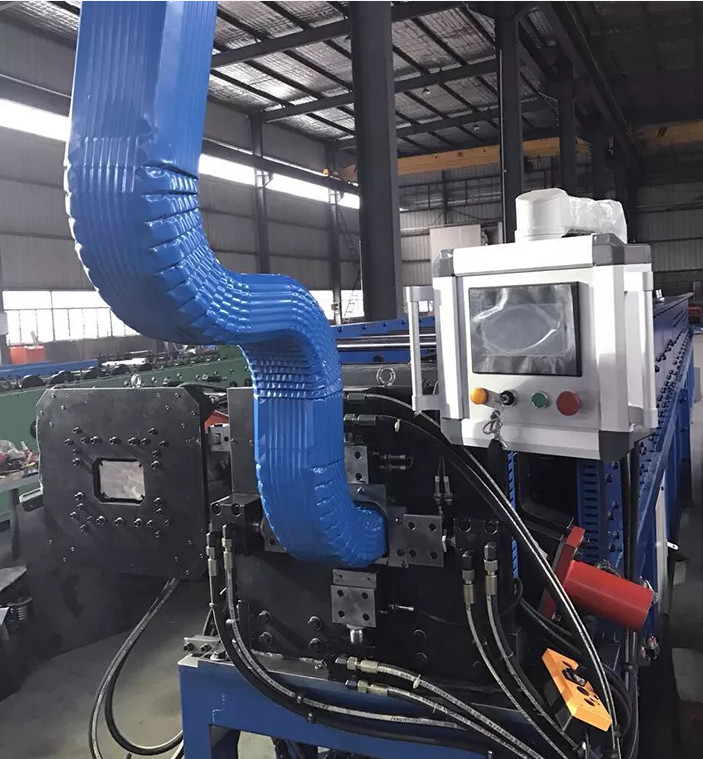

Square Downspout Pipe Roll Forming Machine Full Automatic

Uses: Collect roof rainwater and concentrate it on the rainwater pipes laid below the ground.

Usual format: Common specifications for round tubes are 40mm, 50 mm, 75 mm, 90 mm, 110 mm, 150 mm, 200 mm, 250 mm, 315 mm, 400 mm, 500 mm, etc. Common specifications of the square tube are 80mm*55mm, 80mm*63mm, 80mm*100mm, etc.

Specification

No.	Item	Description
1	Coil width	According to the final profile
2	Rolling speed	0-15m/min
3	Rolling thickness	0.4-0.6mm
4	Control system	PLC (Panasonic) as list in the note
5	Un Coiler	3T manual de-coiler

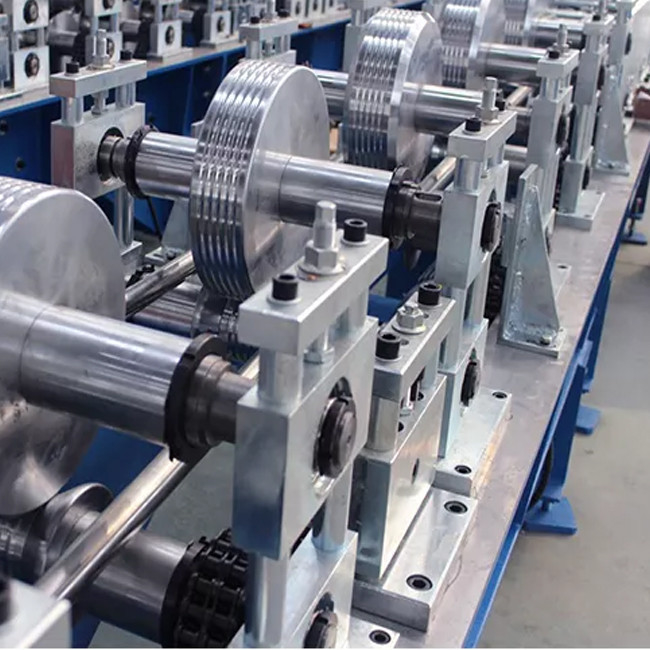

6	Roller Stations	20 stations
7	Roller Material	ASTM1045 chrome plated surface with chrome
8	Shaft Material and DIA	￠65mm, material:45# with quenching and tempering
9	Post cutting	Machine adopts hydraulic cutting system
10	Material Of Cutting	Cr12, 58-62 HRC hardness
11	Maim Motor Power	5.5kw
12	Hydraulic Station Power	5.5kw
13	Hydraulic pressure	12-16Mpa adjustable
14	Structure Of The Stations	Wall panel
15	Bending machine	With Main machine together
	Full Automatic Square Downspout Pipe Roll Forming Machine

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
