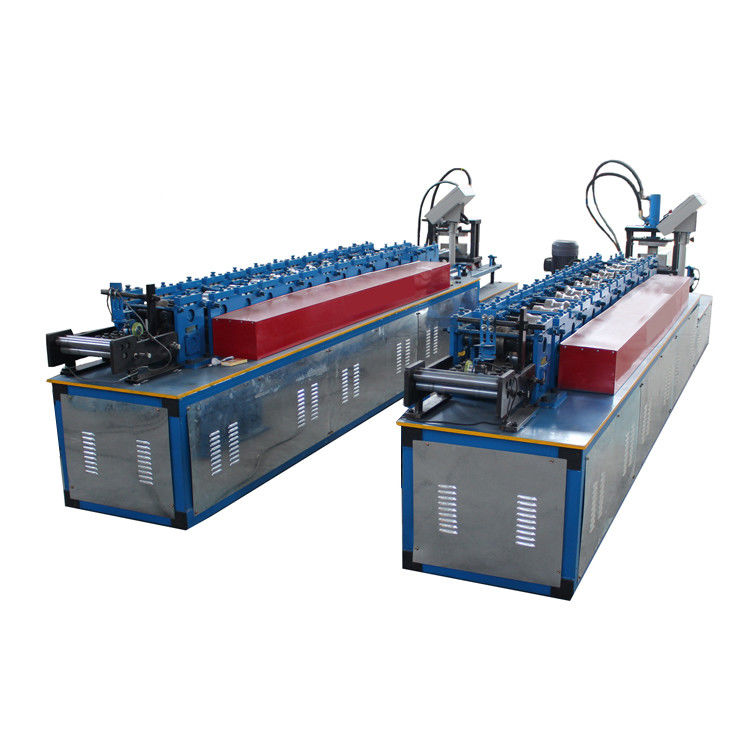

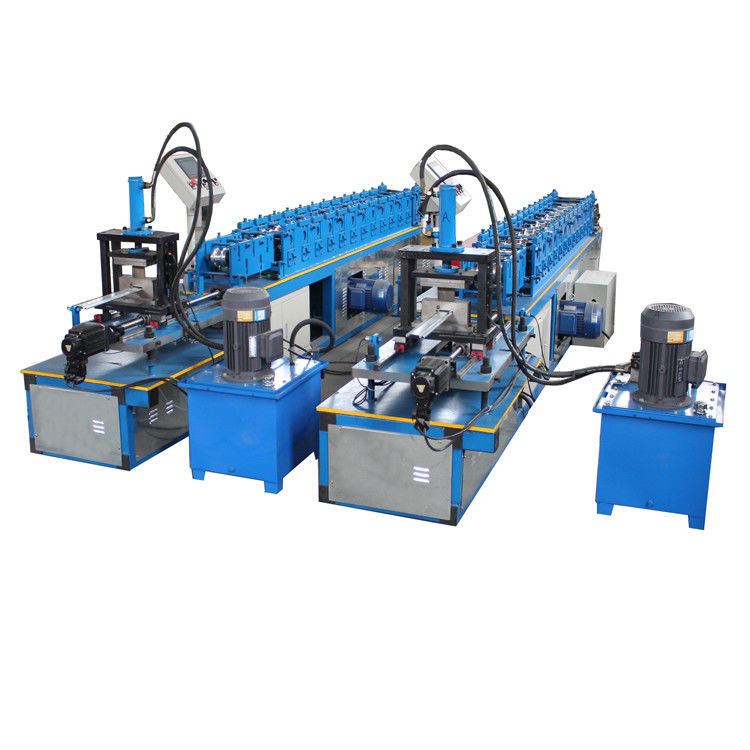

Name: Zinc Aluminium Shutter Door Roll Forming Machine 0.12-0.4mm Thickness
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Listwa migawki
Price: 12000.00 USD
Availability: InStock

Do domu > produkty > Maszyna do formowania rolek drzwi żaluzjowych >

Zinc Aluminium Shutter Door Roll Forming Machine 0.12-0.4mm Thickness

zinc shutter door roll forming machine

0.12mm shutter door roll forming machine

aluminium shutter door forming machine

Miejsce pochodzenia:

Chiny kontynentalne

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Numer modelu:

Listwa migawki

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek drzwi Ondulado do aluminium cynkowego o grubości 0,12-0,4 mm

Surowiec:

Galvalume, ocynkowane, PPGI

Typ cięcia:

Automatyczne cięcie hydrauliczne

Zdolność produkcyjna:

8-15 m/min

Woltaż:

3 fazy 380 V 50 Hz lub zgodnie z wymaganiami

Podstawowe komponenty:

Silnik, inne, PLC

Materiał wału:

45# stal

Materiał z ostrza:

Kr 12 Mov

Podkreślić:

zinc shutter door roll forming machine

0.12mm shutter door roll forming machine

aluminium shutter door forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

20' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Uzyskaj najlepszą cenę

Wideo

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Uzyskaj najlepszą cenę

Wideo

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Uzyskaj najlepszą cenę

Wideo

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Metal Rolling Shutter Door Slats Roll Forming Machine Speed 20-30m/Min

The shutter door is a door or window that consists of a number of horizontal bars (or sometimes strip or mesh systems) that are hinged together. On the door, the action may be maneuverable. It provides weather protection and protects windows from vandalism and burglary.

Rolling shutter doors have many applications, including vans, garages, kitchens, schools, prisons and warehouse doors. In some parts of the world, rolling shutters are subsidized by local governments due to inherent safety concerns. In areas that are frequently exposed to inclement weather, the rolling door is used as an insulation method and the window can be protected from hail damage.

Specification

Suitable material	Color steel sheet , galvanized steel sheet,
Main motor power	5.5 KW with Cycloidal reducer
Thickness of material	0.3mm~0.8mm
Hydraulic station power	3KW(Lichao,Shanghai)
Hydraulic oil	36#,40#
Diameter of principal axis	50mm
Material expand width	140-180mm
Electric tension	380V 3phase 50HZ or as the customer's requirements
Material of roller	Cr12 steel quenched
Processing speed	15-20m/min
Processing precision within	About 10m
Material of cutting blade	Cr12Mov with quenched treatment
Kind of drive	Chain
Roller station	13 Roller Station

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
