0.3mm Custom Roll Forming Machine Metal Tile Panel Roof Sheet Making

0.3mm custom roll forming machine

plc custom roll forming machine

0.3mm double layer roll forming machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

CANGZHOU FMS

Orzecznictwo:

ISO CE

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

Maszyna do formowania rolek metalowych dwuwarstwowych paneli Maszyna do produkcji blach dachowych

Specyfikacja:

8500 mm * 1500 mm * 1500 mm (dł. * szer. * wys.)

System sterowania:

Sterowanie PLC

Używać:

Około 9 ton

Waga maszyny:

Automatyczny

Kolor maszyny:

0,3-0,8 mm

Materiał rolkowy:

45# stal

Moc maszyny:

5,5 kW + 3 kW

Podkreślić:

0.3mm custom roll forming machine

plc custom roll forming machine

0.3mm double layer roll forming machine

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestaw

Cena

negotiable

Szczegóły pakowania

40' FLC

Czas dostawy

30 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P

Możliwość Supply

20 zestawów miesięcznie

Powiązane produkty

Wideo

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Uzyskaj najlepszą cenę

Wideo

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

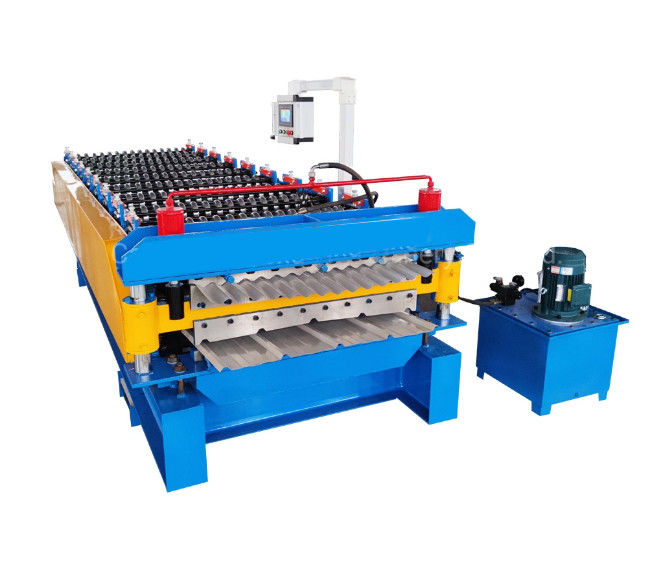

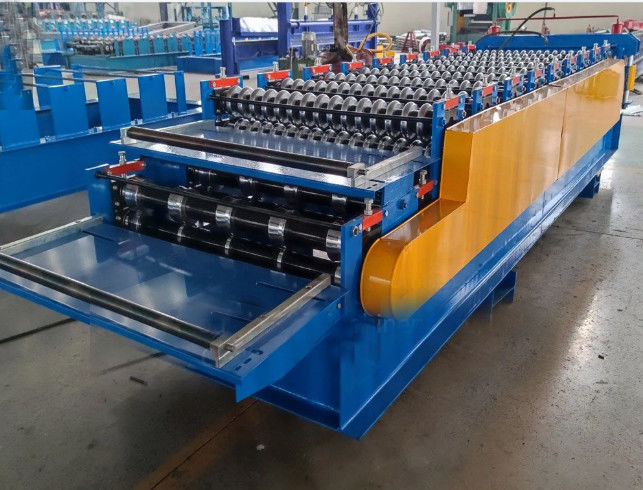

Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine

Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt 16mm side wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

Specification

IBR Roofing Sheet Iron Steel Corrugated Roof Sheeting Metal Double Layer Tile Panel Roll Forming Machine
Main motor power	5.5 kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	9 groups for corrugated sheet and 11 groups for IBR sheet
Raw material	0.3-0.8mm
Coil width	1000mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 6 ton
Size of machine	About 6500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. (Also depend on client)
Computer operating panel	touching screen
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
